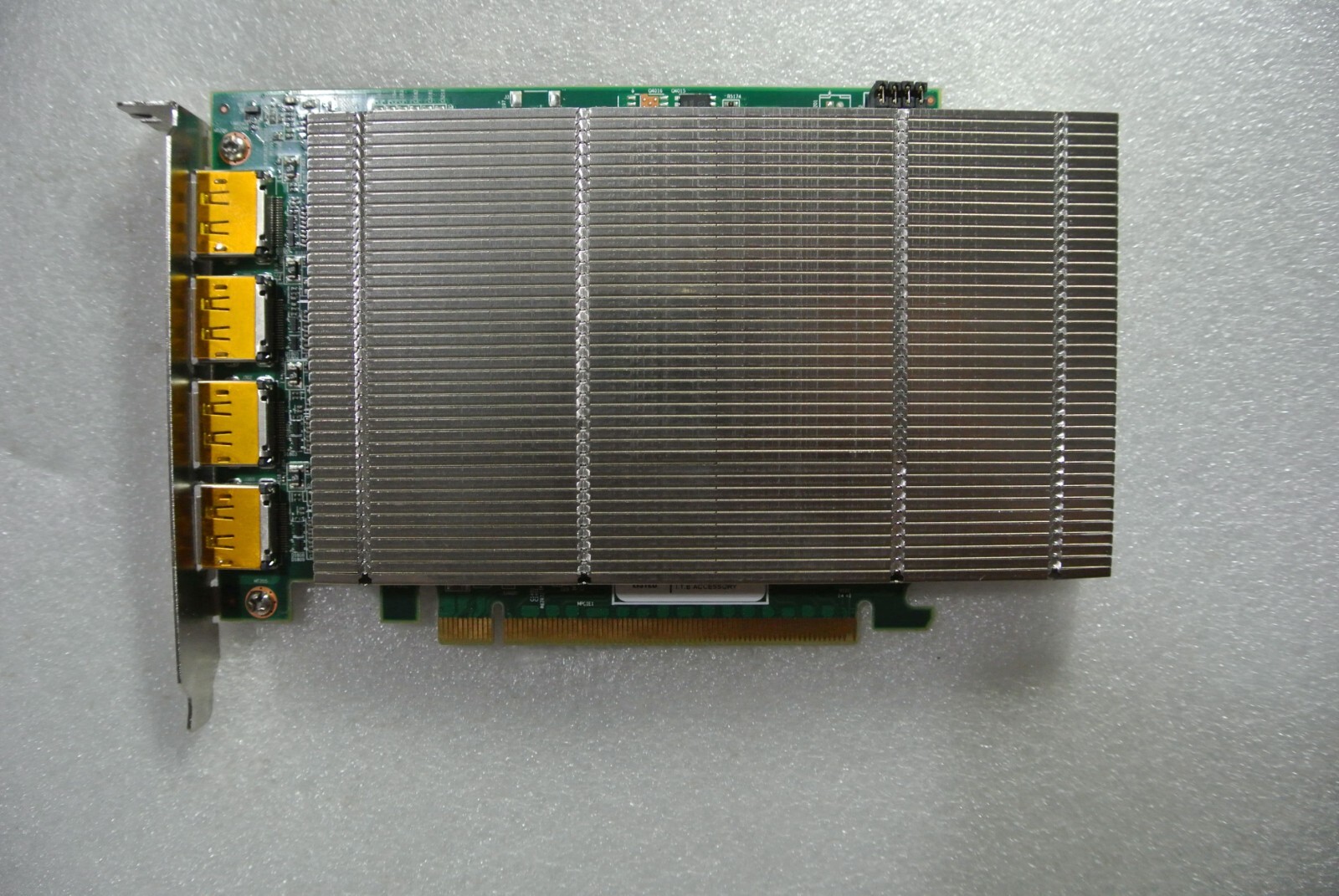

DATAPATH IMAGEDP4 4-PORT DISPLAYPORT GRAPHICS CARD FOR VIDEO WALL E345219 170
***THIS ITEM IS USED
USED, WORKING, GOOD CONDITION.
TheImageDP4 4-Port DisplayPort Graphics CardfromDATAPATHis a high-performance, 4-channel graphics card, featuring a single, powerful graphics processor with improved memory and PCI Express bandwidths to provide responsive performance at up to double the resolution of previous DATAPATH graphics cards.
Up to 16 ImageDP4 graphics cards can be supported by the DATAPATH display driver, providing a high-resolution Windows desktop comprising up to 64 screens. This ability to present standard Windows applications alongside full frame-rate video on a single high resolution desktop allows the visualization of large amounts of data at once. To complete the integration into a single desktop, all the outputs of the ImageDP4 graphics card are automatically frame-locked across all cards within a system.
The graphics card is optimized for use with the DATAPATH Vision range of capture cards for systems requiring video overlays from a wide range of sources and resolutions. Video windows can be positioned and sized anywhere on the multi-screen desktop, while maintaining full frame rate, true color rendering throughout. Combining the Vision video capture cards with an ImageDP4 graphics display allows the construction of high-end display wall systems.
The ImageDP4 card natively supports four full-sized DisplayPort outputs for the convenience of high resolution, locking cable connectors, and significantly longer cable lengths. Air flow management is optimized through the use of passive cooling, providing high reliability for any multi-screen solution.
PCI Express 2.1 bus interface electronically supporting x4, x8 and x16 lane widths
600 MHz graphics processor with 512MB GDDR5 at 800 MHz
DisplayPort connectors allow full-size, locking cables capable of driving next generation displays
Up to 131.2' (40m) cable support using DATAPATH DPextend modules, powered via the graphics card
DVI support using optional DisplayPort cables and adapters
Passive cooling for high reliability
Projector overlapping supported
Supports Multi-Resolution, different resolutions on each output
Monitor rotation support for landscape and portrait orientation
Supports HDCP on all outputs
Up to 16 cards per system for a maximum of 64 display channels
Compatible with DATAPATH Wall Control software
INCLUDES: (1) DATAPATH IMAGEDP4 4-PORT DISPLAYPORT GRAPHICS CARD ONLY , NOTHING ELSE INCLUDED.
S/N: XXX7000087, 7000086, 7000074
