These DB15 Female Solderless Connectors are used to terminate the connection type of a cable and facilitate commissioning equipment of project. They can easily be connected to a custom length cable as well as create a custom pinout, creating a permanent and durable connection for all applications. These connectors are made with high-quality materials to ensure durability and a long life.
Technical Specifications:

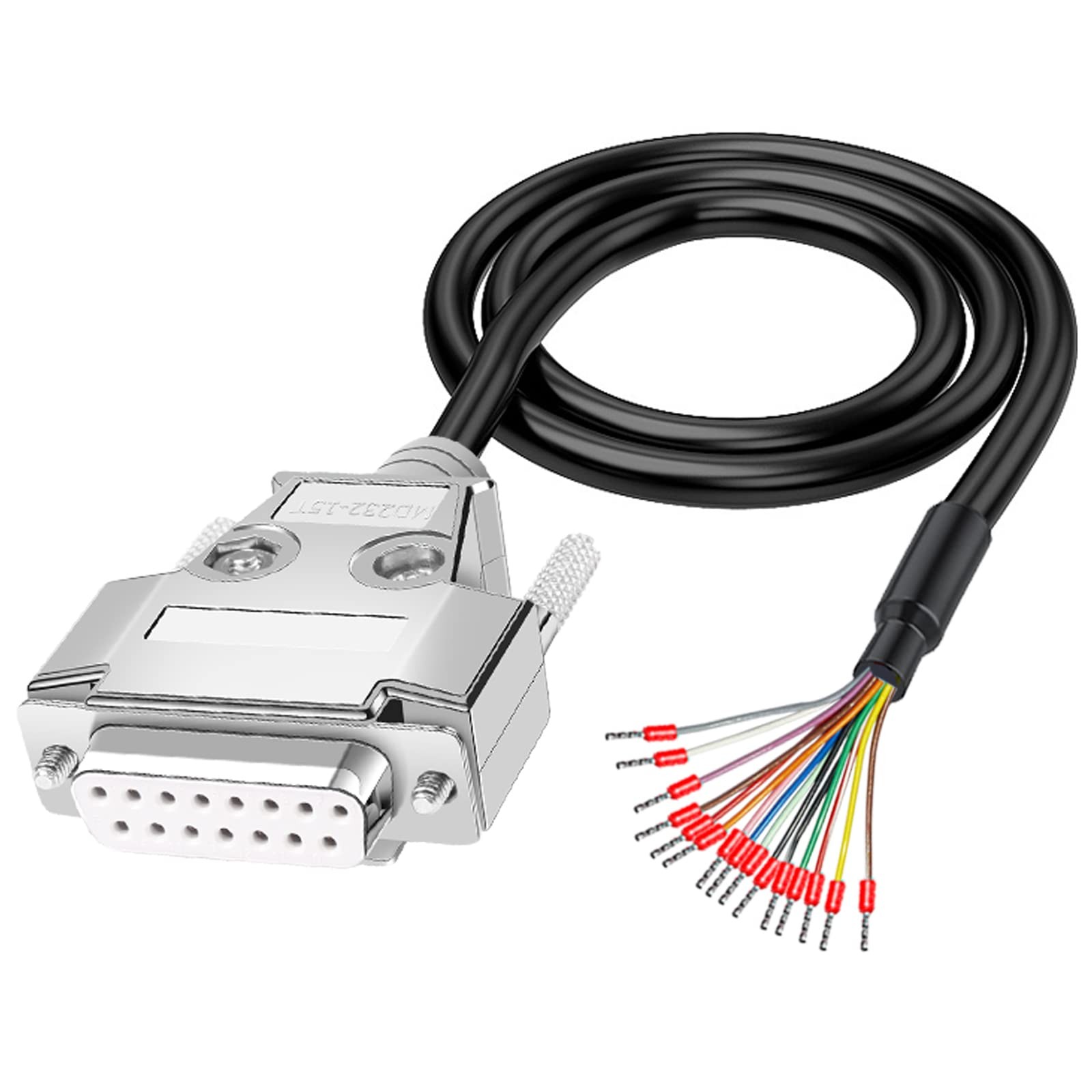

Name: DB15 solderless module with cable
Plug type: female
Connector material: pure copper plated joint
Material: Copper
Housing material: Zinc alloy metal shell
Shell type: Screw lock
Cable Length: 1.5m/5Ft
Cable Specification: 24AWG
Torque: 0.2Nm (1.7Lb-In.)
Thickness: 16mm/0.63″
Application: tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation, etc.
Size: 54 mm×43.5 mm×16 mm/ 2.13″×1.71″×0.63″
Package includes:
1 x DB15 Female Solderless Connectors with 1.5m Bare Wire End Cable
DURABLE: Pure copper plated joints, fine solder joints, resistance to plug, and good to ensure high-quality, durability and a long life.
Stable Transmission: This DB15 Solderless Breakout Connector adopts 24AWG double-layer shielded cable and copper crimp terminals, which has stable signal transmission and good shielding effect.
DB15 line sequence color comparison table: 1. Black; 2. Black and white; 3. Brown; 4. Brown and white; 5. Red; 6. Red and white; 7. Orange; 8. Yellow; 9. Green; 10. Blue; 11. Purple; 12. Gray; 13. White; 14. Pink; 15. Light green.
Zinc Alloy Metal Shell: Anti-pressure; Anti-intreference; Anti-high temperature.
WIDELY APPLICATIONS: It can connect all kinds of rs232/rs485 and other communication protocols devices. Such as computer and tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation and other equipment for communication.
