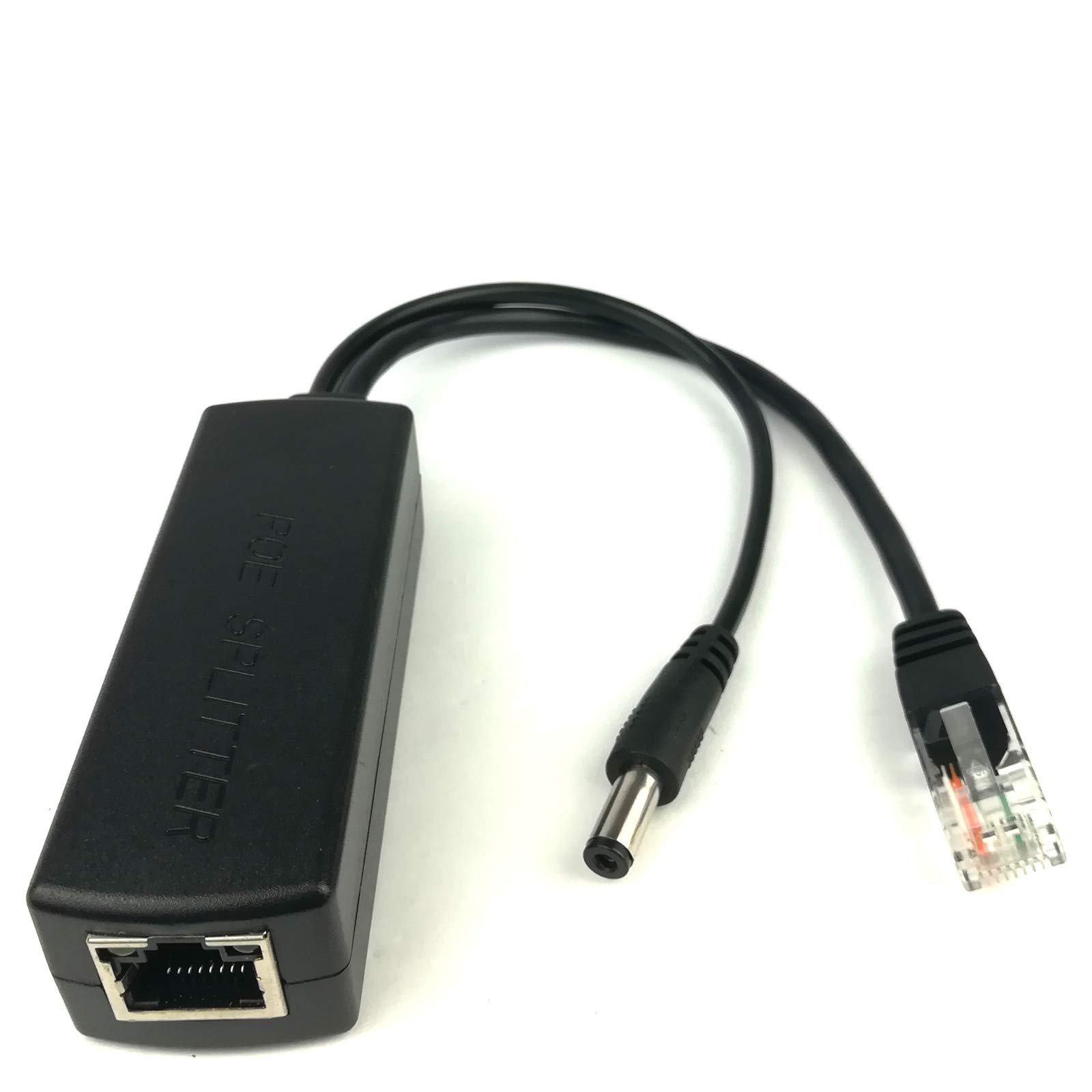

DC 5V 2.4A Active PoE Splitter Power Over Ethernet 802.3af 5.5x2.1mm
DC 5V 2.4A Active PoE Splitter Power Over Ethernet 802.3af 5.5x2.1mm
Description
RJ45 female INPUT Port:
Support the IEEE 802.3af/802.3at the Power over Ethernet PoE Switch
Support 48V Unsolicited Power Over Ethernet PoE Switch
Support 48V Unsolicited Power Over Ethernet PoE Adapter
Specification:
Compliant with IEEE802.3af
Isolation: 2.5kV
Power Input: DC44~57V
Power Output: DC5V 2.4A[inside positive (+) , outside negative (-)]
Data&Power INPUT Port: from RJ45 female (Compliant with IEEE802.3af/at PoE)
Data Output Port: RJ45 Male
Power Output Port: 5.5x2.1mm DC Power Plug
Data Transfer Rate: 10/100Mbps
Devices will be detected before poe input
Power Pin:support both 1/2(+/-),3/6(-/+) or 4/5(+),7/8(-)
Body size: 80 x 27x 22 mm
DC cable length：165mm
RJ45 Modular Plug cable length：155mm
Weight : 55g
Operation Temperatue:-20℃ ~ 45℃
Storage Temperature:-30℃ ~ 70℃
Item Included:
5.5x2.1mm DC 48V to 5V Active PoE Splitter x1
Notice：
Yellow LED(power) will be light up when micro USB connects to the device.
Green LED(data) never light in any circumstances,two reasons are below,
1.This splitter allows data to input and output through its RJ45 port, but no indicator on this splitter indicates the status of the data transfer.
Only one power indicator shows the working status of the POE.
2.due to the cost problem,the network interface component is from the universal components which own two LEDs on the market.
Features
- 5.5x2.1mm DC Plug Active PoE Splitter，48V to 5V 2.4A (Max. 12watt)
- 10/100Mbps Ethernet，Compliant with IEEE802.3af，With 2.5KV isolation
- This POE Splitter is suitable for household IP camera with DC 5V power (as the kind in the photo of the instruction),it does not suit equipments with DC 12V power
- Some managed intelligent Gigabit PoE switches need to set the LAN port of this connected splitter to Manual 100Mb/s mode in the management Settings of switches, otherwise the power supply may work normally but the network connection will not work, such as the following switch, HP 3500-48G-PoE yl Switch (J8693A)
- Please note that Philips changed the size of the DC socket on the Bridge. If you have a v1 Bridge the DC socket is 5.5×2.1mm. If you have a v2 Bridge the DC socket is 5.5×2.5mm, this splitter is not compatible.
