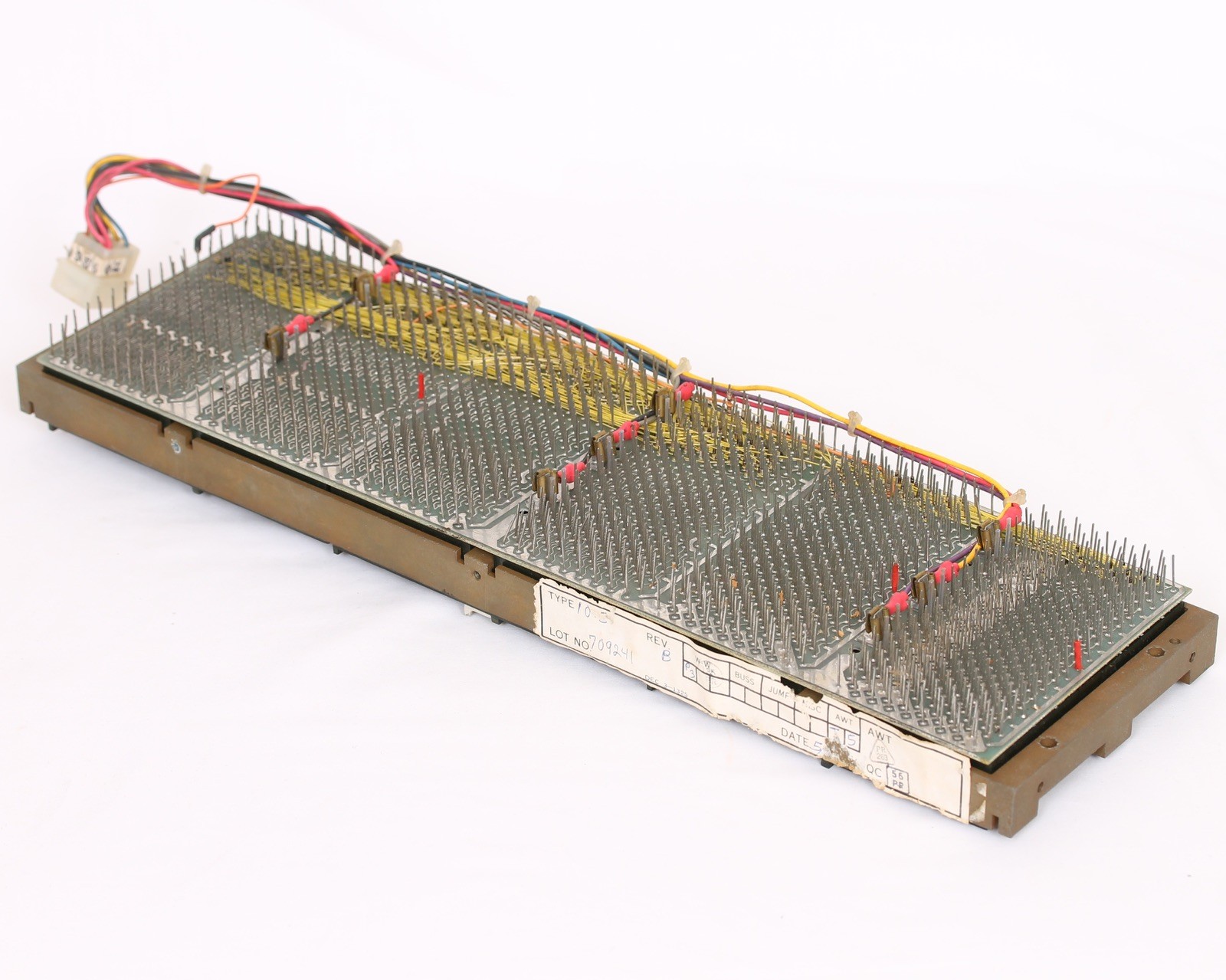

DEC Digital PDP-11/05 11/10 -N UniBus Wirewrap CPU Backplane For BA11-D Chassis
For sale is this Digital Equipment Corporation (DEC) PDP-11/05 PDP-11/10 6 slot CPU backplane.
Chances are if you're reading this you're familiar enough with the PDP-11 Unibus platform, if not, we strongly suggest you do your research as there is plenty of information online about this platform.
This is the -N type backplane (part number 54-10329 confirmed on the PCB). The configuration layout is as below (courtesy of CPU board #03M7261 CPU board #14UNIBUS TerminatorH213/H214 Core stack5G110 Memory Control6G231 Memory Driver7G110 Memory Control8G231 Memory Driver9UNIBUS OutH213/H214 Core stack
This wirewrap backplane was a working pull however due to its age it is sold AS IS and untested. It is a 6-slot backplane that has a 9 pin connector for a BA11-D Mounting Box.
It is in good cosmetic condition for a nearly 50 year old backplane, though some of the wirewrap pins are a little bent from storage over the years.
Due to its age and being untested it is sold AS IS.
Item pictured is actual item for sale.
It is the buyer’s responsibility to ensure compatibility prior to purchase.
Please note that this is quite heavy for what it appears to be (close to 2.8kgs). Due to the fragile nature of the wire wrap backplane extra care will be taken to ensure that there is no damage to the backplane. Item will be packed safely to ensure it arrives to its new owner in the same condition it has left in.
