DPA Entry – Mobile 3D Photogrammetry System for Precision Measurements

The DPA system is an advanced tool for 3D coordinate measurements, utilizing a camera for precise analysis of objects of any size – from small components to large-scale structures such as aircraft.

Key Features of the DPA System:

• Versatile Measurement Capabilities – Ideal for deformation analysis, tolerance checking, fixture verification, and comparisons with CAD models.
• Extreme Durability – Can operate in demanding environments, such as climate chambers or confined spaces.
• Maximum Mobility – A compact set that fits into a travel case, enabling quick and convenient on-site measurements.
• Easy Operation – An optical measurement system with intuitive technology, making it accessible even for beginners.
• Process Automation – From image acquisition to measurement report generation, minimizing time and eliminating manual errors.
• Full Integration – Compatible with popular metrology software, such as PolyWorks, Rapidform, and Geomagic.

• The DPA system is an excellent solution for industries where precision, mobility, and ease of use are crucial.

• 3D inspection includes tolerance analysis, inspection of sheet metal, fixtures, and large steel structures, as well as comparison with CAD models and roundness measurement of objects such as tunnels or tanks.

• Spatial process analysis covers deformation studies in vehicle testing, analysis of sheet metal and plastic components, and motion analysis of parts under load.

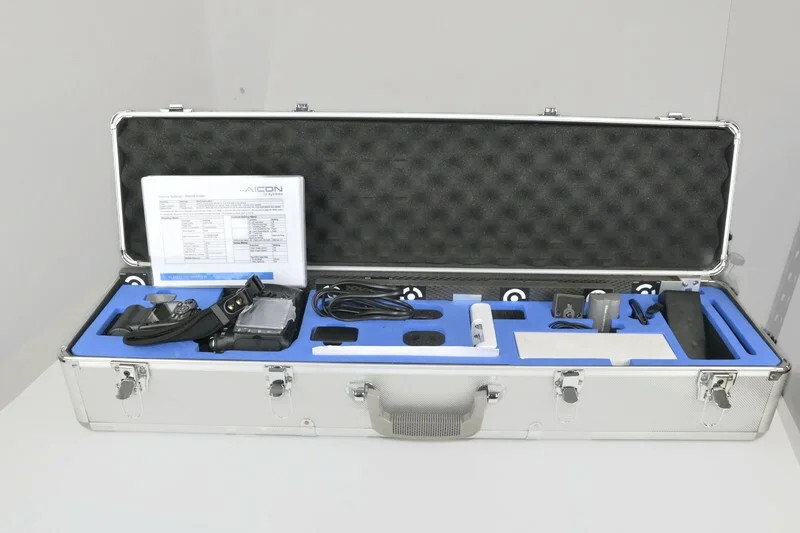

Used DPA Set – 100% Functional, Inculded:

• Digital camera
• Adhesive markers for indicating measurement points; adapters for marking corners and holes
• Calibrated length standards for reference
• WLAN for wireless data transmission
• Transport case
• without laptop
• The offered package includes the original software installer. The security dongle (license key) is not included; however, assistance with installation can be arranged.
• The software is fully functional but does not have an active license.
• The set is complete and original – no components such as cables, targets, or scale bars are missing.

Technical Specifications of the DPA System:

• Measurable object size: From 0.1 m
• Digital camera: Nikon D300S
• Lighting: White flash light
• Recording speed: 5 images per second
• Data transmission: WLAN or removable memory card
• Operating system: Microsoft® Windows® 7 and 8
• Calibration and certification:
  • DAkkS for length standards
  • VDI 2634 Part 1 for the system
• Measurement accuracy:
  • 2 µm + 5 µm/m (RMS)
  • 3 µm + 7 µm/m (3 Sigma)

Software:

• Photogrammetric processing: DPA
• Software for analysis, processing, and reporting:
  • AICON 3D Studio
  • PolyWorks®
  • Geomagic® Control™
  • Geomagic® Verify™
  • Metrolog®
  • Automatic calibration during operation: Yes
  • Automatic references: Yes
  • Deformation and motion analysis: Yes
  • Adapter corrections: Yes
  • Geometric feature measurement: Yes
