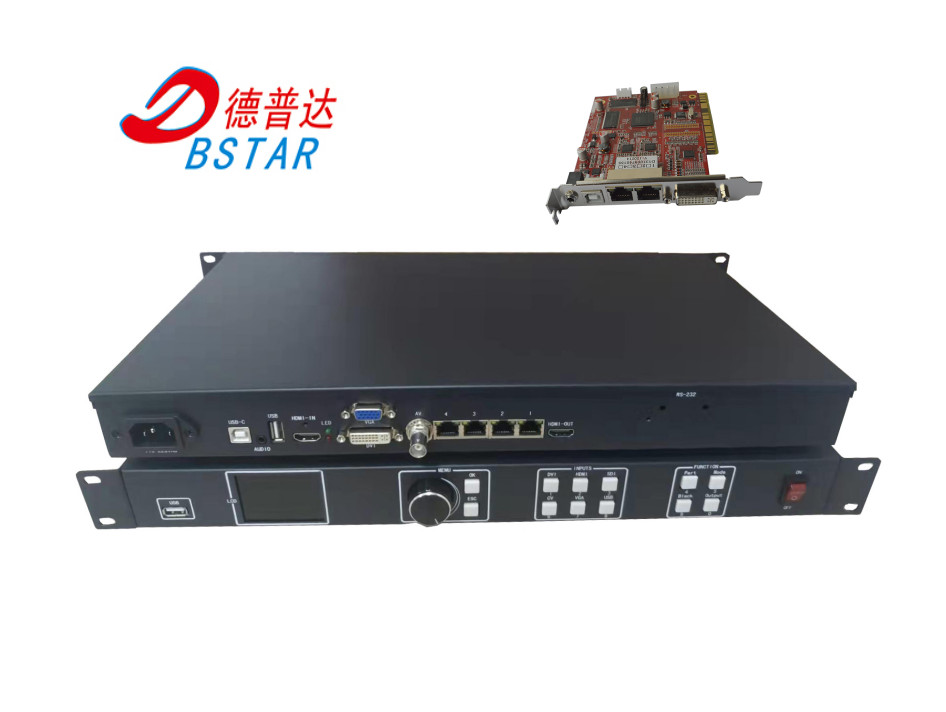

HVT-20VP is a two-in-one video processing transmitter specially developed for LED full-color displays. It can support one AV video input; one VGA input; one DVI input; one HDMI input; one-choice USB input.

The system includes setting software ledsetup_3.0, playing software xmplayer, and has a one-key recovery parameter function.

Features

●USB supports mixed video and picture broadcasting ●USB playback function

●Support 1920x1280 ultra-large resolution ●One USB playback port on the front and rear panels, which belong to a group of playback cores

●Support custom resolution

●The signal can be switched seamlessly ● 4 Gigabit Ethernet port output

●Support custom input EDID ● 4 network ports each can load 650,000 points

●One-click black screen

●Full color IPS display

●USB communication control

●Synchronous audio and video switching

●Partial or full screen switching, the maximum load width is 3840,

●Machine lock function up to 1920.

HDMI video input

Enter the number 1

Interface form HDMI socket

Signal standard HDMI1.3 backward compatible

Support resolution VESA standard, PCto1920x1200, HDto1080p

DVI video input

Enter the number 1

Interface form DVI socket

Signal standard DVI1.0

Support resolution VESA standard, PCto1920x1200, HDto1080p

VGA video input

Enter the number 1

Interface form DB15 socket

Signal standard R;G;B,Hsync;Vsync

Support resolution VESA standard, PCto1920x1200

AV video input

Enter the number 1

Interface form BNC

Signal standard PAL/NTSC 1Vpp±3db (0.7V Video+0.3v Sync) 75 oh

Support resolution 480i, 576i

USB playback input

Input quantity 2 (choose 1 from 2)

Interface form USB-A

Video standard 1280x720@60Hz (rm,rmvb,mp4, mov,mkv,wmv,avi,3gp)

Picture standard .jpg .jpeg .png.bmp

Audio output

Enter the number 1

Interface form 3.5-headphone jack

Output power 80db

Support channel HDMI

Weight 1.8kg

Dimensions 430*240*44.5 (mm)

Input power 100VAC-240VAC 50/60Hz

Maximum power 10W

Working temperature 0℃~45℃

Storage humidity 10%~90%
