Zombie Components LLC Sylmar, California Dell G33M02 0CU409

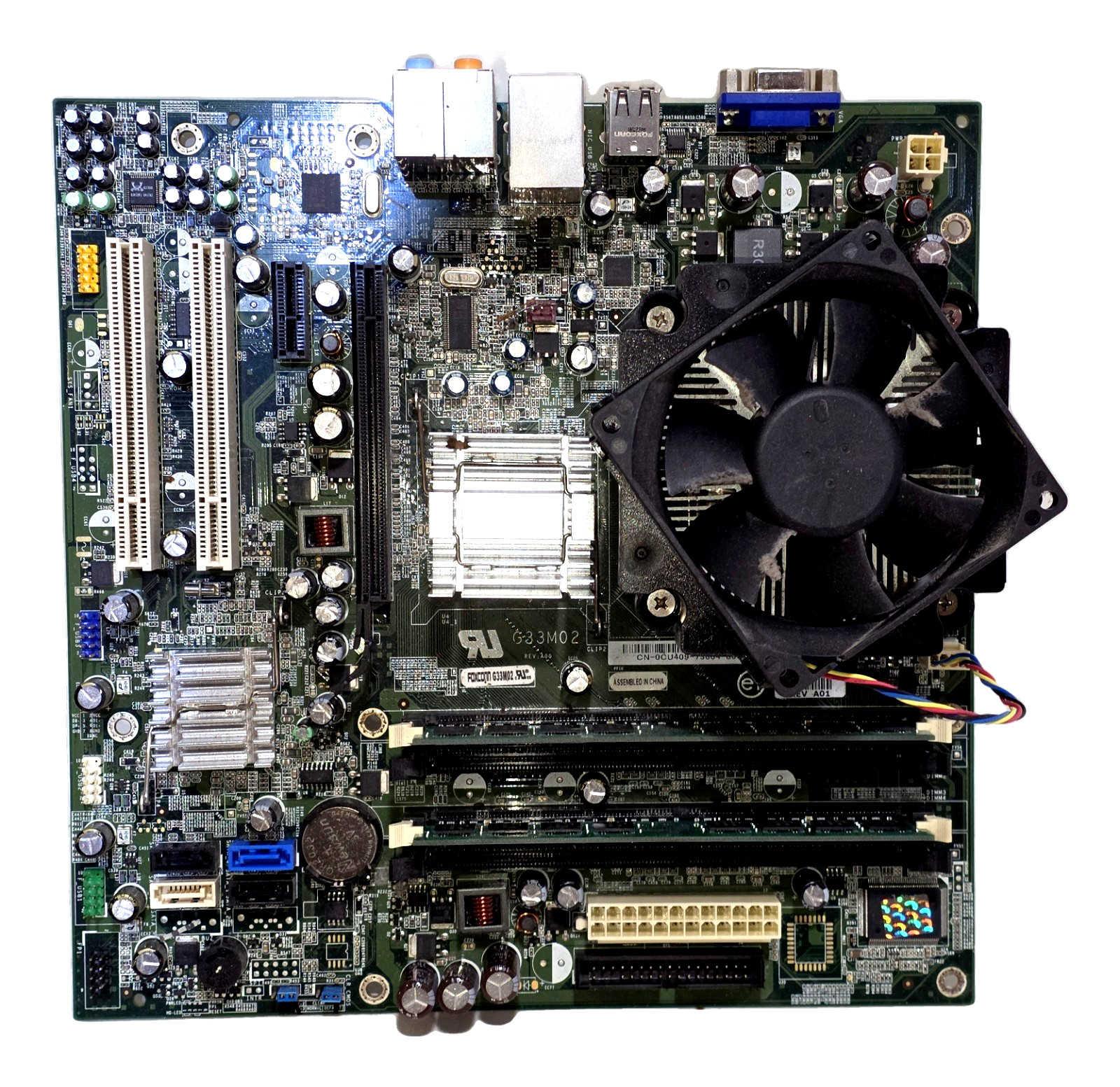

Dell Vostro 200 desktop system board, Dell part 0CU409 (Foxconn G33M02, REV A01), with an Intel Core 2 Duo E7200 2.53GHz processor, Dell 0JY167 heatsink and fan, and 2GB of DDR2 memory (2 x 1GB) installed. Dell Service Tag in BIOS: 6CGL3H1.
Condition
60 Day Money Back Guarantee. Powered on to the Phoenix AwardBIOS System Info screen.
Details and highlights
- CPU, cooler and 2GB memory installed: complete combo.
- Board label, cooler label and memory labels all present and readable.
- All four DIMM latches, PCI/PCIe slots, SATA and power connectors visibly intact.
- CMOS battery present.
Specifications ParameterValue MPN0CU409Board labelCN-0CU409-73604-86Q-06T7, REV A01Board modelFoxconn G33M02SystemDell Vostro 200BIOSPhoenix AwardBIOS 1.0.13, 03/21/2008ChipsetIntel G33 + ICH9, integrated Intel GMA 3100 graphicsProcessorIntel Core 2 Duo E7200, 2 cores, 2.53 GHz, 3 MB L2 cache, 1066 MHz FSB, LGA775, 65 WMemory installed2 x 1GB ProMOS V916765K24QCFW-F5, PC2-5300U, DDR2 667 MHz (BIOS reports 2048MB, dual channel)Memory slots4 x DDR2 DIMM, non-ECC unbufferedExpansion slots1 x PCI Express x16, 1 x PCI Express x1, 2 x PCIStorage connectors4 x SATA, 1 x floppyRear I/OVGA, 4 x USB 2.0, RJ45 LAN, 6 x 3.5 mm audioPower connectors24-pin ATX, 4-pin 12 VCPU coolerDell 0JY167 heatsink with 4-wire fanForm factormicro-ATX Included
Dell 0CU409 system boardIntel Core 2 Duo E7200 processor (installed)Dell 0JY167 heatsink and fan (installed)2 x 1GB DDR2 PC2-5300U memory modules (installed)CMOS battery (installed)
Not included:
I/O shield, chassis, power supply, drives, cables, operating system. The monitor shown in the BIOS photo is not part of the sale.
Compatibility and requirements
Dell part 0CU409 is used in the Dell Vostro 200 and is listed by parts suppliers for the Vostro 400, Inspiron 530 and Inspiron 530s. The installed BIOS is the Dell Vostro 200 release. Requires a power supply with a 24-pin ATX connector and a 4-pin 12 V connector. Memory type is DDR2 non-ECC unbuffered. Dell chassis for this board have the rear I/O plate built into the case, and the front panel header uses the Dell pinout. Match the part number 0CU409 and board model G33M02 against your original board before ordering.
Quality control
Where possible, electronics are tested. The value of an item determines the effort put into testing; items not specifically tested in detail are visually inspected and reviewed for operational status. Any exceptional wear is noted in the description. Most items are covered by a money-back guarantee.
Shipping
Box 15 x 15 x 7 in, ship weight 4 lb.
Orders may take up to 3 business days to ship from payment; weekends are not counted. If you need faster service, contact us before ordering so we can adjust priorities. We reserve the right to change the selected shipping method to an equivalent or better service that fits the item.
We ship worldwide. USPS may not be an acceptable choice for international shipping due to size, weight, and export documentation restrictions; you may be asked to select FedEx, UPS, or DHL at a higher price. Confirm your shipping choice with us before ordering if in doubt.
International shipments may be delayed or cancelled due to EAR and ITAR export compliance requirements. The vast majority of our items need no export license and ship under EAR99 and other exemptions; items that require a license are indicated in the listing.
Returns, warranty, and money-back guarantee
This listing carries a 60 day money back guarantee: return your purchase for any reason within 60 days for a full refund or exchange. Returned items must be in the condition received and in the original packaging.
All items are guaranteed to be as described. Any item not as described can be returned at our expense for a full refund, regardless of any as-is marking.
If you are dissatisfied for any reason, contact us first and give us a chance to work things out; if we cannot fix it, you receive 100% of your purchase price back.
