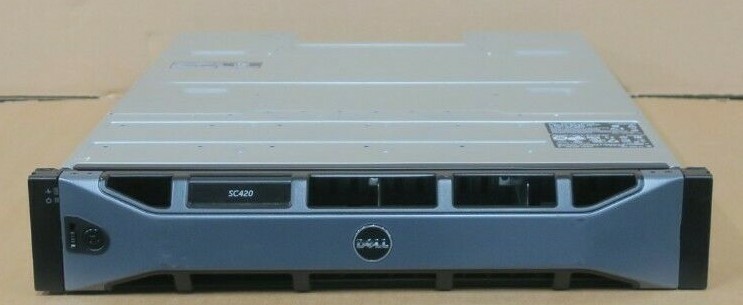

Dell Compellent SC420 Expansion Enclosure 24x 2.5" SAS Bays 2x 12G-SAS-4 2x PSU
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Dell Compellent SC420 Expansion Enclosure 24x 2.5" SAS Bays 2x 12G-SAS-4 2x PSU
Price: GB $560.62
Dell Compellent SC420 Expansion Enclosure 24x 2.5" SAS Bays 2x 12G-SAS-4 2x PSUModel No: Compellent SC420
In Good Condition, Full Working OrderTested
2 Years WarrantyIncluded
  • 1 x Dell Compellent SC420 Expansion Enclosure24-Bay
    • 2 x 12G-SAS-4 SAS 12Gbps Redundant Controllers (4 x SFF-8644 IN/OUT Per Controller)
    • x24 way backplane for up to 24 x 2.5" SAS or SAS SSD hard drives
    • Dual Redundant 600W Power Supplies
    • Bezel CONTROLLERSSC9000, SC8000*, SC7020, SC5020, SC4020** Note this 12Gb SAS enclosure supports the legacy SC8000 and SC4020 arrays, but will run at 6Gb speed.
      CONTROLLER ENCLOSURE CONNECTION (DUAL MODULES)12Gb SAS
      DRIVE SLOT SIZE2.5”
      MAX DRIVES PER ENCLOSURE24
      MAX RAW CAPACITY PER ENCLOSURE368.64TB
      FORM FACTOR2U
      INTERMIXED DRIVE TYPE SUPPORTYes
      SAS DRIVE SUPPORT 2.5” HDD
      • 600GB, 15K
      • 600GB, 15K SED
      • 1.2TB, 10K
      • 900GB, 15K SED
      • 900GB, 15K
      • 900GB, 10K
      • 1TB, 7.2K
      • 1.8TB, 10K
      • 1.8TB, 10K SED
      2.5” Write-intensive SED
    2.5” Read-intensive X WIDTH X DEPTH8.7 cm (3.43 in) x 48.2cm (18.98 in) x 54.1cm (21.30 in)
    WEIGHT AT MAXIMUM CONFIGURATION24.2 kg (53.35 lb)
    WEIGHT AT EMPTY8.8kg (19.4 lb)
    RACK SUPPORTReadyRails II static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting
    POWERPOWER/WATTAGETwo 600W hot-swappable, redundant power supplies; 450W maximum draw
    HEAT DISSIPATION2,047 BTU/hr (at 600W)1,621 BTU/hr
    VOLTAGE100-240 VAC, auto sensing
    FREQUENCY50/60 Hz
    AMPERAGE8.6 A at 100 V, 4.3 A at 240 VMaximum power draw: 74 amps
    ENVIRONMENTAL OPERATING CONDITIONSOPERATING TEMPERATURESC420: 10° to 35°C (50° to 95) with a maximum temperature gradation of 10°C per hour For altitudes above 2950 ft (900 m), the maximum operating temperature is derated 1°F per 550 ft (168 m).
    NON-OPERATING TEMPERATURE–40 to 65°C (–40 to 149°F) with a maximum temperature gradation of 20°C per hour
    OPERATING HUMIDITY8% to 85% (noncondensing) with a maximum humidity gradation of 10% per hour 20 to 80%
    NON-OPERATING HUMIDITY (NONCONDENSING)5% to 95% (non-condensing) 10 to 90%
    OPERATING ALTITUDE–16 to 3048 m (–50 to 10,000 ft)
    NON-OPERATING ALTITUDE–16 to 10,600 m (–50 to 35,000 ft)
    VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED£350 excluding VAT

    VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK


    CS278924 278925 278926 278927278928 278929 278930 278931
