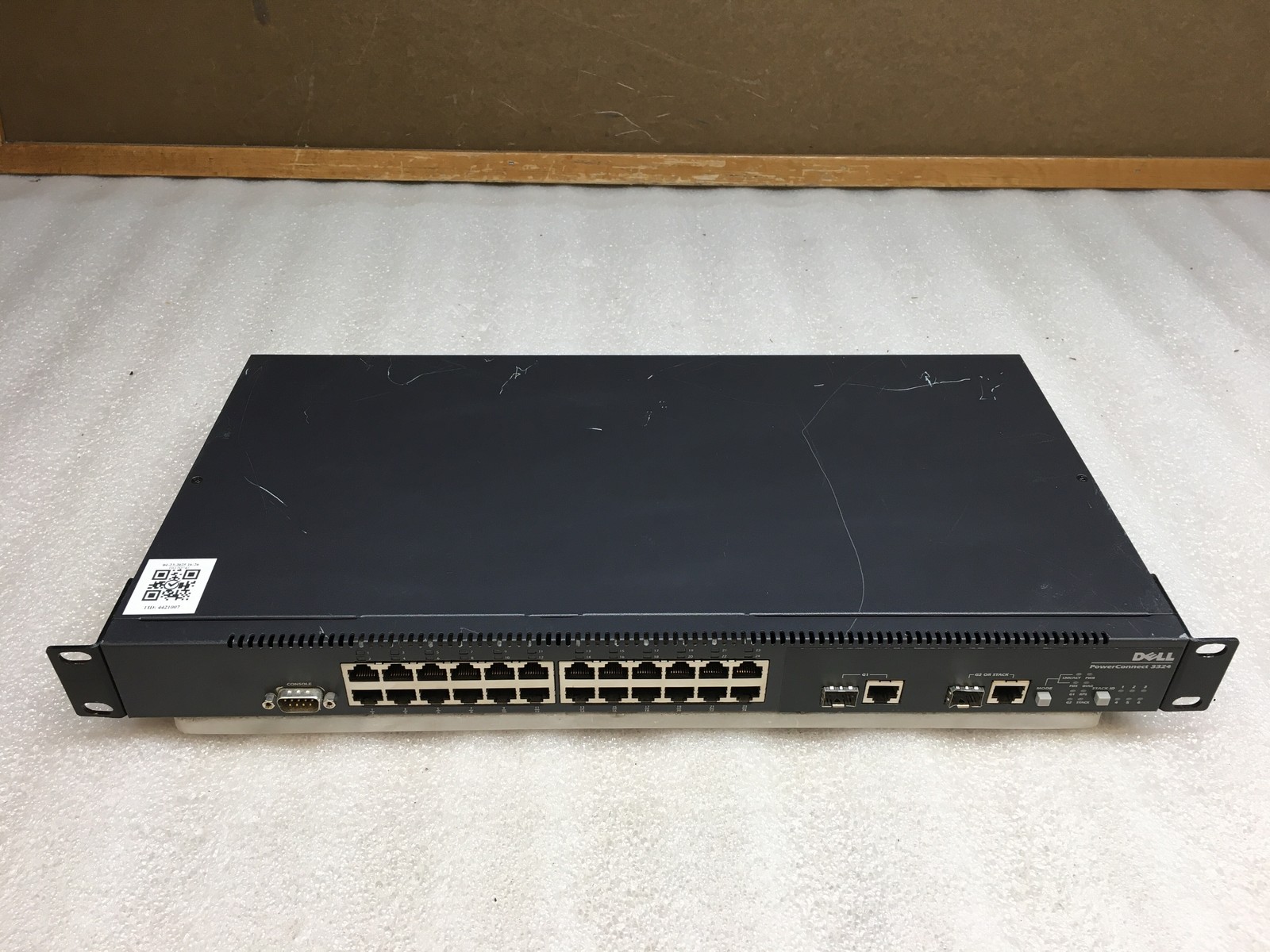

Listing Grid template example Product Photo Description Dell PowerConnect 3324 24-Port Managed Ethernet Switch with Rack Ears Dell PowerConnect 3324 24-Port Managed Ethernet Switch with Rack Ears

Boost your network performance with the Dell PowerConnect 3324, a reliable and efficient 24-port managed Ethernet switch designed for growing businesses and enterprise networking environments. With robust management capabilities and durable construction, this switch ensures seamless connectivity and Dell PowerConnect 3324

24 x 10/100Mbps Ethernet ports

2 x Gigabit Ethernet combo ports (RJ45/SFP)

Switching capacity: 8.8 Gbps

Forwarding rate: 6.6 Mpps

MAC Address Table Size: 8,000 entries

VLAN support: Up to 256 VLANs

Quality of Service (QoS) support

SNMP management and web-based GUI

1U rack-mountable form factor

Key Features

• 24 Fast Ethernet ports ideal for small-to-mid-size networks
• Two integrated Gigabit combo ports for high-speed backbone connectivity
• Support for port-based and IEEE 802.1Q VLANs
• Spanning Tree Protocol (STP) for network loop prevention
• Web-based management interface and CLI access
• Support for IGMP Snooping, improving multicast performance
• Rate limiting for better bandwidth control

Important Notes

• Minor scratches, scuffs, and scrapes from previous use and storage.

Included

• Rack Ears

Not Included

• Power adapter/cable
• Ethernet cables
• Mounting screws
• User manual
• Original show version

  SW version1.1.0.42 ( date11-Jan-2004 time12:50:35 )

  Boot version1.0.0.13 ( date11-May-2003 time14:58:20 )

  HW show system

  System Description:Ethernet Stackable Switching System

  System Up Time Contact:

  System Name:

  System Location:

  MAC Address:00:0f:1f:30:76:15

  Sys Object ------------ ------------

  Internal PowerSupply show ------------ show -------------------------------- --------------------------- show tree enabled mode STP







  Root Time2 secMax Age 20 secForward Delay 15 sec

  Bridge Time2 secMax Age 20 secForward Delay 15 sec

  Number of topology changes 0 last change occurred 00:03:10 ago

  Times:hold 1, topology change 35, notification 2

  hello 2, max age 20, forward delay 15




  Interface Port IDDesignatedPort ID

  NamePrioStsEnbCostCostBridge IdPrio.Nbr

  ------ ---- ------ ----- --------- --------- ------------------------ --------

  1/e1128DSBLTRUE100032768 00:0f:1f:30:76:15128 1

  1/e2128DSBLTRUE100032768 00:0f:1f:30:76:15128 2

  1/e3128DSBLTRUE100032768 00:0f:1f:30:76:15128 3

  1/e4128DSBLTRUE100032768 00:0f:1f:30:76:15128 4

  1/e5128DSBLTRUE100032768 00:0f:1f:30:76:15128 5

  1/e6128DSBLTRUE100032768 00:0f:1f:30:76:15128 6

  1/e7128DSBLTRUE100032768 00:0f:1f:30:76:15128 7

  1/e8128DSBLTRUE100032768 00:0f:1f:30:76:15128 8

  1/e9128DSBLTRUE100032768 00:0f:1f:30:76:15128 9

  1/e10128DSBLTRUE100032768 00:0f:1f:30:76:15128 10

  1/e11128DSBLTRUE100032768 00:0f:1f:30:76:15128 11

  1/e12128DSBLTRUE100032768 00:0f:1f:30:76:15128 12

  1/e13128DSBLTRUE100032768 00:0f:1f:30:76:15128 13

  1/e14128DSBLTRUE100032768 00:0f:1f:30:76:15128 14

  1/e15128DSBLTRUE100032768 00:0f:1f:30:76:15128 15

  1/e16128DSBLTRUE100032768 00:0f:1f:30:76:15128 16

  1/e17128DSBLTRUE100032768 00:0f:1f:30:76:15128 17

  1/e18128DSBLTRUE100032768 00:0f:1f:30:76:15128 18

  1/e19128DSBLTRUE100032768 00:0f:1f:30:76:15128 19

  1/e20128DSBLTRUE100032768 00:0f:1f:30:76:15128 20

  1/e21128DSBLTRUE100032768 00:0f:1f:30:76:15128 21

  1/e22128DSBLTRUE100032768 00:0f:1f:30:76:15128 22

  1/e23128DSBLTRUE100032768 00:0f:1f:30:76:15128 23

  1/e24128DSBLTRUE100032768 00:0f:1f:30:76:15128 24

  1/e25128DSBLTRUE100032768 00:0f:1f:30:76:15128 25

  1/e26128DSBLTRUE100032768 00:0f:1f:30:76:15128 26

  1/e27128DSBLTRUE100032768 00:0f:1f:30:76:15128 27

  1/e28128DSBLTRUE100032768 00:0f:1f:30:76:15128 28

  1/e29128DSBLTRUE100032768 00:0f:1f:30:76:15128 29

  1/e30128DSBLTRUE100032768 00:0f:1f:30:76:15128 30

  1/e31128DSBLTRUE100032768 00:0f:1f:30:76:15128 31

  1/e32128DSBLTRUE100032768 00:0f:1f:30:76:15128 32

  1/e33128DSBLTRUE100032768 00:0f:1f:30:76:15128 33

  1/e34128DSBLTRUE100032768 00:0f:1f:30:76:15128 34

  1/e35128DSBLTRUE100032768 00:0f:1f:30:76:15128 35

  1/e36128DSBLTRUE100032768 00:0f:1f:30:76:15128 36

  1/e37128DSBLTRUE100032768 00:0f:1f:30:76:15128 37

  1/e38128DSBLTRUE100032768 00:0f:1f:30:76:15128 38

  1/e39128DSBLTRUE100032768 00:0f:1f:30:76:15128 39

  1/e40128DSBLTRUE100032768 00:0f:1f:30:76:15128 40

  1/e41128DSBLTRUE100032768 00:0f:1f:30:76:15128 41

  1/e42128DSBLTRUE100032768 00:0f:1f:30:76:15128 42

  1/e43128DSBLTRUE100032768 00:0f:1f:30:76:15128 43

  1/e44128DSBLTRUE100032768 00:0f:1f:30:76:15128 44

  1/e45128DSBLTRUE100032768 00:0f:1f:30:76:15128 45

  1/e46128DSBLTRUE100032768 00:0f:1f:30:76:15128 46

  1/e47128DSBLTRUE100032768 00:0f:1f:30:76:15128 47

  1/e48128DSBLTRUE100032768 00:0f:1f:30:76:15128 48

  1/g1128DSBLTRUE100032768 00:0f:1f:30:76:15128 49

  1/g2128DSBLTRUE100032768 00:0f:1f:30:76:15128 50

  ch1128DSBLTRUE4032768 00:0f:1f:30:76:15128 51

  ch2128DSBLTRUE4032768 00:0f:1f:30:76:15128 52

  ch3128DSBLTRUE4032768 00:0f:1f:30:76:15128 53

  ch4128DSBLTRUE4032768 00:0f:1f:30:76:15128 54

  ch5128DSBLTRUE4032768 00:0f:1f:30:76:15128 55

  ch6128DSBLTRUE4032768 00:0f:1f:30:76:15128 56




  console# show interface status

  Flow LinkBackMdix

  PortTypeDuplexSpeed Negctrl StatePressure Mode

  ........ ............ ........... ........ .... ........... ........ Present----

  1/e26----------Not Present----

  1/e27----------Not Present----

  1/e28----------Not Present----

  1/e29----------Not Present----

  1/e30----------Not Present----

  1/e31----------Not Present----

  1/e32----------Not Present----

  1/e33----------Not Present----

  1/e34----------Not Present----

  1/e35----------Not Present----

  1/e36----------Not Present----

  1/e37----------Not Present----

  1/e38----------Not Present----

  1/e39----------Not Present----

  1/e40----------Not Present----

  1/e41----------Not Present----

  1/e42----------Not Present----

  1/e43----------Not Present----

  1/e44----------Not Present----

  1/e45----------Not Present----

  1/e46----------Not Present----

  1/e47----------Not Present----

  1/e48----------Not ....... ................... .................. ........

  ch1----------Not Present--

  ch2----------Not Present--

  ch3----------Not Present--

  ch4----------Not Present--

  ch5----------Not Present--

  ch6----------Not Present--




  console# show startup-config

  Empty configuration




  console# show running-config

  Empty configuration

  Specifications Functional Condition:
  F3 - Key Functions Working

  Equipment in this category has undergone testing to confirm that its core functionalities are operational. Essential functions that a typical user would expect are verified working. Secondary functions or software may not be present or configured. Units may be missing components or parts that are not essential to key functions.

  Cosmetic Condition:
  C4 - Used Good

  Good overall used condition. Some light scratches or scuffs. No dents, dings or cracks.

  Data Sanitization:
  S3 - Data Clear

  Device has been sanitized by one of the following methods: Factory Reset, NIST 800-88 Clear, or DOD 5220.22


  Mpn
  PowerConnect 3324 Function Tests Powers On
  Passed Physical Inspection
  Passed Functions
  Passed Buttons
  Passed Shipping


  Tracking information is automatically uploaded to once your order ships.
  We ship orders within the contiguous US with FedEx or USPS at our discretion. We use 's shipping calculator for all shipping rates.
  PO Box, HI, AK, APO/FPO/DPO, and PR orders must be shipped via USPS. Please contact us or request an adjusted invoice before checking out. Local Pickup
  If you have purchased an item and prefer to pick it up, please select “Local Pickup” from the shipping options during checkout. Then please contact us to arrange pickup.
  Payment must be made through prior to pickup. Combined Shipping
  We can typically provide a 30% shipping discount for multiple purchases that will fit in the same box.
  For combined shipping, please click 'Request Total' or send us a message before checking out.
  We can then adjust your invoice for combined shipping. Expedited Shipping
  In order to guarantee the rates and transit times shown, we must receive your order with its payment cleared by 12:00 PM EST during business days.
  Orders placed after 12:00 PM EST will be shipped on the next business day.
  Orders placed on weekends or holidays will be shipped the next business day.
  Please plan your orders accordingly.


  Returns


  We strive to be a 5 star seller and hope that you are happy with your purchase.
  If there is a problem with your order, please contact us through messages or by phone before leaving response. For items that are tested and working properly:
  Our return window for working items listed as "New" or "Used" is 30 days.
  If the item is no longer wanted or does not fit, the buyer is responsible for return shipping.
  If the item is not working as described, we will work with you on the issue, please contact us to resolve. Please review all product details and sale terms before making a purchase.
