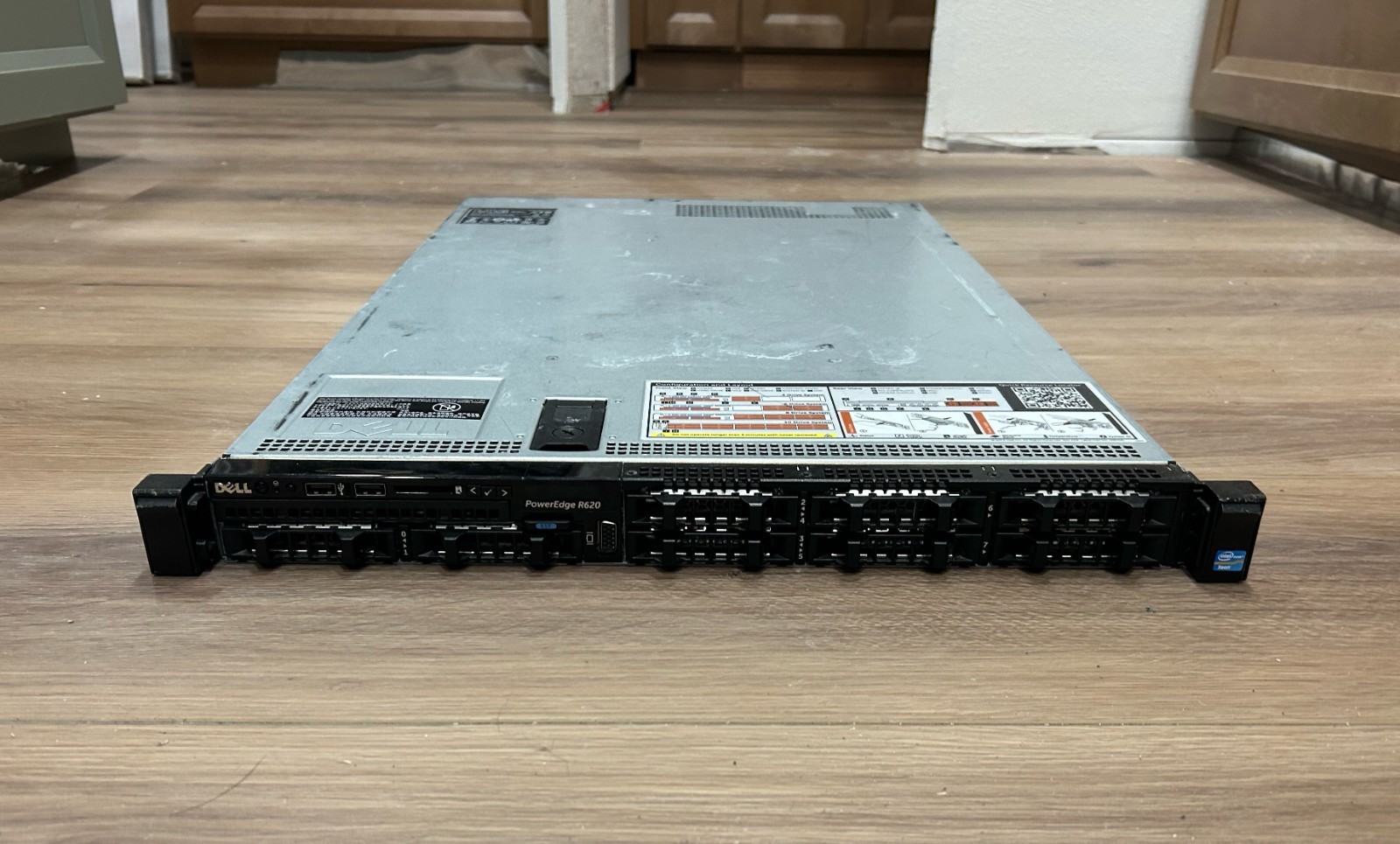

Dell PowerEdge R620 1U Rack Server – Tested & Working
Dell PowerEdge R620 server with dual Intel Xeon processors, 32GB ECC memory, PERC H310 Mini RAID controller, and redundant 495W power PowerEdge R620
2x Intel Xeon E5-2660 processors @ 2.20GHz8 cores / 16 threads per CPU16 cores / 32 threads total32GB DDR3 ECC memoryMemory operating at 1333MHzPERC H310 Mini RAID controller8-bay 2.5" SFF chassis4x onboard Ethernet ports2x 495W hot-swap power suppliesOptical driveNo hard drives includedNo operating system includedTesting performed:
- Server successfully POSTed and booted
- Both Intel Xeon E5-2660 processors detected
- All 16 physical cores / 32 threads detected
- 32GB RAM detected
- MemTest86+ completed one full pass with 0 errors
- Approximately 43 minutes of CPU/memory load testing completed
- PERC H310 Mini RAID controller detected
- Both 495W power supplies tested individually; server successfully operated from either PSU
- All four onboard Ethernet ports produced link when connected
- Front USB tested and successfully booted from USB
- Lifecycle Controller loads
- Dell Boot Manager reported platform healthy
The front drive bays are empty and no hard drives are included. The RAID controller retains a previous disk configuration and reports the previous disks as missing during POST because those drives are no longer installed.
Lifecycle Controller's built-in diagnostic application is not currently installed and reports SUP0511 when attempting to launch Dell hardware diagnostics. This did not prevent the other testing described above.
Unit has normal cosmetic wear from previous use, including scratches/scuffs consistent with rack-mounted enterprise equipment. Please review photos for exact cosmetic condition.
Only the server is included. No hard drives, operating system, monitor, keyboard, mouse, network cables, or other accessories are included unless specifically pictured and stated otherwise.
