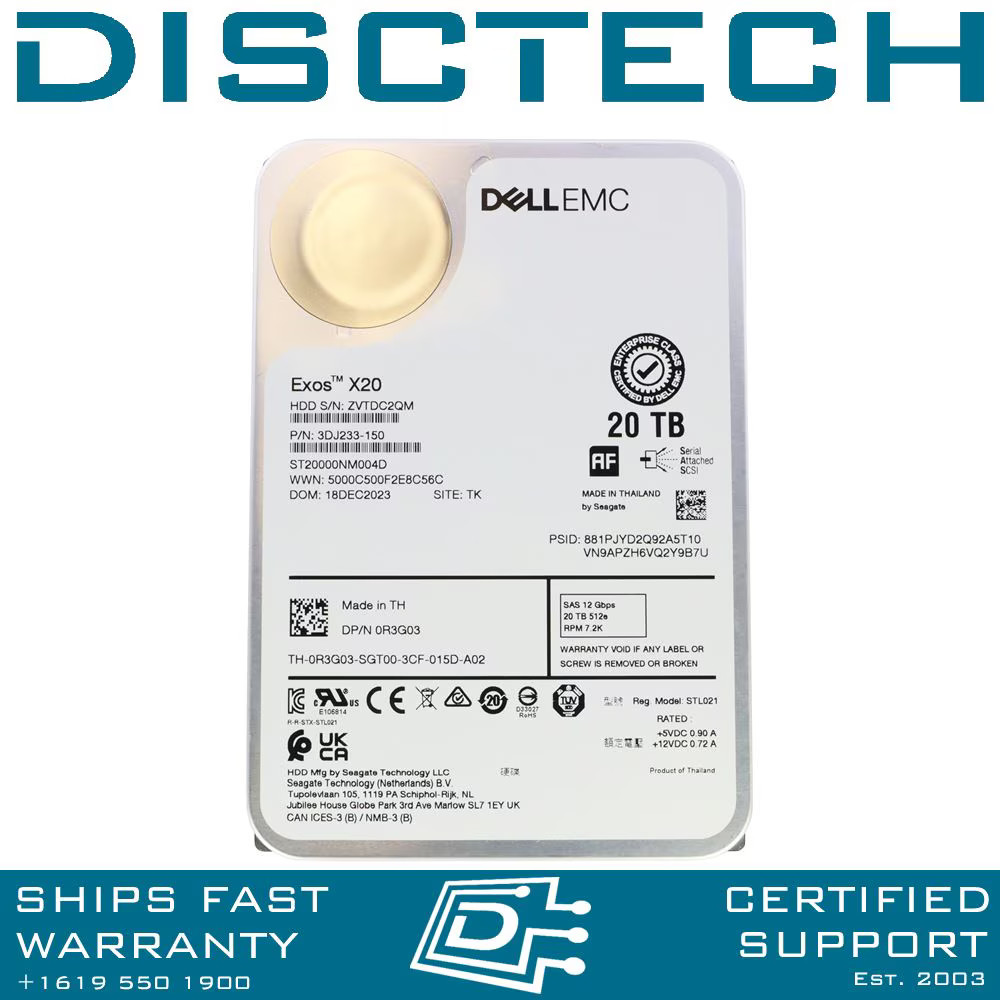

Dell R3G03 / Seagate Exos X20 ST20000NM004D 20TB 3.5" LFF 12Gbps 7.2K RPM Enterprise 512e Fast Format Enterprise SAS Hard Drive ME5 - Brand NewBrand New

Dell R3G03 / Seagate Exos X20 ST20000NM004D 20TB 3.5 LFF 12Gbps 7.2K RPM Enterprise 512e Fast Format Enterprise SAS Hard Drive - Brand New

Scalable. Responsive. Innovative.
Exos X20

Seagate manufactures hard drives that specifically address the
demand for hyperscale cloud scalability. As the flagship of the
Seagate® X class, the Exos® X20 enterprise hard drives are the
highest-capacity hard drives in the fleet.

Maximum Storage Capacity for Highest Rack Space Efficiency

Market-leading 20TB HDD offering the highest capacity available for more petabytes per rack

Highly reliable performance with enhanced caching, making it the logical choice for cloud data center and massive scale-out data center applications

Maximise total cost of ownership savings through lower power and weight with helium sealed-drive design

Proven helium side-sealing weld technology for added handling robustness and leak protection.

Digital environmental sensors to monitor internal drive conditions for optimal operation and performance

Data protection and security: Seagate Secure features for safe, affordable, fast and easy drive retirement

Proven enterprise-class reliability backed by a 2.5M-hr MTBF rating

Best-Fit Applications

• Scalable hyperscale applications/cloud data centers
• Massive scale-out data centers
• Big data applications
• High-capacity density RAID storage
• Mainstream enterprise external storage arrays
• Distributed file systems, including Hadoop and Ceph
• Enterprise backup and restore— D2D, virtual tape
• Centralized surveillance

 DP/N: R3G03 / -R3G03

Manufacturer Part#: 3DJ233-150

Exos Enterprise X20Standard Model FastFormat SASCapacity20TB / 20000GBHelium Sealed-Drive DesignYesConventional Magnetic Recording (CMR)YesProtection Information (T10 DIF)YesSuperParityYesLow HalogenYesPowerChoice Idle Power TechnologyYesPowerBalance Power/Performance TechnologyYesHot-Plug SupportYesCache, Multisegmented (MB)256Organic Solderability PreservativeYesRSA 2048 Firmware VerificationYesMean Time Between Failures (MTBF, hours)2,500,000Reliability Rating @ Full 24×7 Operation (AFR)0.35%Nonrecoverable Read Errors per Bits Read1 Sector per 1015Power-On Hours per Year (24×7)8760512e Sector Size (Bytes per Sector Size (Bytes per Speed (RPM)7200Interface Access Speed Sustainable Transfer Rate OD (MB/s, MiB/s) Read/Write 4K QD16 WCD (IOPS)168/550Average Latency (ms)4.16Interface PortsDualRotational Vibration @ 20-1500Hz (rad/sec)12.5Idle A (W) Average5.8 WMax Operating, Random Read/Write 4K/16Q (W)9.8, 7.0Power Supply Requirements+12 V and +5 VTemperature, Operating (°C)5°C - 60°CVibration, Nonoperating: 2 to 500Hz (Grms)2.27Shock, Operating Read/Write (Gs)40Shock, Nonoperating, 2ms (Gs)200Height (in/mm, max)1.028in/26.1mmWeight (in/mm, max)4.010in/101.85mmDepth (in/mm, max)5.787in/147.0mmWeigt Part Numbers: R3G03 0R3G03 3DJ233-150
