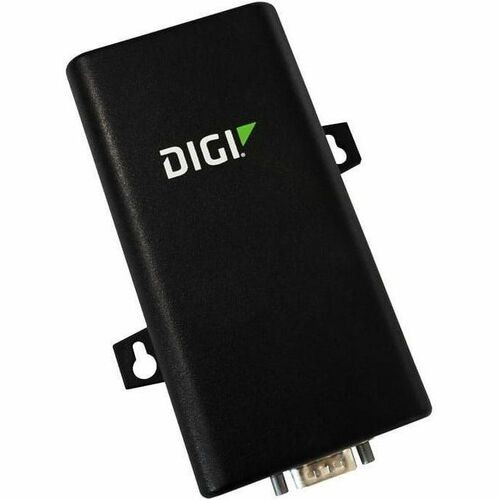

Digi Connect EZ Mini Device Server - 1 x Network (RJ-45) - 1 x Serial Port - 10/100/1000Base-T - Gigabit Ethernet - Management Port - DIN Rail Mountable

Click-to-connect | Modern, secure serial connectivity that boots in seconds, configures in minutes and runs for years Most companies are not replacing their equipment - they are updating the way they talk to it. Digi Connect EZ® modernizes operational infrastructure with expanded network connectivity and functionality for today's applications. It is designed to meet the demands of a wide range of critical serial applications including connecting to automation, robotics control, centralized device management, data acquisition and point-of-sale equipment. Digi Connect EZ is a click-to-connect solution with 1, 2, 4, 8, 16 or 32 serial ports. Digi Connect EZ Mini, 2 and 4 are available with software-selectable for RS-232/422/485 communication, as well as optional LTE, Wi-Fi and industrial specifications (C1D2). It takes only a few minutes to configure with intelligent, use case-based options so that you can quickly install without having to modify your equipment or applications. Digi simplifies key security requirements for critical infrastructure and distributed systems with enhanced access control, management and configuration capabilities. Digi Connect EZ and built-in Digi TrustFence® give your security and operations teams peace of mind against evolving security threats with encrypted connections, centralized authentication, VPN support and scalable security updates. Digi Connect EZ supports the widest range of industry standard and device-specific protocols using serial tunneling, TCP/UDP connections or Digi's patented RealPort® COM port redirector for remote native COM port access. A built-in Python environment enables application development and customization at the device level, including event-based programmability, data conversion and full control of device connections.
ManufacturerDigi International Manufacturer Part NumberEZ01-MA00-GLB Brand NameDigi Product LineConnect EZ Mini Product NameConnect EZ Mini Device Server Product TypeDevice Server Technical Information Connectivity TechnologyWired Network & Communication Ethernet TechnologyGigabit Ethernet Network Standard10/100/1000Base-T Interfaces/Ports Network (RJ-45)Yes Serial PortYes Management PortYes Total Number of Network Ports1 Number of Network (RJ-45) Ports1 Number of Serial Ports1 Environmental Conditions Minimum Operating Temperature32°F (0°C) Maximum Operating Temperature104°F (40°C) Power Description Input Voltage12 V DC Power Consumption1.70 W Input Current1.50 A Physical Characteristics Color FamilyBlack Product ColorBlack Form FactorDIN Rail Mountable Height1.2" Width3.7" Depth5.4" Miscellaneous Package Contents Connect EZ Mini Device Server Power Supply - 12 V, 1.5 A DIN rail clip Certifications & Standards IEC62368-1 IEC60950-1 CB EN62311 UL62368-1 UL60950-1 Class 1, Division 2 IEC 60068-2-64 IEC 60068-2-27 CE RED FCC Part 15, Subpart B ICES-003 AU/NZS CISPR32 Environmental ComplianceRestriction of Hazardous Substances (RoHS) 3 Warranty Limited Warranty5 Year Additional Warranty Information 1-year LifeCycle Assurance with 24x7 Expert Support included WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
