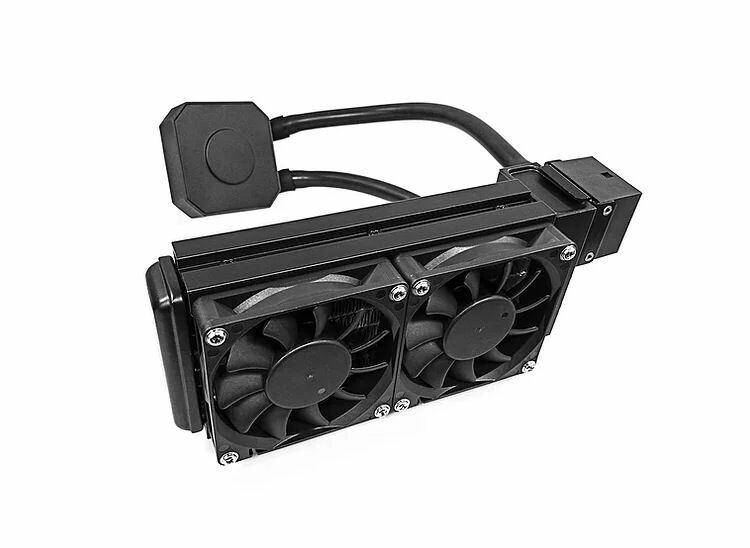

All-in-one Liquid Cooler for 2U Server, Recommend for Intel Socket LGA 2011 Square and Narrow ILM Mounting, Socket LGA 1356, 1366, 115X, 1200 and AMD® Socket FM2+, FM2, AM3+, AM3, AM2+, AM2, Dual 7cm Cooling Fans with 4-pin PWM Connector, Fully Support CPU Overclocking Powered Heat Dissipation.
CPU Support
Intel/AMD
CPU Socket
Intel Socket LGA1356/1366/115x/1700/2011 Narrow/Square/1200
AMD® Socket
2U Server
Fan Dimension
70 x 70 x 15 mm
Speed
At Duty Cycle 0~20%: 3300±10% RPMAt Duty Cycle 50%: 4500±10% RPMAt Duty Cycle 100%: 6000±10% RPM
Bearing
2 Ball Bearing
Rated Voltage
12V
Power
At Duty Cycle 0~ 20%: 1.80 WAt Duty Cycle 50%: 3.24 WAt Duty Cycle 100%: 7.92 W
Noise Level
At Duty Cycle 0~ 20%: 31.70 dBAAt Duty Cycle 50%: 38.44 dBAAt Duty Cycle 100%: 46.42 dBA
Air Flow
At Duty Cycle 0~ 20%: 27.43 CFMAt Duty Cycle 50%: 37.40 CFMAt Duty Cycle 100%: 54.02 CFM
Air Pressure
At Duty Cycle 0~ 20%: 2.95 mm-H2OAt Duty Cycle 50%: 5.49 mm-H2OAt Duty Cycle 100%: 11.45 mm-H2O
Lead Wire Pin Out
Pin1- (-)Pin2- (+)Pin3- (Tachometer/Signal output)Pin4- (PWM)
Water Pump
Stand-alone Water Pump with Powerful Flow Rate 1.7 Liter Per Minute
Radiator
Space Saver Light Weight Radiator
Cold Plate
Cold Plate Module with Copper Base
Thermal Grease
Shin-Etsu Pre-printed on Base
