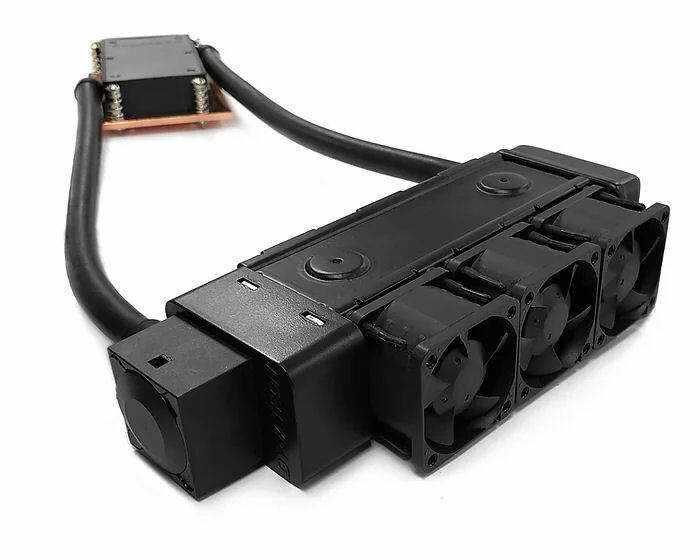

Recommended for AMD® Ryzen Threadripper Processor, Socket sWRX8, sTRX4, TR4, and AMD® Epyc Processor Socket SP3, All-in-one Liquid Cooler for 1U Server, Three 4 cm cooling fans with 4-pin PWM Connector, Support CPU Overclocking Power Mode up to 280 Watts Heat Dissipation
CPU Support AMD®
CPU Socket Socket sWRX8/sTRX4/TR4/SP3
Solution 1U Server
Fan Dimension 40.0 x 40.0 x 28.0 mmSpeed At Duty Cycle 0~20%: 2000 ± 10% RPMAt Duty Cycle 50%: 10000 ± 10% RPMAt Duty Cycle 100%: 18000 ±10% RPM
Bearing 2 Ball Bearing
Rated Voltage 12V
Power At Duty Cycle 0~20%: 2.40 WAt Duty Cycle 50%: 7.20 WAt Duty Cycle 100%: 15.60 W
Air Flow At Duty Cycle 0~20%: 2.944 CFMAt Duty Cycle 50%: 14.72 CFMAt Duty Cycle 100%: 30.6 CFM
Noise Level At Duty Cycle 0~20%: 16.00 dBAAt Duty Cycle 50%: 44.24 dBAAt Duty Cycle 100%: 57.00 dBA
Air Pressure At Duty Cycle 0~20%: 0.61 mm-H2OAt Duty Cycle 50%: 15.12 mm-H2OAt Duty Cycle 100%: 49.0 mm-H2O
Lead Wire Pin Out Pin1- (-)Pin2- (+)
Pin3- (Tachometer output)
Pin4- (PWM Control)
Water Pump
Stand-alone Water Pump in flow rate 1.7 Liter Per Minute
