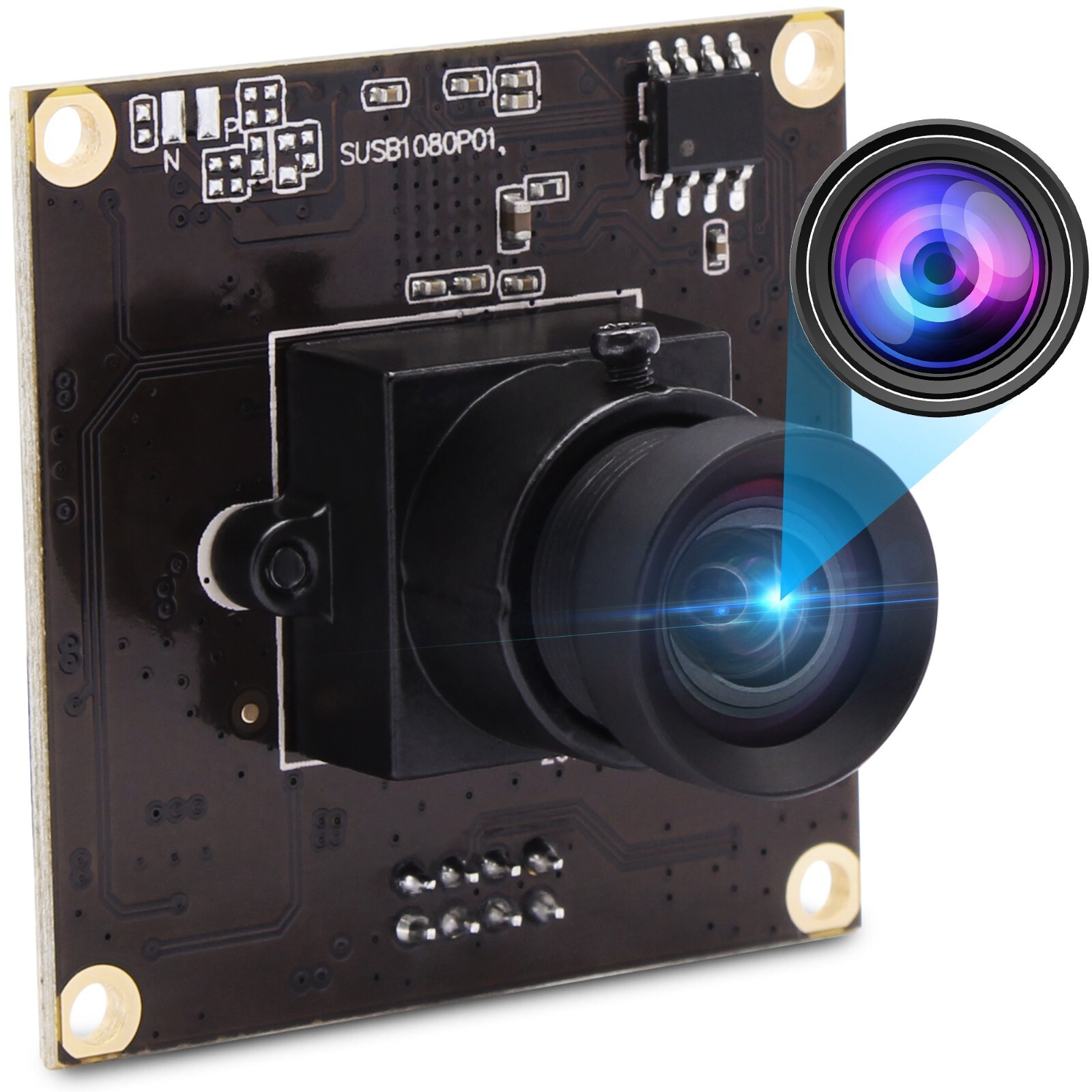

ELP high fps 50fpsWebcams2MP No Distortion USB3.0 Sony IMX291 Camera Module MJPEG 1920*1080 UVC plug play mini usb camera module for USB 3.0 Camera Module with no distortion lens*1/2.8 SONY IMX291 Color CMOS Sensor for high quality image *High speed USB 3.0 interface for high resolution PC camera interface.*Super small outline 38*38mm and thin profile for embedded applications.*High frame rate– deliver 50 fps in 1920X1080 resolution.*UVC compliance for use in OS Windows, Linux, Android*OTG support
Specification:
ELP-SUSB1080P01-LC1100
Sensor
IMX291
1/2.8 inch
Pixel Size
2.9µm X 2.9µm
Max. Resolution
1920(H)X1080(V)
Compression format
MJPEG / YUV2（YUYV）
Resolution & frame
1920X1080 MJPEG@ 50fps/ USB3.0 1920X1080 YUY2@ 50fps
1280X720 MJPEG@ 50fps / USB3.0 1280X720 YUY2@ 50fps
640X480MJPEG@ 50fps / USB3.0 640X480 YUY2@ 50fps
S/N Ratio
40dB
Dynamic Range
65dB
Sensitivity
1900mV/lux-sec@550nm
Mini illumination
0. 01lux
Shutter Type
Electronic rolling shutter / Frame exposure
Connecting Port type
USB3.0 High Speed
Free Drive Protocol
USB Video Class（UVC）
AEC
Support
AEB
Support
AGC
Support
Adjustable parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
Gain, White balance, Backlight Contrast, Exposure
Lens Parameter
FOV100 degree no distortion lensoptional 2.8/3.6/6/8/12mm lens, FOV 170/180Degree,
Power supply
USB BUS POWER
Operating Voltage
DC5V
Working current
170mA~210mA
Working temperature
0～70℃
Board size /Weight
38*38mm
Cable
Standard 1M
Operating system request
Win8 or above
Linux with UVC（above linux-2.6.26）
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
Application:
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote sitemonitoring, environmental monitoring, etc.
used for all kinds of machine as below:
Product show and Effect:
