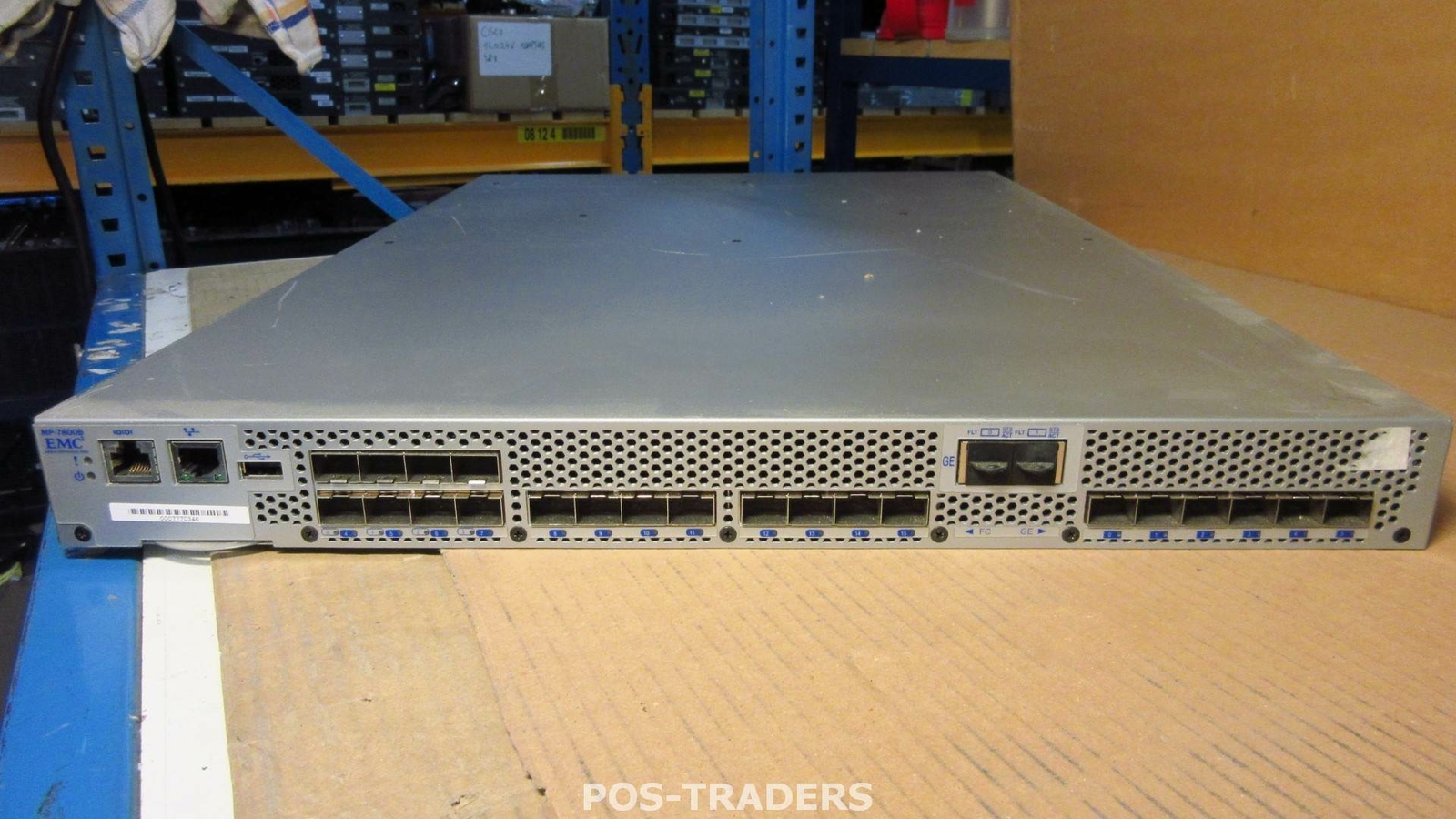

EMC Brocade 7800B 16 Port 8G Fibre Channel Extension Switch 100-652-579 DUAL PSU

Dear customer,

When there might be a difference between the automatic generated specifications by the system, and the hand written/typed description, then please be aware that the only correct description is what's written by our selves here in the description.
Specifications above might be slightly different.
Thanks for your understanding.

DUAL POWER SUPPLYS

EXCLUDING NETWORK CABLES

See photos for actual item!

Price isfor 1 item

DELL EMC Connectrix MP-7800B Switches:

SYSTEM ARCHITECTURE
1.Fibre Channel Ports

• 16 ports, universal (E, F, M, Ex, FL)

2. FCIP Ports

• 6 ports, 1 GbE (VE)

3. Scallability

• Full fabric architecture with 239 switches maximum

4. Fibre Channel Performance

• 2.125 Gbps line speed, full duplex
• 4.25 Gbps line speed, full duplex
• 8.5 Gbps line speed, full duplex
• Auto-sensing of 2 Gbps, 4Gbps and 8 Gbps port speeds
• Optionally programmable to fixed port speed
• Spped matching between 2, 4, 8 Gbps ports

5. FCIP Performance

• 1 Gbps line speed

6. ISL Trunking

• Up to eight 8 Gbps ports per ISL trunk Up to 64 Gbps per ISL trunk
• There is no limit to how many trunk groups can be configured in the switch

7. Fabric Latency

• 700ns witch no contention, cut-through routing at 8 Gbps maximum MTU Size
• 15000-byte Ethernet packets with FCIP

8. Classes of Services

• Class 2
• Class 3
• Class F (inter-switch frames)

9. Port Types

• FL Port
• F Port
• E Port
• Ex Port
• M Port (Mirror Port)
• self-discovery based on switch type (U Port) for FCIP
• VE Port (Wirtual E Port)

10. Data Traffic Types

• Fabric switches supporting unicast, mulicast (255 groups) and broadcast

11. USB

• One USB port for system log file downloads or firmware upgrades

12. Media Type

• Fibre Channel: Hot-pluggable Small From Factor Pluggable (SFP) and SFP+, LC connector; Short-Wave Laser (SWL) and Long-Wave Laser (LWL); distance depends on fiber-optic cable and port speed; supports SFP+ (2, 4 and 8 Gbps) and SFP (1, 2 and 4 Gbps_ optical transceivers
• 1 GbE: Hot-pluggable optical SFP, Short-Wave Laser (SWL) and Long-Wave Laser (LWL); GbE Copper SFP; built-in RJ-45 copper (two GbE ports); distance depends on fiber-optic or cooper cable and port speed

13. Fabric Services

• Advanced Zoning,
• Dynamic Path Selection (DPS)
• FDMI
• Enhanced Group Managment (EGM)
• Frame Redirection,
• Regisered State Change Notification (RSCN)
• Reliable Commit Service (RSC) and Simple Name Server (SNS)
• optional fabric services include Advanced Performance Monitoring
• Fabric Watch
• Integrated Routing and ISL Trunking

Comes as shown on picture, if something is noton the picture it's not included unless stated otherwise.
