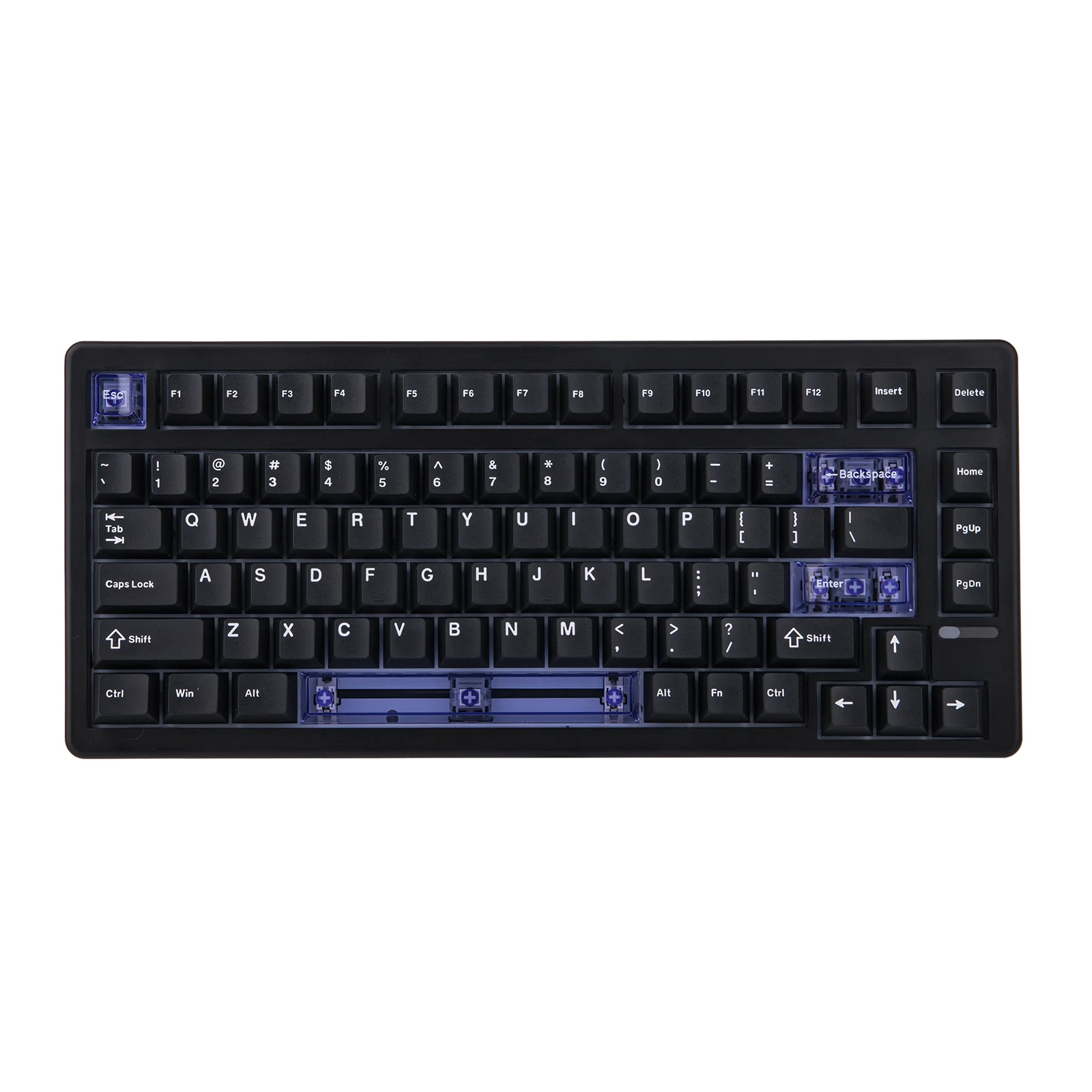

⌨️ EPOMAKER HE80 Hall Effect Gaming Keyboard
Ultra-Precise 0.02mm Actuation • 8K Polling • Magnetic Switches • DKS/SOCD Gaming Features
✨ Key Features🎯 Hall Effect Technology
Adjustable actuation from 0.1-3.3mm with 0.02mm precision. Magnetic switches deliver zero dead zone and 1 billion keystroke lifespan.
⚡ Ultra-Low Latency
8000Hz polling rate with 32K scan rate (128K per-key). Only 0.125ms latency - 8x faster than standard keyboards.
🎮 Gaming Features
SOCD: Snap Tap for instant directional priority
DKS: Program up to 4 functions per key based on travel depth
🔧 Hot-Swappable Design
75% compact layout with 82 keys. Pre-lubed magnetic switches compatible with other south-facing hall effect switches.
🌈 Per-Key RGB
Fully programmable south-facing RGB backlight. Customize colors, patterns, and effects via web-based driver.
🎵 Premium Acoustics
Creamy gasket-mount with 4 layers of sound dampening (latex sandwich foam, IXPE pad, silicone, bottom foam).
📊 Technical SpecificationsLayout75% QWERTY (82 Keys)Switch TypeEPOMAKER MagneX Hall Effect (Pre-lubed)Actuation Force37±5gf (30gf initial, 45gf max)Total Travel3.4mm (adjustable 0.1-3.3mm)Polling Rate8000Hz (125Hz-8KHz adjustable)Response Time0.125ms ultra-low latencyConnectionWired USB-C (USB-A to USB-C PBT Cherry Profile + PC TransparentMountingGasket Mount with FR4 PlateDimensions33.2 x 14.6 x 4.2 cmWeight830gSoftwareWeb-Based Driver (no download required)📦 Package Contents
- 1x USB-A to USB-C Cable
- 1x Multilingual Manual (EN/ES/FR/IT/KR/JP/CN)
- 3x Extra Magnetic Switches
- 3x Additional PBT Keycaps
- 1x 2-in-1 Keycap & Switch Puller
❓ Frequently Asked QuestionsWhat makes Hall Effect switches different?
Hall Effect switches use magnetic sensors instead of physical contacts, eliminating wear and enabling adjustable actuation with zero dead zone. They last over 1 billion keypresses.
Can I adjust actuation for individual keys?
Yes! Use the web-based driver to set custom actuation and release points per key (0.02mm precision) without downloading software.
What is SOCD and DKS?
SOCD (Snap Tap): Prioritizes the latest directional input for faster strafing in FPS games.
DKS: Assigns multiple functions to one key based on press depth or hold duration.
Is this compatible with Mac?
Yes, fully compatible with Windows, Mac, Linux, Android, PS4, and PS5. Adjust settings via any Chrome-based browser.
What typing angles are available?
Three adjustable angles: 6°, 8.5°, and 11.5° using the flip-out feet for ergonomic comfort.
