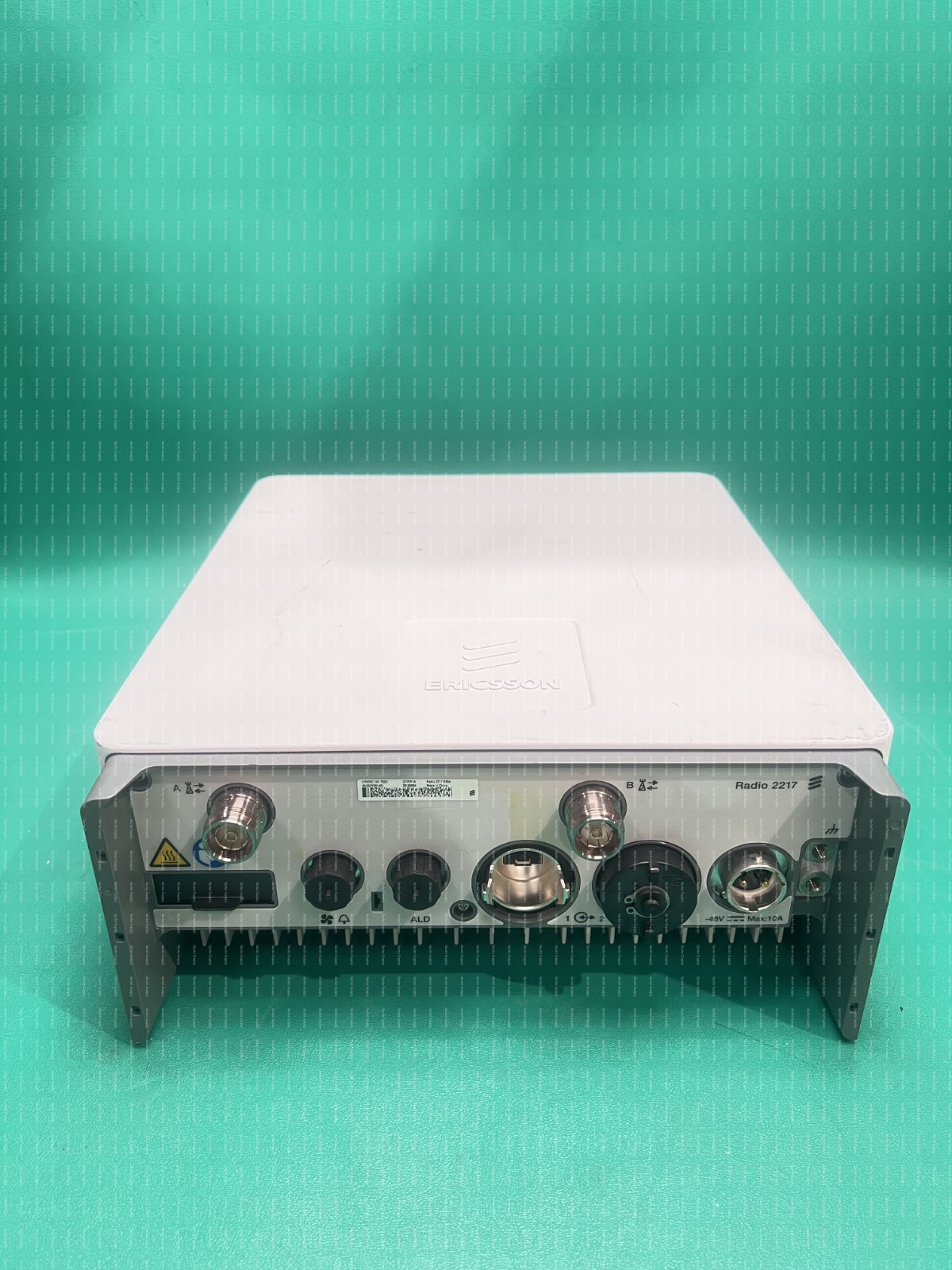

PART# KRC 161 703/1 R1A RADIO 2217 B66A

DESCRIPTION:KRC 161 703/1 RADIO 2217Multi-standard remote radio unit Radio 2217 B66A 2RX/ 2TXFrequency Range (MHz to MHz) B66: LTE, NRTX (DL): 2110 -2180 MHzRF BW: 70MHz & IBW:45MHzRX (UL): 1710 -1780 MHzRF BW: 70MHz Frequency Range (MHz to MHz) B66: WCDMATX (DL): 2110 -2155 MHzRF BW/IBW :45MHzRX (UL): 1710 -1755 MHzRF BW/IBW :45MHzConducted Declared Output Power (dBm)46,0Max output power per port 40 W Rat SC carrier Power (Max): WCDMA5MHz40WRadio Configuration:2 RX / 2TXDuplex mode:FDDRadio Access Technology, RAT(s):Single RAT :WCDMA, LTE, NR, NB-IoT (IB, GB, SA)Multi RAT : WCDMA,+LTE ; WCDMA,+ NR: LTE+ NR; LTE+ NB-IoTLTE+ NR + WCDMA; LTE+ NR + NB-IoT SA; LTE+ WCDMA+ NB-IoT SA;Supported Bandwidth(s) (MHz)NR: 5MHz, 10MHz, 15MHz, 20MHzLTE: 5MHz, 10MHz, 15MHz, 20MHzWCDMA : 5 MHzNB-IoT(SA): 200 kHz Maximum supported number of DL NR carrier per port3/BandMaximum supported number of DL LTE carrier per port3/BandMaximum supported number of DL WCDMA carrier per port8/BandNominal output power per Antenna Port / BandSRO / MRO: Single /Multi Carrier: 40W (46,0 dBm)Supported transmission modes:2X2 MIMO

MANUFACTURER:ERICSSON

CONDITION: USED, REMOVED FROM SERVICE IN WORKING ORDER

Please note: No other accessories, parts, cables, manuals, etc. are included besides what you see in the photograph(s)

WARRANTY: 30 DAYS

EQUIPMENT IS SAFELY PACKAGED USING ESD STANDARDS IN OUR ISO 9000/TL 9000 REGISTERED FACILITY

PLEASE CONTACT US IF YOU HAVE ANY QUESTIONS
