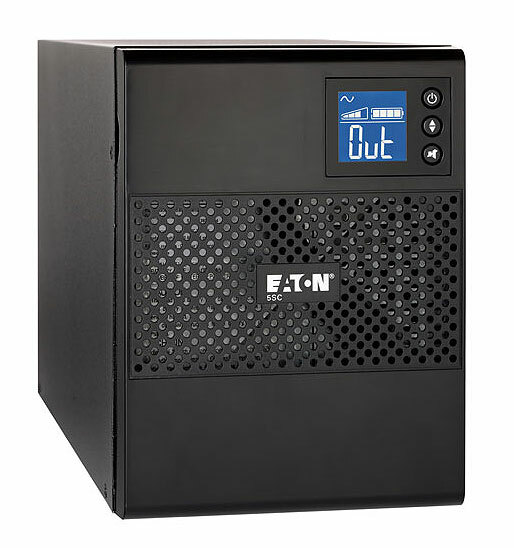

Eaton 5SC 5SC1500 1440VA / 1080W 120V Line-interactive Tower UPS 3 Year Warranty
GeneralTopologyLine InteractiveConfigurationTowerCatalog Number5SC1500ColorBlackRating (VA/Watts)1500/1080
Dimensions (H x W x D, inches)8.2 x 5.9 x 16.1Dimensions (H x W x D, mm)209 x 150 x 410Weight (kg)15.4Weight (lbs)34.0Warranty3-Year warrantycovering UPS and battery with a full UPS service plan and battery replacement after online registation.Contents
(Ships with the following items)5SC UPS
User manual CD
Eaton Intelligent Power Manager Software CD
USB cable
Serial Cable (RJ45 to DB9)
Important Safety Instructions
Limited Warranty DetailsEfficiencyUp to 94%Electrical InputConnection(1) NEMA 5-15P
Input Cord6 feet (1.8 meters)Input Voltage Range96 - 144 VacNominal Voltage120VacFrequency50/60 HzFrequency Range60 Hz: 55–65 Hz
50 Hz: 45–55 HzElectrical OutputNominal Voltage120V Default (100/110)Output Receptacles(8) NEMA 5-15R
Efficiency (Normal Mode)Up to 94%CommunicationsUser InterfaceGraphical display. UPS status in a single view.LEDsUPS on LEDCommunication PortsRS-232 (RJ45) port; USB port as standard (HID). 6-foot RS-232 and USB cables includedPower Management SoftwareEaton Intelligent Power Software SuiteCD (included)Environmental & StandardsRoHS ComplianceYesAudible Noise<55 dB at 1 meterOperating Temperature0 to 35°C (32°F to 90°F)Safety markingsCE/cULus/NOMEMC MarkingsIEC 62040-2:2006 Cat C2 / CISPR22 Class A / FCC part 15 Class AStorage Temperature0 to 40°C (32°F to 104°F)Relative Humidity0–90% non-condensing
