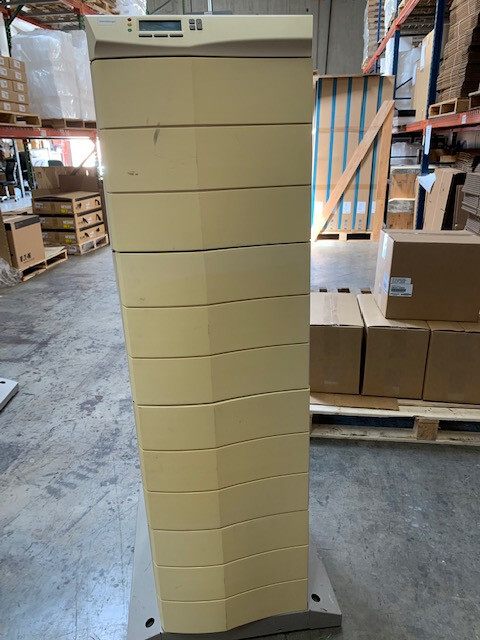

This is a used Eaton 9170+ 12 SLOT UPS with three ASY-0673 power modules (3KVA each) updated to the latest firmware. Ask us about installing new batteries in ASY-0529 modules that can be installed prior to shipping.
S/N#:C661N018KI035047
The Eaton® Powerware 9170+ UPS is uniquely designedto meet the ever-changing needs of data centers, networks, call centers andmore. Built for a global audience, the 9170+ is a scalable, modular, flexible solutionthat combines the highest level of reliability with the lowest cost ofownership in the 3–18 kVA range. This frame is updated to the latest Eaton firmware 2.34.
This unit is offered as a frame with Qty 3 Power Modules upgraded with latest Eaton firmware 2.36, but NO battery modules. The covers do fit correctly.
Please inquire about optional battery combinations or see our items for ASY-0529 battery modules.
Note that this unit will ship via LTL freight. Allow 24-48 hours for battery installationand handling.
Eaton UPS Part Number: 660C120AAAAAAAI
Electrical Input
Hardwired
Voltage 208-240VACor 200/100, 208/120, 220/110,240/120
Voltage Range 176-276
Input Power Factor .98
Frequency 50/60Hz (± 3Hz)
Electrical Output
Hardwired
Voltage 100-127/200-240V
On Utility Voltage ±3%of nominal
Regulation
On Battery Voltage ±3%of nominal
Regulation
Efficiency 88%normal operation
97% High performance (optional programmable)
Frequency Regulation ±3Hz online; ±0.1 Hz on battery
Communications
LCD Display 4x 20 character backlit display, programmable
Language Support English,French, Spanish and German
Communication slots 2Slots (standard)
Communication ports RS232,(DB9) contact closures (std)
SNMP capability SNMP/Webenabled
Emergency Power off Input for external EPO
(EPO)
General
Topology Trueonline, double-conversion
Diagnostics Fullsystem self-test on power up
UPS Bypass Automaticon overload or UPS failure
Shipping Dims: 48x40x66
Ship Weight: 320 LBS
