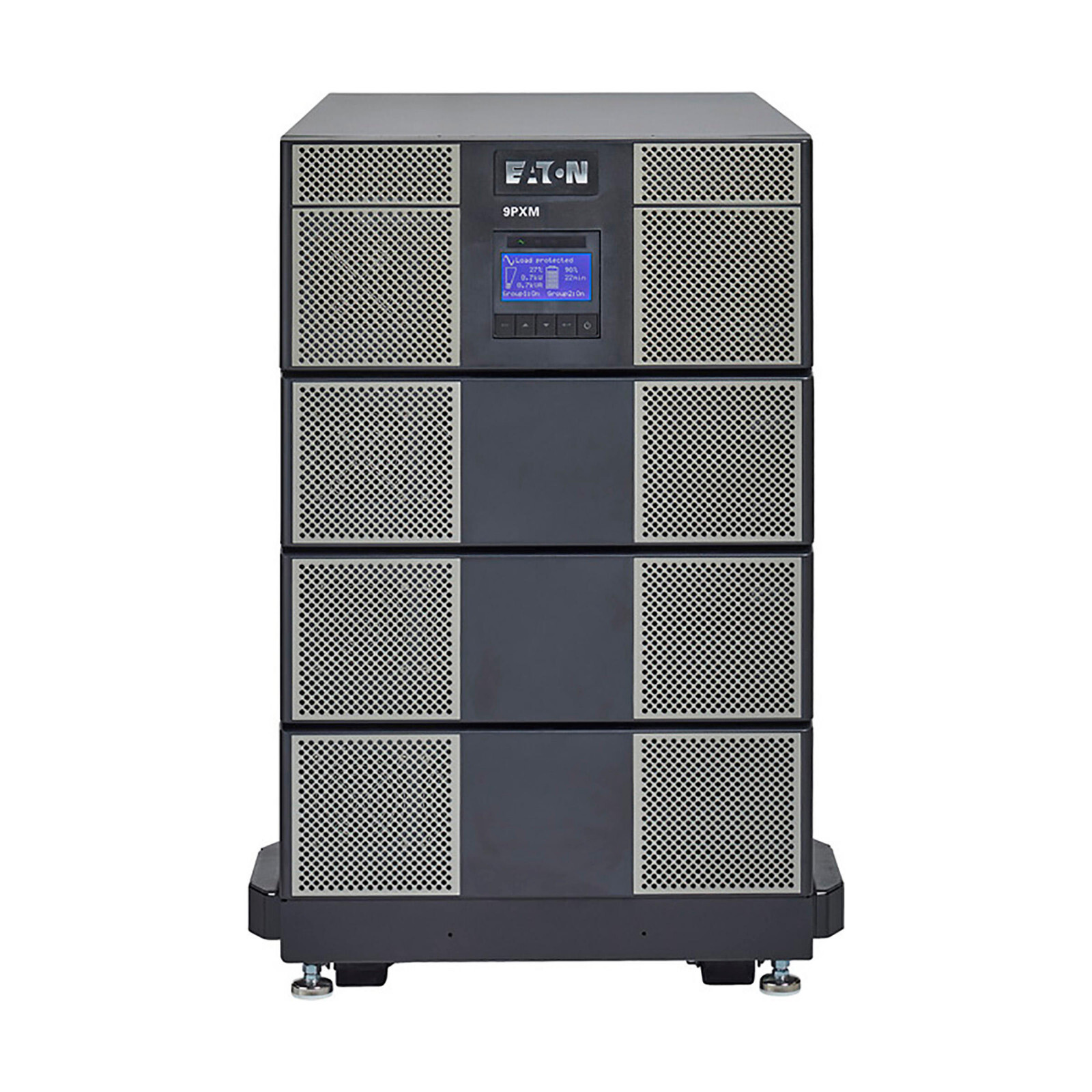

The Eaton 9PXM single phase UPS is a reliable online, high-frequency, double-conversion power protection that provides flexible solutions for mission-critical applications.
The versatile 9PXM is well suited for both the IT marketplace and for industrial/commercial applications. The 9PXM’s high power rating, small footprint and easy rack conversion make an ideal solution for an array of data center applications. The design features offer harmonious compatibility with 4-post or high density racks, PDU and network gear for seamless integration into an IT infrastructure.
Highlights:
- Form factor: Two tower sizes convertible to rackmount.
- Configurable back panel: Build-to-order configurations provide receptacle output options.
- Redundancy: N+X redundancy for power and logic eliminates system-level single point of failure.
- Scalability: Add power and battery modules to scale up power rating or add redundancy.
- Flexibility: Add battery modules to any slot for extended backup runtime in a single unit cabinet.
- Hot-swappable modules: Replace lightweight power and battery modules without shutting down.
Includes:
(1) Eaton 9PXM tower UPS 8-slot cabinet – convertible to rackmount (2) Eaton 9PXM split-phase power module 4 kVA (4) Eaton 9PXM battery module (2 per slot)(1) Network-MS Network-MS card, mini-slot, ethernet, sensor
Specifications:
Part number:
Input connection:
Hardwired
Receptacle:
Hardwired
Voltage:
120/208V
VA rating:
8kVA
Wattage:
7.2 kW
Waveform:
True sine wave
Temperature range:0° to 40°C (32° to 104°F)
Relative humidity:5-95% non-condensing
Dimensions (HxWxD):
25 x 17.5 x 34.5 in
Weight:
333 lbs
Warranty:
2 year warranty
