MAIN OVERVIEW FEATURES: Viewable
Screen Size: 19.5"S creen
Mode: Full
HDResponse Time: 20 msAspect
Ratio: 16:9
Mount Type: Flush Mount
Backlight Technology: LED
Maximum Resolution: 1920 x 1080Color
Supported: 16.7 Million Colors
Contrast Ratio: 3, 000:1
Brightness: 250 Nit
Touchscreen Type: Projected Capacitive
Multi-touch Screen: Yes
HDMI: Yes
USB: Yes
VGA: Yes
Display
Port: Yes
Operating
Power Consumption: 17.60
WColor: Black
VESA Mount Compatible: Yes
Height: 11.2"W
idth: 18.9"D
epth: 1.6"W
eight (Approximate): 10.36 lbPackage

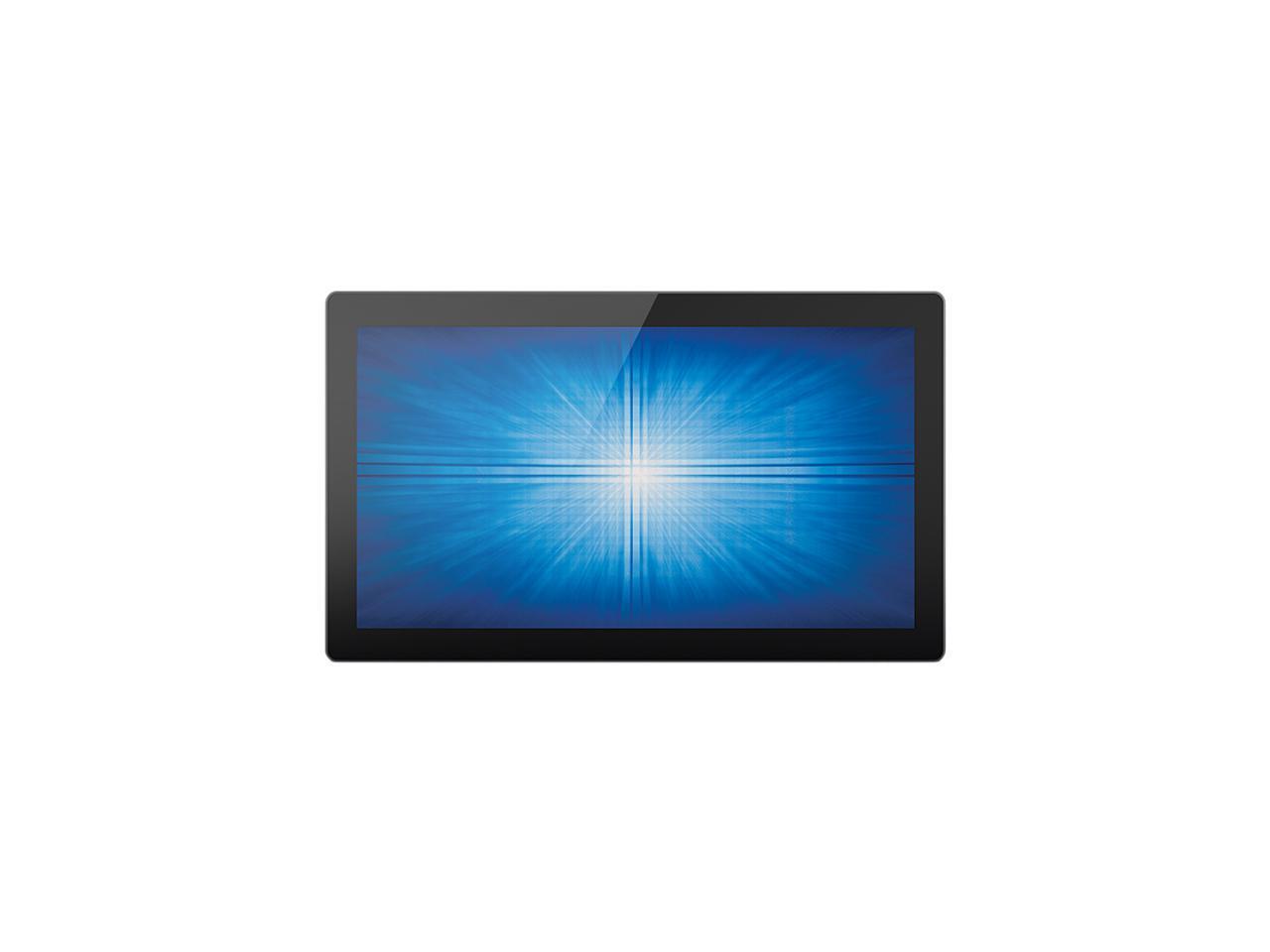

Contents: 2094L 19.5" Open Frame Touchscreen (Rev B) HDMI cable VGA Cable RJ45 OSD Remote Touch USB Cable User Manual CD Quick Install Guide Flush Mount Brackets w/Screws EEI Label Japan Class-B info sheet
Environmentally Friendly: Yes
Environmental Certification: T? V, RoHS, China RoHS, WEEE
Limited Warranty: 3 Year
Learn more about Elo Touch Solutions E331214ModelBrandELO TOUCHSYSTEMSModelE331214Cabinet ColorBlackDisplayTouchscreen TypeProjected CapacitiveScreen Size19.5"Recommended Resolution1920 x 1080Viewing AngleHorizontal: +/-89 degree or 178 degree total / Vertical: +/-89 degree or 178 degree totalBrightness225 cd/m2Contrast Ratio3000:1Response Time20msConnectivityConnectorsD-Sub, HDMI, DisplayPortPowerPower SupplyExternal DC - Optional power brick (sold separately)Power ConsumptionON: 17.6W SLEEP: 1.5W OFF: 0.5WConvenienceRegulatory ApprovalsAustralia RCM; Canada cUL, IC; China CCC; Europe CE TUV; Japan VCCI; Korea KCC; Mexico CoC; Taiwan BSMI; United States UL, FCC; International CB; RoHS, China RoHS, WEEE, IMERCVESA Compatibility - Mountable100 x 100mmFeaturesOn Screen DisplayAccessible through switches on the unit’s tethered OSD Control box. Controls: Menu, Up, Down, Select, Power Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Through Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese Lockouts: OSD, PowerOther Supported Resolutions640 x 480 60Hz 720 x 400 70Hz 800 x 500, 60Hz 800 x 600 56, 60Hz 1024 x 768 60Hz 1280 x 800 60Hz 1280 x 1024 60Hz 1366 x 768 60Hz, 60Hz RB 1440 x 900 60Hz, 60Hz RB 1680 x 1050 60Hz, 60Hz RB 1920 x 1080 50, 60HzInput Video FormatHDMI V1.3 Type A receptacle for HDMI input Analog VGA on Female DB-15 connector DisplayPort V1.1a - Supports later versions of Display Port video inputInput Video FrequencyHorizontal: 30 - 82 KHz Vertical: 50 - 75 HzDimensionsDimensions (H x W x D)Bezel: 11.03" x 18.73" x 1.71"Zero-Bezel: 11.22" x 18.87" x 1.59"Weight10.36 lbs.Temperature RangeOperating Temperature: 0 degree C to 40 degree C / 32 degree F to 104 degree F Storage Temperature: -20 degree C to 60 degree C / -4 degree F to 140 degree FHumidity RangeOperating: 20% to 80% Storage: 10% to 95%ShippingEnjoy fast and reliable shipping when you buy your products from Newegg. Our ordering and shipping services are among the best in the industry due to short processing times and a variety of shipping methods. Your orders are packaged at one of the many local warehouses across the country, minimizing delivery times and ensuring you get your purchases as soon as possible.PaymentsNewegg has partnered with PayPal to offer you the very best in payment services. PayPal allows you to buy with confidence, knowing your payments are processed quickly and securely with state-of-the-art encryption technology.ReturnReturns are subject to restocking fees of 15% - 30% of the purchase price and return shipping fees. For products that are eligible for return for replacement, the return shipping labels are free for returns for replacement of the same item within the applicable return policy period. Newegg does NOT charge for restocking fees or return shipping labels for returns of defective products, or if you received the wrong product, the product did not match what was shown on the Site, or we made some other shipping error, provided the item is returned within its return policy period, and in accordance with the Return Policy. For international buyers, items shipped internationally do not qualify for manufacturer warranties.
