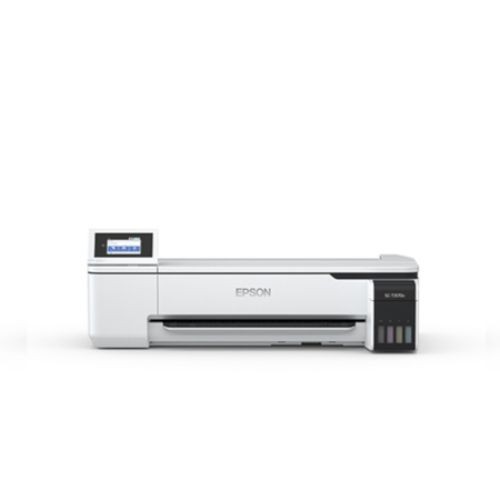

Epson SureColor T3170x 24" Desktop Printer SCT3170XProduct Overview

• Compact 24" wide-format desktop printer designed for professional, high-precision printing needs.
• Engineered for efficiency, the printer delivers A1/D-size prints in as fast as 34 seconds.
• Ideal for architects, engineers, graphic designers, and educators requiring high-quality prints of blueprints, posters, and schematics.
• Utilizes advanced cartridge-free printing technology with easy-to-fill ink bottles for reduced downtime and lower operational costs.
• Built with a sleek, minimalistic design to fit into tight office spaces while still offering robust performance.

Key Features

• Cartridge-Free Printing: Integrated high-capacity ink tanks with auto-stop features for clean and easy refills.
• PrecisionCore MicroTFP Printhead: Advanced technology ensures precise droplet placement, producing sharp lines and vivid imagery up to 2400 x 1200 dpi.
• Fast Productivity: Capable of producing full A1/D-size prints in just 34 seconds.
• Connectivity: Offers USB, Ethernet, Wireless LAN, and Wi-Fi Direct for seamless wireless printing across devices.
• User Interface: A 4.3" intuitive touchscreen enables fast navigation and printer management without the need for a computer.

Media and Handling

• Media Compatibility:
  • Rolls up to 24" wide
  • Sheets up to 11" x 17" via Auto Sheet Feeder
  • Single sheets up to 24" wide via top-loading
• Roll Handling: Adjustable 2-inch core roll holders, supports rolls up to 4.3" in diameter.
• Roll Cutting: Equipped with a high-speed internal rotary cutter for clean, accurate auto/manual cuts.
• Media Thickness: Supports up to 8.6 mil thick media for various applications.

Print Specifications

• Printing Technology: PrecisionCore MicroTFP with variable droplet sizes down to 4 picoliters.
• Nozzle Configuration: 800 nozzles per channel, with four channels total for full-color output.
• Maximum Print Resolution: 2400 x 1200 dpi for detailed imagery and text.

Compatibility and Environment

• Operating Systems: Compatible with Windows (XP through 10) and macOS 10.7 to 10.13.
• Environmental Specs:
  • Operating Temp: 50–95°F
  • Humidity Range: 20–80%
  • Sound Level: 49 dB(A) during operation
• Dimensions and Weight:
  • Without stand: 38" x 20" x 9", 60 lbs
  • With stand: 38" x 28" x 36", 84 lbs
• Power Consumption:
  • Printing: Approx. 28 W
  • Ready Mode: Approx. 8 W
  • Sleep Mode: Approx. 1.6 W

Accessories

• Included in the Box:
  • SureColor T3170x Printer Unit
  • Full Set of Initial Ink Bottles (140 mL)
  • Start Here Guide
  • User Manual
  • AC Power Cable
• Optional Items:
  • Print Stand
  • Replacement Ink Bottles:
    • Black (T49H100)
    • Cyan (T49H200)
    • Magenta (T49H300)
    • Yellow (T49H400)
  • Media Roll Accessories (2” core adapters)
  • Extended Service Plans (1 to 4 years with next-business-day exchange options)

Additional Highlights

• Eco-Conscious Design: ENERGY STAR qualified and RoHS compliant.
• Country of Origin: Manufactured in Indonesia with quality and durability in mind.
• Warranty: Comes with a 1-year standard limited warranty and access to telephone support.
• Printer Language Support: ESC/P raster, HP-GL/2, and HP RTL for advanced print compatibility.
