Ergotron HX Wall Monitor Arm Mount 45-478-216 -- READ!!!!

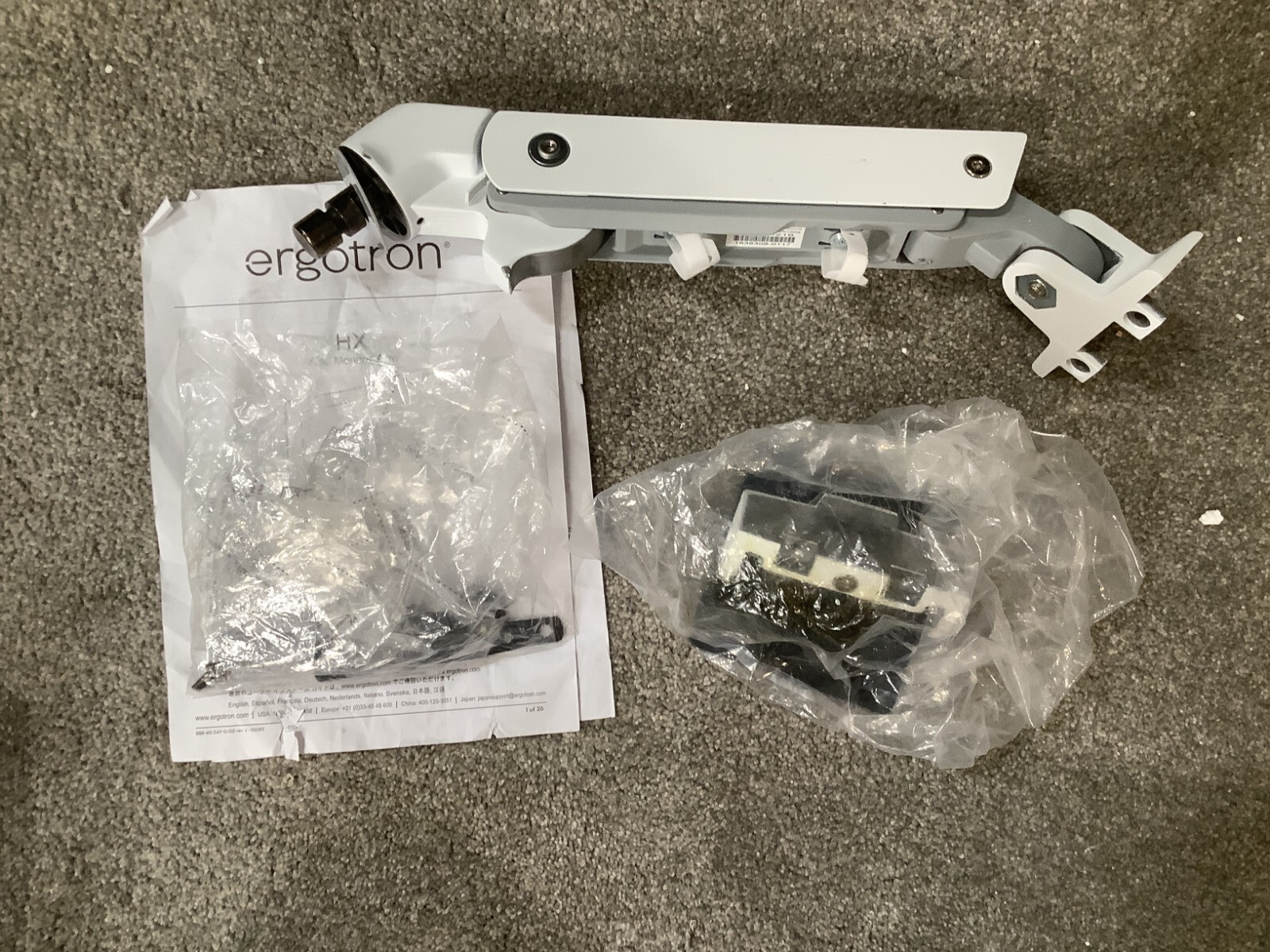

AS IS - NO RETURNS! Unit has some scuffs and scrapes & excess oil on springs. Missing mount base arm, clamp mount, and 3 parts of the clamp. Great for parts or repair - we do not have time to mess with it. Our loss is your gain! Save $$$!
Mount your compatible monitor to the wall with the whiteErgotron HX Wall Mount Monitor Arm. It supports displays up to 49" weighing between 20 and 42 lb and allows you to tilt the display from -5 to 70°, pan 360°, and rotate your screen up to 180° to adjust the screen to suit both the content being viewed and the environment. The HX Wall Mount Monitor Arm also comes equipped with Constant Force technology to ensure every adjustment made to the monitor arm is effortless.
Comfortable FitOffers ergonomic monitor positioning using Constant Force Technology.Rotation StopAvoid hitting cubicle walls with a rotation stop on the base.Saves SpacePlace your monitor where you like for the best view and open up valuable work area.Sleek BuildCables stay hidden under the arm and through the extension.Sustainable, Quality DesignBIFMA level 2 certified for a low environmental and social impact. The mount is also built for thousands of movements by passing 10,000-cycle test.Additional Features
- ETL Environmental VOC+ certified
- OSHPD preapproved with wall track installation
- Arm folds back over the base into a compact retracted position for tucking under your system's furniture storage shelves or cabinets in space-constrained areas
- Portrait/landscape rotation with lockout
- Streamlined cable management routes cables under the arm and within the extension
- Monitor can be rotated 360° at the connection point of the arm and extension; rotation is restricted to 180° at the connection point of the extension and base
- Attaches directly to sturdy vertical surfaces, wood studs, or (with an optional bracket) wall tracks
- Works with the ultra-wide, curved Samsung 49" Odyssey G9 monitor with the optional Heavy-Duty Tilt Pivot
Key SpecsSupported Screen SizesUp to 49" / 124.5cmWeight Capacity42lb / 19.1kgMounting-Hole Pattern75 x 75 mm
100 x 100 mm
200 x 100 mm
200 x 200 mmShowLessTilt Adjustment-5 to +70°Pan Adjustment-90 to +90°Swivel AdjustmentNoCompatibilitySupported Screen SizesUp to 49" / 124.5cmWeight Capacity42lb / 19.1kgMounting-Hole Pattern75 x 75 mm
100 x 100 mm
200 x 100 mm
200 x 200 mmNumber of Displays Supported1AdjustmentsTilt Adjustment-5 to +70°Pan Adjustment-90 to +90°Swivel AdjustmentNoVertical Adjustment11.5" / 29.2cmRotation Adjustment-180 to +180°Level Alignment PortraitGeneralArm Length18.1" / 460mmIn-Wall/RecessedNo,Mounting RequirementsSingle StudDistance from Mounting Surface7.2 to 24.8" / 18.2 to 63.00cmWall Plate Size1.8 x 6.2" / 4.6 x 15.7cmWeight11.7lb / 5.3kg
