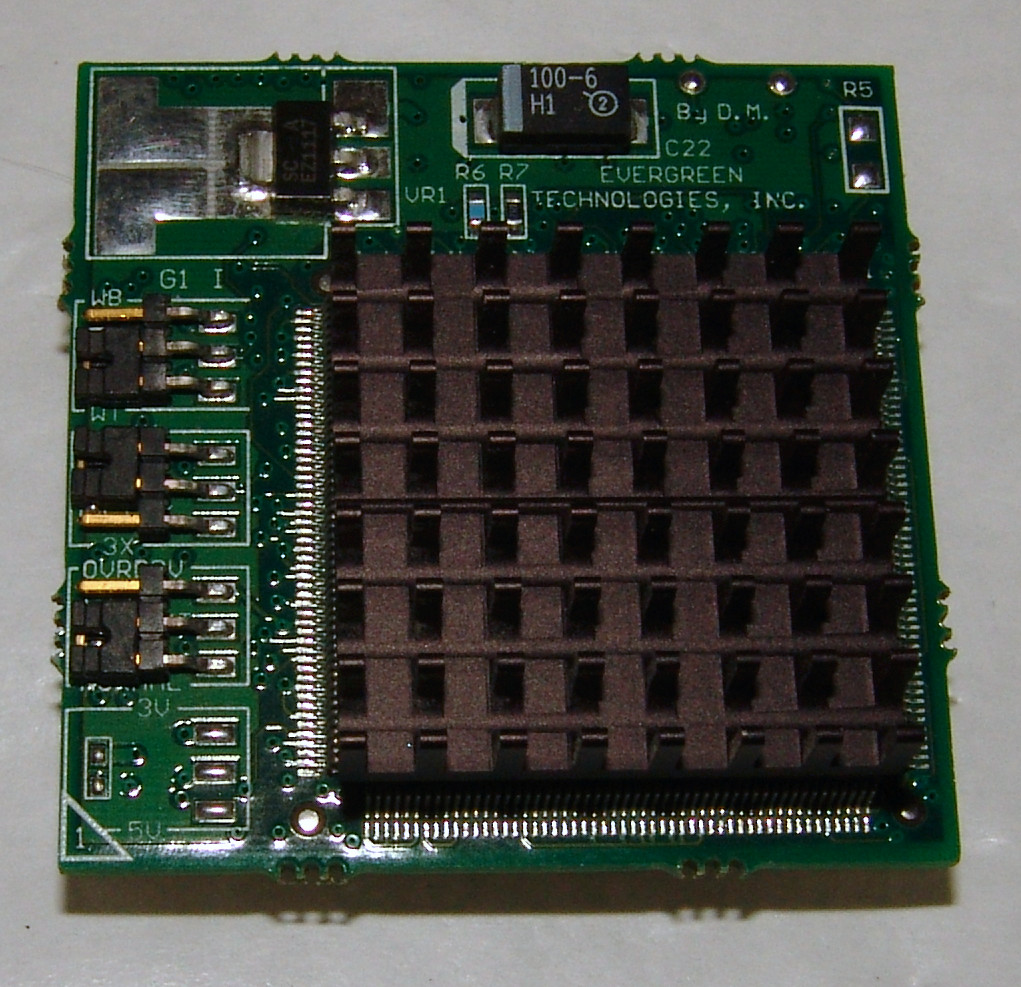

Evergreen Technologies 586 133 Mhz Socket 3 Overdrive CPU
This CPU is an Evergreen Technologies 586 133 Mhz Socket 3 Overdrive CPUand was pulled from a working system.
It is a very rare "Overdrive" CPU for old Socket 3 mainboard which only have 5 volt CPU support.
Internally it uses the AMD 5x86 133 Mhz in combination with voltage regulation to be able to use it on older 5V socket 3 boards. You can of course use it on any "modern" socket 3 board with 3.3 volts as well. Just configure it like an AMD 5x86 133 Mhz.
It was tested on a Socket 3 mainboard and is working fine.
This Evergreen Technologies 586 133 Mhz CPU is as fast as the AMD 5x86 133 Mhz or about as fast as a Pentium 90 and is the optimal choice if you want to build a DOS retro system, e.g. to play Monkey Island(tm) and want to use your favourite socket 3 mainboard.
Under the picture you can find the specs of this CPU.
General informationTypeCPU / MicroprocessorFamilyAMD 80486CPU part number
- Evergreen Technologies (Am486DX5-133V16BHC)
Frequency133 MHzBus speed33 MHzClock multiplier4Package208-pin Shrink Quad Flat PackSocketSQFP208Size1.1" x 1.1" / 2.8cm x 2.8cmArchitecture / MicroarchitectureInstruction setx86Manufacturing process0.35 micron CMOSData width32 bitFloating Point UnitIntegratedLevel 1 cache size16 KB cachePhysical memory4 GBVirtual memory64 TBLow power features
- Auto Halt power-down state
- Stop Grant state
- Stop Clock state
On-chip peripheralsMemory management unitElectrical / Thermal parametersMin/Recommended/Max V core3.15V / 3.3V / 3.6VMinimum/Maximum operating temperature0°C - 85°CMaximum power dissipation3.35 Watt Notes on Evergreen 133 MHz
- The CPU comes with active power regulation which allows the use of this CPU on older 5V only boards. It can be used with 3.3V as well.
