Model:PCE-U304A

Max Speed:5Gbps

USB Ports:4X USB-A

USB Standard:USB 3.0

Plug in Interface:PCIe 2.0 X1 Interface

Power Supply:Smart Power Control Technology

Compatible PCs Type:Standard Size PCs,NOT for Slim PCs

Compatible System:1. Need to install driver on Windows Server 2003, 2003R2, 2008, 2008R2, XP, Vista, 7

(32/64bit) system. 2. Driver free on Windows 8.0, 8.1, 10, 11 (32/64bit) and Windows Server 2012, 2016, 2019

system. 3.NOT support MAC OS and Linux system.

LTERIVER Smart Power Control Technology

The LTERIVER Smart Power Control Technology isa new solution to add enough power supplyon USB expansion cards. The old type USB host controller need to install additional power cable or cannot light up device. We designed4X voltage transformerto pick up power from mother board, convert 12V/3.4A power to 5V/8A power andallocate 5V/2A to each USB 3.0 port. Meanwhile, the4X fuse and 4X solid capacitorprotect connected USB 3.0 device fromoverload, over-current, over-heat. Make sure all connected USB device works in full performance. Keep users’data safe and complete.

1. Add4 super speed USB 3.0 5Gbps(total bandwidth) ports on desktop PCs for video, audio or large data files transfer. Active more USB device on desktop PCs and Servers with this added-on USB expansion card.

2.Need to install driver on Windows Server 2003, 2003R2, 2008, 2008R2, XP, Vista, 7 (32/64bit) system. Driver free on Windows 8.0, 8.1, 10, 11 (32/64bit) and Windows Server 2012, 2016, 2019 system.

3.WARNING:1. Works on full size PCs only,NOT for slim PCs. 2. Check If PCs haveempty PCIE slotfor PCIE USB card before purchase. 3. Install driver before using for some old version system.

1.Select theVIALab USB 3.0 Host Controller, will Compatible withINTEL, AMD and ARMHardware Platform.

2.PCIE 2.0 X1design willcompatible with PCIE 2.0, 3.0, 4.0protocol onPCIE X1, X4, X8, X16 slot.

3. Built inLTERIVER Smart Power Control Technology. 4X voltage transformer make sure each USB ports get 5V/2A power.4X fuseprotect connected USB device from overcurrent, overload.4X solid capacitorkeep all USB 3.0 ports worksstable and safe.

Product Description:

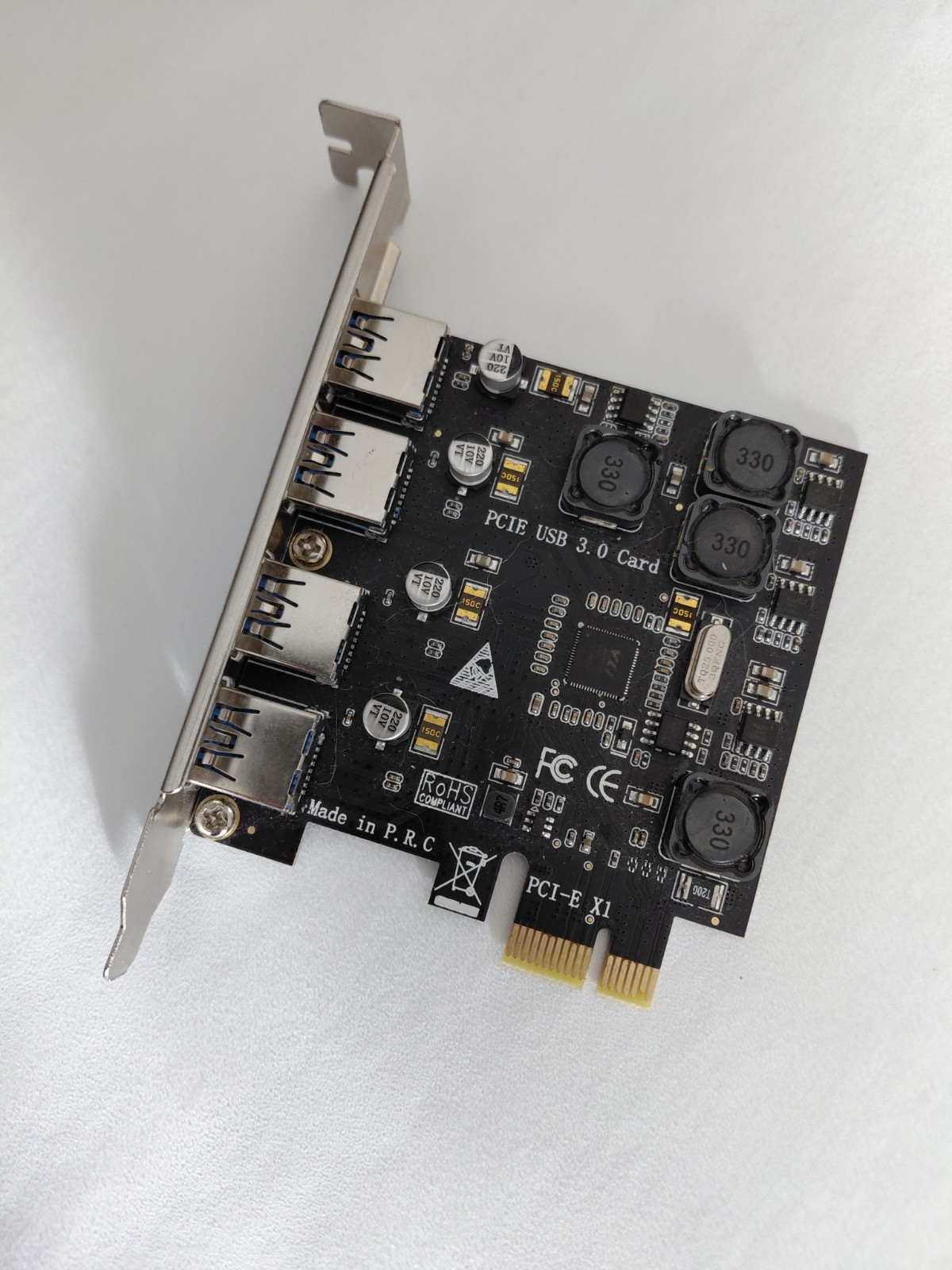

PCE-U304Aallow users add4 USB 3.0 portson desktop computers to light up more USB device such as mice, keyboards, hubs, flash drive, hard drive etc. It will provide5GbpsUSB 3.0 total speed for video, audio or large data files transfer. Built inLTERIVER Smart Power Control Technologymake sure connected high power consumption device always works in full performance.

LTERIVER Smart Power Control Technology

The LTERIVER Smart Power Control Technology isa new solution to add enough power supplyon USB expansion cards. The old type USB host controller need to install additional power cable or cannot light up device. We designed4X voltage transformerto pick up power from mother board, convert 12V/3.4A power to 5V/8A power andallocate 5V/2A to each USB 3.0 port. Meanwhile, the4X fuse and 4X solid capacitorprotect connected USB 3.0 device fromoverload, over-current, over-heat. Make sure all connected USB device works in full performance. Keep users’data safe and complete.

System Compatibility:

1.NOT support MAC OS and Linux system.

2. Driver free on Windows 8.0, 8.1, 10, 11 (32/64bit) system.

3. Need to install driver on Windows Server, XP, Vista, 7 (32/64bit) System.

4. Windows Server: 2003, 8008, 2008R2 need to install driver, Windows Server 2012, 2016, 2019, 2022 support plug and play.
