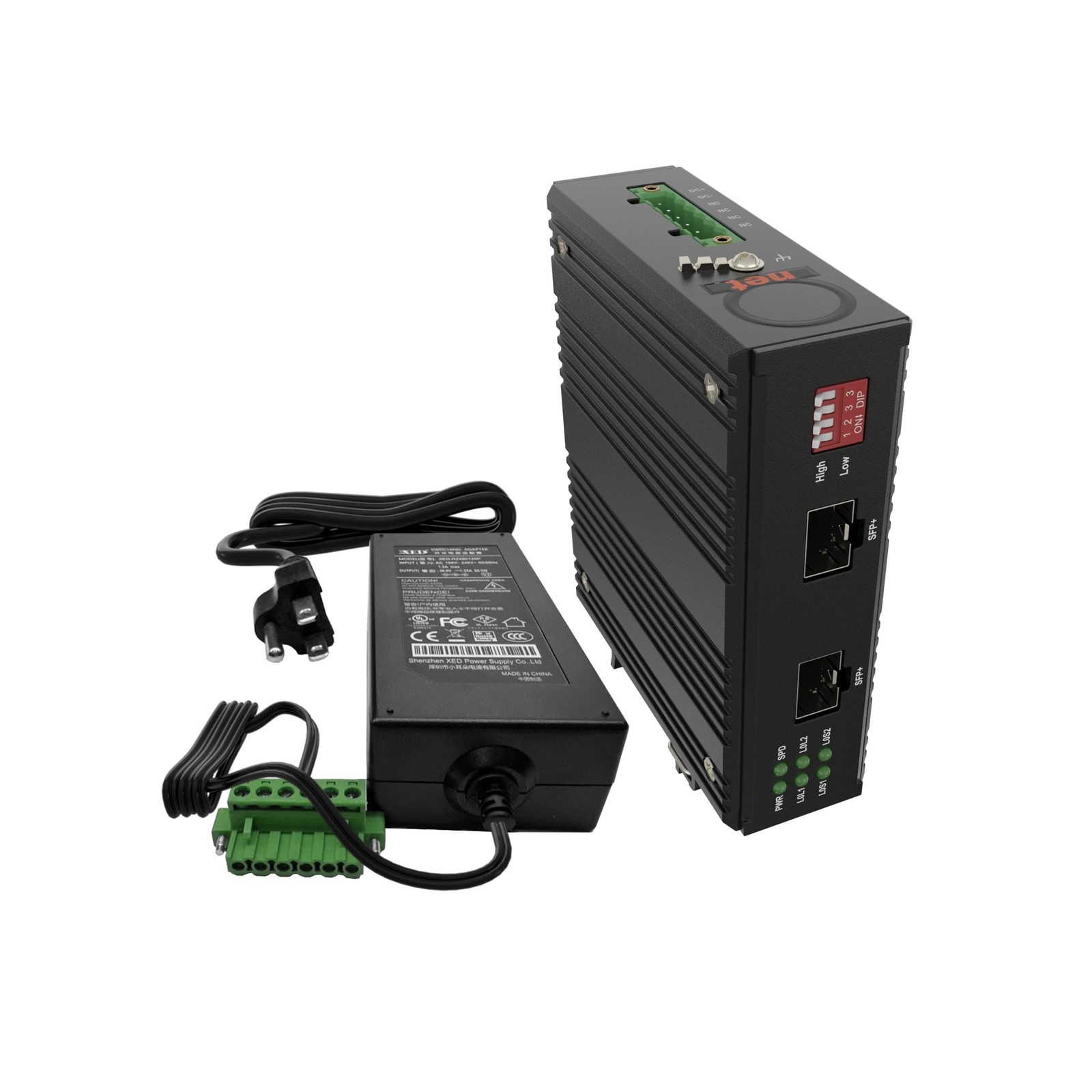

Extended Temperature Range 10G SFP+ to SFP+ Fiber to Fiber Media Converter - DIN Rail - 10G OEO 3R Transparent Repeater - 2 x Open SFP+ Slots - Supports 10GB SFP+ or 1GB SFP's - Without Transceivers
Product Details
- Brand: ADnet
- Recommended Uses For Product: Network
- Power Source: DC
- Model Name: AN-UM-2-SMC-10G-I
- Color: Black
- Product Dimensions: 4.72 x 4.33 x 1.38 inches
- Item Weight: 2 pounds
- Item model number: AN-UM-2-SMC-10G-I
- Date First Available: November 20, 2019
- Manufacturer: AD-net Technology, CO., LTD (Taiwan)
- Extended Operating Temperature Range -40C to +85C (-40F to 104F) & DIN rail support
- Durable & Reliable 3R OEO 10G Re-amplification, Re-shaping And Re-timing Device - Signal Repeater, Converter and Extender all in the same box!
- Use it as a Single to Multimode Media Converter - 2 X standard open SFP+/SFP slots for any type of SFP+ modules
- Use it for converting & matching wavelengths when interconnecting third party 10Gbps or 1Gbps network devices - i.e. 850 nm to 1300/1310 nm, 1310 nm to 1550 nm, even DWDM and CDWM wavelengths are supported. Just find the correct and matching SFPs for both slots!
- Wide range of protocols supported: 10G Ethernet, 10G WAN (10Gbps), 10G LAN (10.31Gbps), 8.5G Fiber Channel, 10G LAN with 255/237 FEC coding (11.09Gbps) and more!
10G Extended Temperature Range SFP+ to SFP+ fiber to fiber converter with DINrail mount support is a fiber-to-fiber type 10Gbps device that acts not onlyas fiber optic media converter or as a fiber optic repeater for long-haultransmission, but is an all in one solution to get 10GE fiber network to beRe-Amplificated, Re-Shaped and Re-Timed. 3R Repeater / Extender / Mediaconverter for all your 10G fiber network mode & wavelength conversion needs.More than that - unit supports not only 10G SFP+ type modules - but, also 1G(1.25G) standard MSA compliant SFP transceivers are supported - just selectthe mode using the dip switch on the front panel! It is commonly used innetwork backbones (SAN, LAN, MAN, WAN). Supports various protocols such as SDH/ SONET STM-64 / OC-192, 10G Fiber Channel, 10G Ethernet, etc. can be used ina telecommunications room, R&D lab, data center, etc. Supports any standardSFP+ 10G or 1G modules with 850nm, 1310nm / 1550nm / CWDM / DWDM opticalwavelength conversion. Product featuresJumbo frames supportTransparent signaltransmission and low latencyThe rate supports 8.5Gbps~11.7Gbps or also 1.25G(selectable by dip switch)Supports OEO 3R functions: signal amplification andregeneration, waveform shaping, clock retimingEasy installation - Plug &PlayWide Range Protocol Support 8.5G Fiber Channel SONET OC-192, SDH STM-64(9.95Gbps) 10G WAN (10Gbps) 10G LAN (10.31Gbps) OTN OTU-2 (G.709) (10.70Gbps)10G LAN with 255/237 FEC coding (11.09Gbps) 10G Fiber Channel (11.32Gbps) 10GPOS Technical ParametersTransmission rate:8.5Gb/s-11.7Gb/sInterface Type: SFP+standard slotPower supply input voltage:DC 12V~48V(AC adapter comes inset)Power consumption:≤4WOperating temperature:-40°C to +85°C (-40°F to 104°F)Size 110mm(L)104.5(W)35mm
