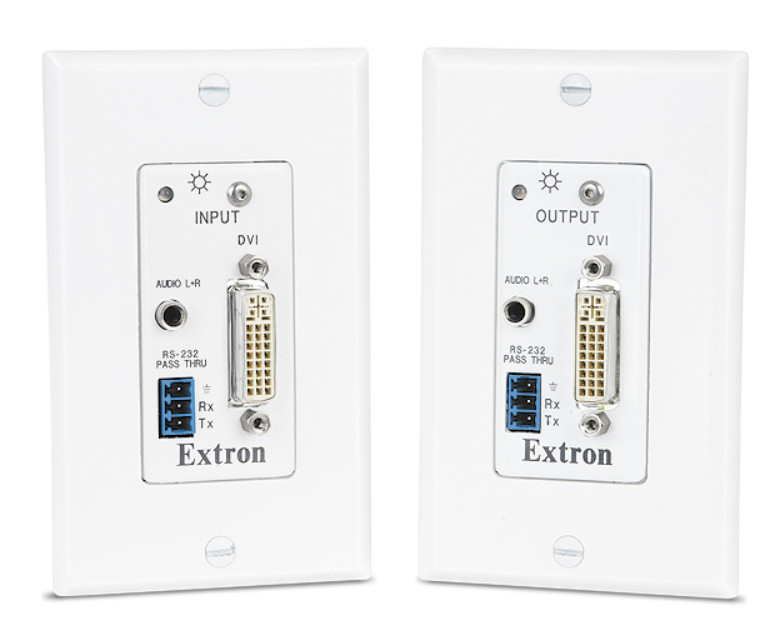

Extron DVI Twisted Pair Transmitter/Receiver SetWhiteDVI 201 A D TX/RXNew in BoxIncludes: Transmitter, Receiver, Mud Rings, Faceplates, Power Supply, Instruction Manual, Connectors

The ExtronDVI 201 A Dis a decorator-style transmitter and receiver set that enables DVI or HDMI signals to be carried over distances significantly beyond the capability of standard DVI or HDMI cables. In addition, it can accept and transmit stereo audio and RS-232 or IR signals. Linked together using two economical and integration-friendly shieldedCATx or Extron STP201 cables, the DVI201AD transmitter and receiver work together to send single link DVI-D or HDMI signals over 200feet (60meters) for HDTV and XGA1024x768.

The DVI 201 A D offers an ideal, cost effective means for extending digital video, multi-channel audio, and control signals from DVI or HDMI-equipped devices. The HDCP-compliant DVI201AD enables the long distance transmission of HDTV signals with HDCP for copy protection of digital television broadcasts and high resolution digital video output from DTV tuners, DVRs, and Blu-ray Disc players. The DVI201AD is fully compatible with HDMI signals when used with the appropriate adapters from Extron.

Several features facilitate convenient, streamlined system integration. The DVI201AD supports transmission of balanced or unbalanced stereo audio signals, when a separate audio cable is installed between the transmitter and the receiver. RS-232 or IR signals from a control system can also be transmitted over the same cabling as the DVI signals, providing remote control of a projector or flat-panel display. An LED indicator provides a quick means of verifying power and signal presence. Additionally, either the transmitter or receiver can be remotely powered over this cabling, so that external power is necessary for only one of the devices.

The DVI 201 A D can be used with shielded CATx cables to extend 1920x1200 and HDTV 1080p/60 signals up to 100feet (30meters). However, when used with ExtronSTP201 Shielded Digital Twisted Pair Cable, these signals can be extended up to 150feet (45meters). ExtronSTP201 cables are specially designed for superior digital signal transmission performance, featuring an S/FTP design with individually foil wrapped conductor pairs and overall braided shield for noise immunity and low crosstalk.

The DVI 201 A D transmitter and receiver are designed for wall-mounting with the included decorator-style wallplates. Both devices are also available separately, and may be matched with the standard desktop DVI201 transmitter or receiver to suit the installation requirements of a specific application.

Features

• Transmits single link DVI-D and control signals over CATx cables— Standard UTP/STP cables provide an economical, easily installed cable solution.
• Inputs: DVI-I connector, captive screw connector, and 3.5mm stereo mini jack - DVI201ADTx
• Outputs: DVI-I connector, captive screw connector, and 3.5mm stereo mini jack - DVI201ADRx
• Sends 720p, 1080i, and XGA (1024x768) signals over 200feet (60meters), 1080p/60 and 1920x1200 signals over 100feet (30meters) with shielded CATx cable— Extron STP201 Shielded Digital Twisted Pair Cable allows 1080p/60 and 1920x1200 signals to be sent 50% further than with shielded CATx cable.
• Extron strongly recommends using individually shielded twisted pair cabling for optimal performance
• Extron STP201 Digital Twisted Pair cable provides added protection from outside interference and increases overall signal transmission distance
• Supports EDID and HDCP transmission— DDC channels are actively buffered, allowing pass-through of EDID and HDCP information to attached display.
• Transmits additional stereo audio signals— The DVI201AD can send balanced or unbalanced stereo audio signals that accompany the video, over a separate audio cable.
• offerirectional RS-232/IR pass-through— offerirectional RS-232 control or IR signals can be transmitted alongside the video signal, so that the remote display can be controlled without the need for additional cabling.
• Remote powering of transmitter or receiver— Only one power supply is necessary to power both devices.
• LED indicator for signal presence and power
• Fully supports HDMI signals when used with optional Extron HDMI-DVI adapters— Supports HDMI embedded audio and CEC - Consumer Electronics Control signal transmission.
• Compatible with all HDMI201, DVI201, MTP/HDMIUR, and MTP/HDMIUTAD models— Enables mixing and matching of desktop and wallplate transmitters and receivers to meet application requirements.
• Mounts in an included decorator-style wallplate— The DVI201AD transmitter and receiver can be installed with a one-gang electrical box or Extron MR100 Mud Ring, part # 70-519-12.
