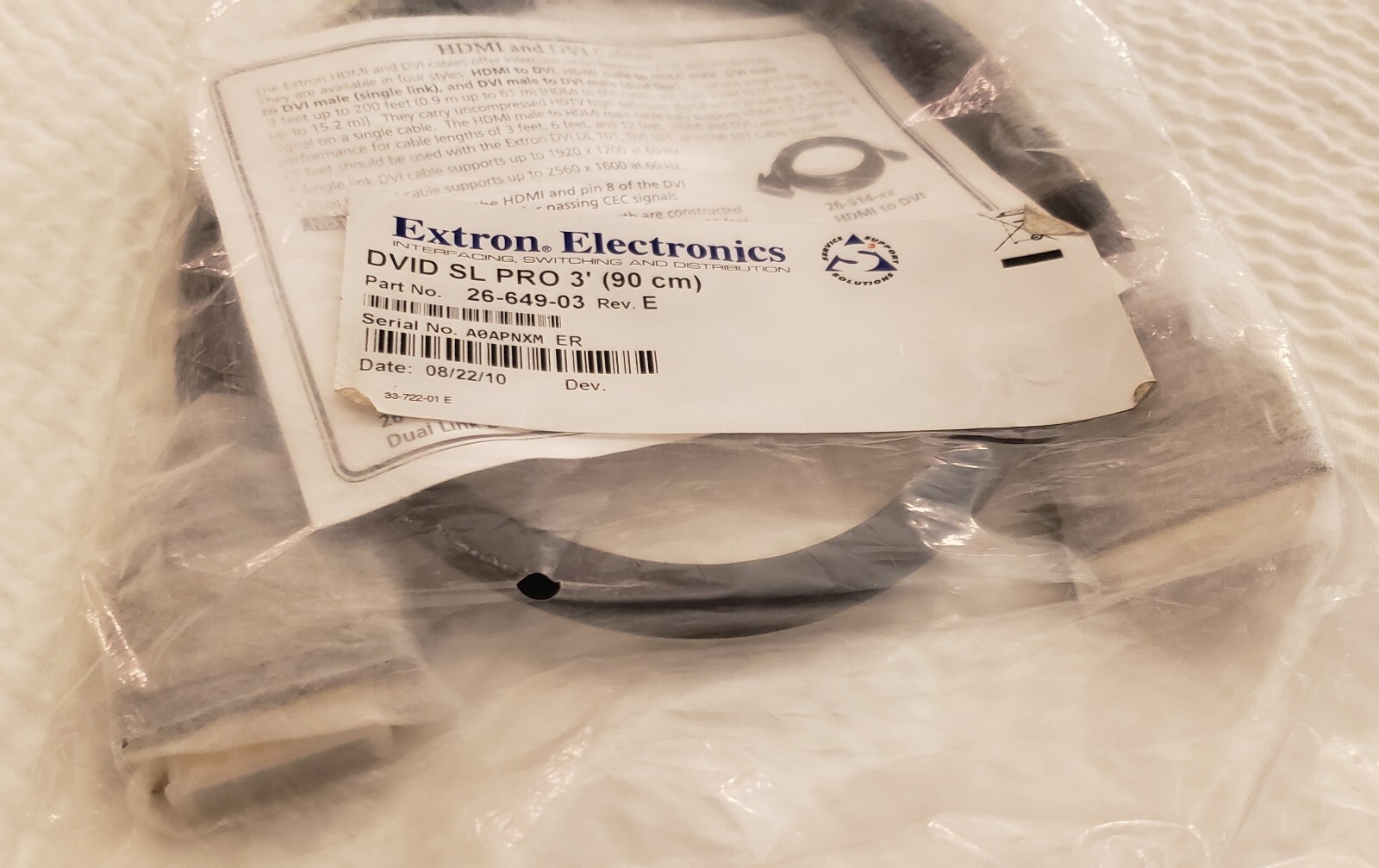

The ExtronDVIDSLProcable assemblies are engineered to support the high resolution demands of single link DVI-D signals. Extron superior quality and high performance DVIDSLPro cablessupport resolutions to 1920x1200 @ 60Hz and 1080p/60. Cables are constructed with 22AWG copper wire for optimal performance. When used with the ExtronDVI 101 cable Equalizer, the longer length cables of 75 to 200feet offer an ideal solution for extending single link DVI-D signals up to 1920x1200 @ 60Hz. The DVIDSLPro assemblies are available in lengths from 25' to 200' (7.6m to 60.9m).

Features

• High performance single link DVI cables
• 1080p/60 verified
• Supports single link DVI-D signals up to 1920x1200 @ 60Hz and 1080p/60—
  - Data rates to 4.95Gbps
  - Refresh rates to 60Hz
  - Color depth to 24bits - 8bits per color
• Available in lengths from 25feet to 200feet (7.6m to 60.9m)—
  - Supports 1920x1200 @ 60Hz and 1080p/60 up to 75feet without a cable equalizer
  - Supports 1920x1200 @ 60Hz and 1080p/60 up to 200feet with DVI101 cable equalizer
• 22 AWG copper wire construction
• Gold plated contacts
• NEC CM rated

DVID SL Pro 1.0Data rateSupports up to 4.95 GbpsMaximum resolution1920x1200 @ 60 HzVertical frequencySupports up to 60 HzRegulatory complianceSafetyCable: UL Listed as type CMTemperature ratingMinimum: -25 °C
Maximum: 75 °CVoltage30 VPair impedance100 ohms ±10 ohmsAttenuationAt 825 MHz: ≤8.2 dB per 10 m, per DVI 1.0 standardFEXT≥20 dB per 10 mSkew12 feet and shorterIntrapair≤300 ps per 10 mInterpair≤2.42 ns per 10 m25 feet and longerIntrapair≤350 ps per 12 mInterpair≤2.42 ns per 12 mGeneral — physical characteristicsConnector type1 male DVI-D single link to 1 male DVI-D single linkContactsGold platedMaterial12 feet and shorterConductors: silver coated, tinned copper
Drain wire: tinned copper
Jacket: PVC25 feet and longerConductors: tinned copper
Drain wire: tinned copper
Jacket: PVCConductor guage12 feet and shorterConductors and drain wire: 24 AWG25 feet and longerConductors and drain wire: 22 AWGConnector dimensions2.08" L* x 1.55" W x 0.62" thick
(52.07 mm L* x 39.2 mm W x 15.7mm thick)
*Length includes plug.12 feet and shorterCable outer diameter0.30" (10.0 mm)Bend radius4.20" (106.0 mm)25 feet and longerCable outer diameter0.47" (12.0 mm)Bend radius4.50" (114.3 mm)

Note: Cables up to3 feet (90 cm)in length are measured neck-to-neck, between the strain reliefs. Cables longer than3 feet (90 cm)are measured tip-to-tip, including connectors.
