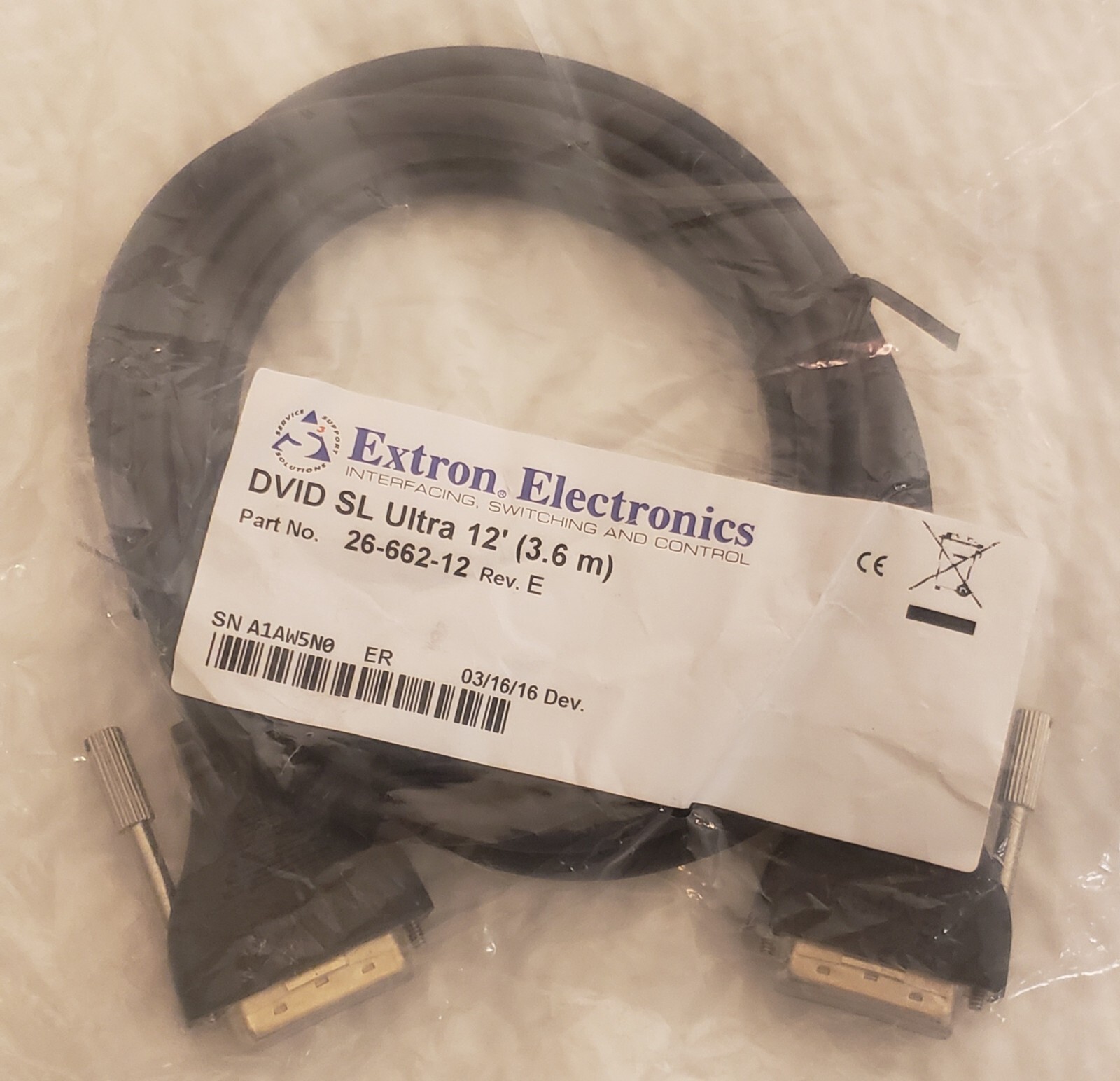

The ExtronDVID SL Ultra Seriescables are designed to transmit high resolution single link DVI-D signals. The DVIDSLUltra Series is engineered with Extron-exclusive ultra-flexible, 30AWG cable and features a low bend radius and compact, gold-plated connectors. They are ideal for applications with tight equipment racks or AV presentation furniture, or with wall-mount or pole-mount displays. The DVIDSLUltra cables support resolutions up to 1920x1200 @ 60Hz and 1080p/60 and are available in lengths from 1.5feet to 15feet (0.4m to 4.5m).

Features

• Certified for use with AVEdge, Cable Cubby®, and HSA surface access enclosures
• Ultra flexible single link DVI cables
• 1080p/60 verified
• Available in lengths from 1.5 feet to 15 feet (0.4m to 4.5m)
• Supports single link DVI-D signals up to 1920x1200 @ 60Hz and 1080p/60:
  - Data rates to 4.95 Gbps
  - Refresh rates to 60Hz
  - Color depth to 24 bits - 8 bits per color
• 30 AWG copper wire construction
• Gold-plated contacts

DVID SL Ultra Series 1.0Data rateSupports up to 4.95 GbpsMaximum resolution1920x1200 @ 60 HzVertical frequencySupports up to 60 HzVoltage30 VPair impedance100 ohms ±10 ohmsAttenuationAt 825 MHz: ≤10 dB per 6 m, per DVI 1.0 standardFEXT≥20 dB per 6 mSkewIntrapair≤300 ps per 6 mInterpair≤2.42 ns per 6 mGeneral — physical characteristicsConnector type1 male DVI-D single link to 1 male DVI-D single linkContactsGold platedMaterialConductors: tinned copper
Drain wire: tinned copper
Jacket: PVCConductor guageConductors: 30 AWG
Drain wire: 32 AWGConnector dimensions1.92" L* x 1.54" W x 0.60" thick
(48.8 mm L* x 39.1 mm W x 15.2mm thick)
*Length includes plug. (Length without plug is 1.68" [42.7 mm].)
