• IDE:
  • Two dual-channeled Enhanced PCI Bus Mastering IDE connectors;
  • Ultra DMA/33 support, PIO Mode 4; DMA Mode 2 Plug and Play BIOS, DMI 2.0 compliant, Flash EPROM, LS-120 support

• Summary:

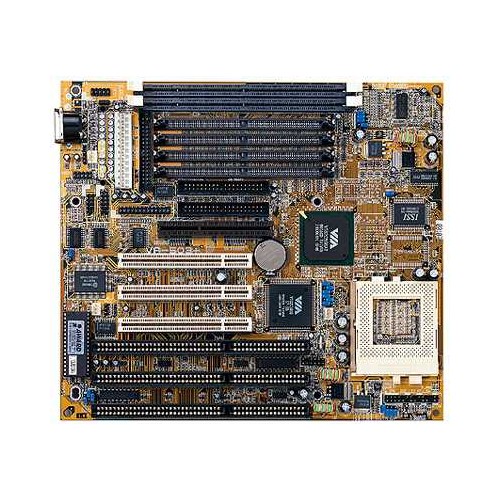

  • The FIC VA-503+ is a very versatile super socket 7 motherboard. Baby AT form factor and it's ability to take both SIMMs and DIMMs make it a very popular board. The FIC VA-503+ super socket 7 motherboard supports up to the AMD K6-2 550 is a refurbished motherboard.
  • Does not come with any cables, manuals or drivers.
  • If you need the AT cable set, we sell that separately for $16.50.
    Our Part # 106120- AT motherboard cable set. Includes:
    2 IDE Cables, 1 Floppy Drive cable, 1 Parallel Cable, and 1 Serial Cable.

Motherboard Specifications

• Model:
  • FIC VA-503+ Super Socket 7 Baby AT motherboard
• Processor Support:
  • 321-pin ZIF socket (Socket 7) with Switching Voltage Regulator 2.0~3.5V
  • Intel Pentium processor with MMX technology 166~233 MHz
  • AMD-K6 PR266-PR300, K6-2 233~550 and K6-III up to 450MHz.
  • Cyrix/IBM 6x86MX PR166-PR350 processors and Cyrix MII up to Apollo MVP3 66/75/83/100MHz Front Side Bus

• Memory:
  • 4 x 72-pin SIMM sockets support EDO and Fast Page SIMMs
  • 2 x 168-pin SDRAM DIMMs sockets support non ECC and ECC PC-100 SDRAM DIMMS
  • You cannot use both types of memory at the same time. Use either SIMMs or DIMMs.

• Expansion Slots:
  • 1 x 32-bit AGP slot
  • 3 x 32-bit PCI slots
  • 3 x 16-bit ISA 1MB Pipeline Burst Synchronous SRAM Standard
• Internal I/O Interface:
  • Winbond 877TF/AF I/O chipset
  • 2 serial ports with 16550 UART/IrDA
  • 1 parallel port with EPP/ECP
  • Optional FIR connector
  • Optional PS/2 connector
  • Optional USB daughter board
• Form Factor:
  • Baby AT form factor; 9.2" x 8.6" (233.68mm x 218.44mm)
