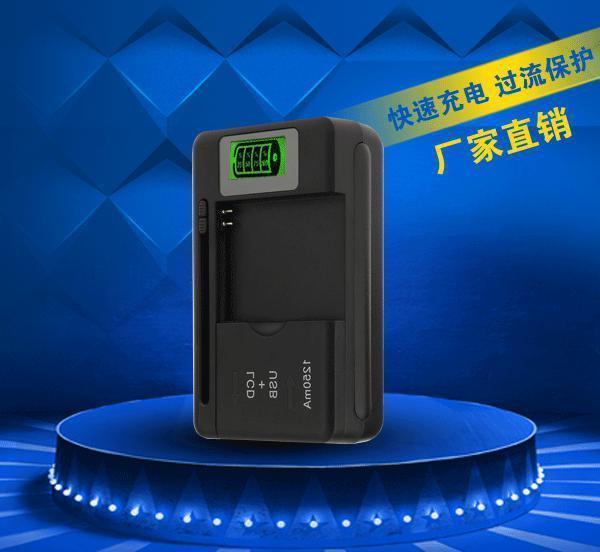

Universal Wall Travel Charger for Mobile Phone,PDA,Camera Li-ion Battery with USB PortProduct for Features: - 100% Brand New and High Quality Universal Battery Charger with USB Output.
- 2 IN 1 USB Battery Charger. It Can Be Used As Not Only a Special Charger, But Also USB Port Design Brings More Convenience for Your Device.
- This Battery Charger Comes with an USB Outlet Which Could Also Be Used for Various Mobile Phones,as long as the Mobile Phone Could Be Charged thru an USB Port.
- Automatic Identify Positive Terminal and Negative Terminal,More Intelligent and More Convenient
- Automatic Constant Current Control Prevents Battery from Overcharging.
- Smart LCD Screen Shows Charging status: 25%,50% and 75% Shows That it is Charging. 100% Shows That it is Charged Fully.
- When the Battery is Fully Charged,Automatically Stop Charging.
- Safety Cut Out Circuit,Built-in Protection Circuit Prevents Overcharging.
- Constant Current,Constant Voltage Charging,Automatic Identification.
- Also Convenient to Interchange Your Spare Batteries
- Use the Data Line Which Corresponds to Mobile Phone Can Be Charged Directly to the Phone.
- Intelligent Chip: The Smart Chip Protects from Short Circuit and Overload by Regulating Voltage an Ensuring a High Effeciency Charge.
Product for Technical Specifications: - Input: AC 100-240V,50/60Hz,200mA
- Output: DC:4.2V,800mADC:5.2V,1300mA(USB)
- Color: Black
- Dimension: 60.70×106.80×26.20mm(Approximate Value)
- Weight: 67g
- Operation Temperature: -20 ~ +60℃
- Storage Temperature: -40 ~ +85℃
- Relative Humidity: 5% ~ 95%RH(non-Condensing)
- Optional Specifications:AC Power Plug for USA,UK,AU,EURO,Africa South
- Package Includes: 1pc Charger ONLY.
- Product Type: Replacement Product (Brand New)
- Condition: New,1 Year Warranty!
- Inventory: In Stock
Note: This Charger Just Fit For The Battery (32mm<=Width<=65mm)
How to Use the Universal Charger? - First, Please Take a Look at Your Battery; There are one Mark "+" Positive Terminal and one Mark "-" Negative Terminal.
- Then, Take a Look on the Charger; You Can Get Two Little Movable Prongs. As the Positive and Negative are Automatically Recognized By This Charger, It doesn''t Matter Which Terminal on Positive and Which Contact Negative.
- Third, Pull Down the Bottom, and Put the Battery In it. Adjust the Charger Prongs to Match the Polarities of the Terminal on the Battery. Release the Part of the Charger That Moves. This Will Lock the Battery in Place. When the LCD on the Charger Shows 25% or 50% or 75%, It Means The Battery are Prepared to Be Charged.
- Finally, Plug the Charger Into the Wall, The LCD Becomes from 25% to 100%, Which Indicates the Battery Charging. When the LCD Stop 100%, That Indicates the Battery is Fully Charged.
Note: The Charger is Suitable only for Batteries with Terminals on the Top or Bottom. It is not Suitable for Batteries with Terminals on the Front or Back
Compatible Battery&Charger Part Numbers: - FT703437PP, FT803437PA, LP083442A, RZ03-00120100-0000, RZ30-00120300-0000.
Compatible Models:
|
|
