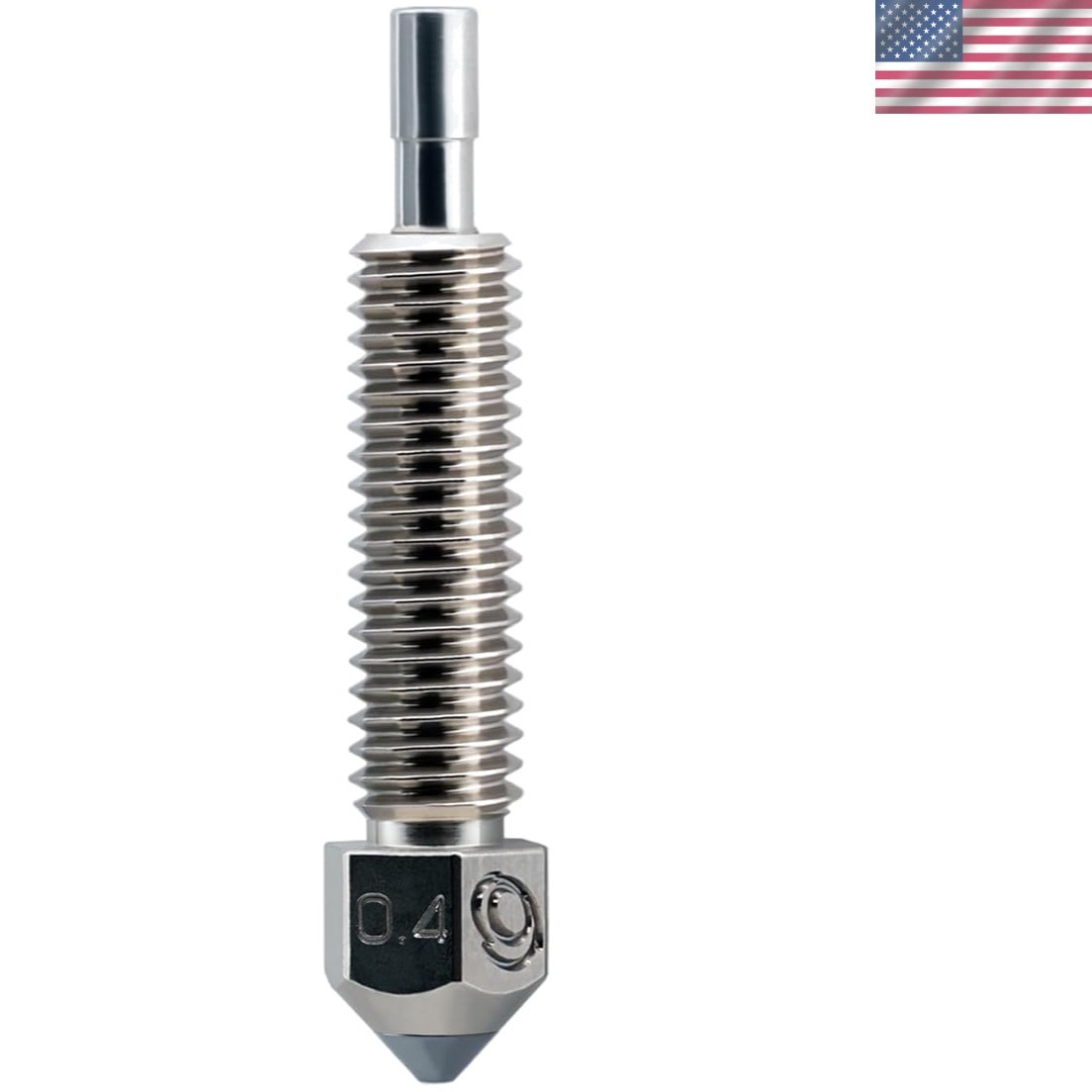

FlowTech CHT High Flow - CM2 Nozzle - Equipped with CHT Technology - Multi Filament Channel Design - Copper Body, M2 Hardened High Speed Steel Tip, Long Life, Wear Resistant .4mm

Microswiss and Bondtech have partnered to bring the High Flow, Hardened Tip CM2 nozzle to the FlowTech ecosystem. This new nozzle incorporates proprietary CHT technology, specifically designed to enhance the filament flow rate. Core of the nozzle is made of high-temperature Copper Chromium Zirconium and plated with an Electroless Nickel Plating. This special alloy retains its strength at much higher temperatures compared to a regular copper alloy. The tip of the nozzle is made of M2 Hardened High Speed Steel and coated with a special WS2 nonstick nano coating.

High Flow CHT - The FlowTech nozzle, equipped with CHT technology, can achieve a maximum volumetric flow rate of up to 50 mm³/sec

Better layer adhesion - More uniform layer deposition is achieved by splitting the filament flow into multiple chambers as it passes through the melt zone. This reduces gaps and weak points between layers

Microswiss CM2 Nozzle is an ideal nozzle for all applications. Core of the nozzle is made of high-temperature Copper Chromium Zirconium and plated with an Electroless Nickel Plating. This special alloy retains its strength at much higher temperatures compared to a regular copper alloy. The tip of the nozzle is made of M2 Hardened High Speed Steel and coated with a special nonstick nano coating.

M2 Hardened High Speed Steel insert

Heat-treated hardness: 68 HRC

Orifice size available: , , ,

Made in Sweden by Bondtech - Assembled in USA by Microswiss
