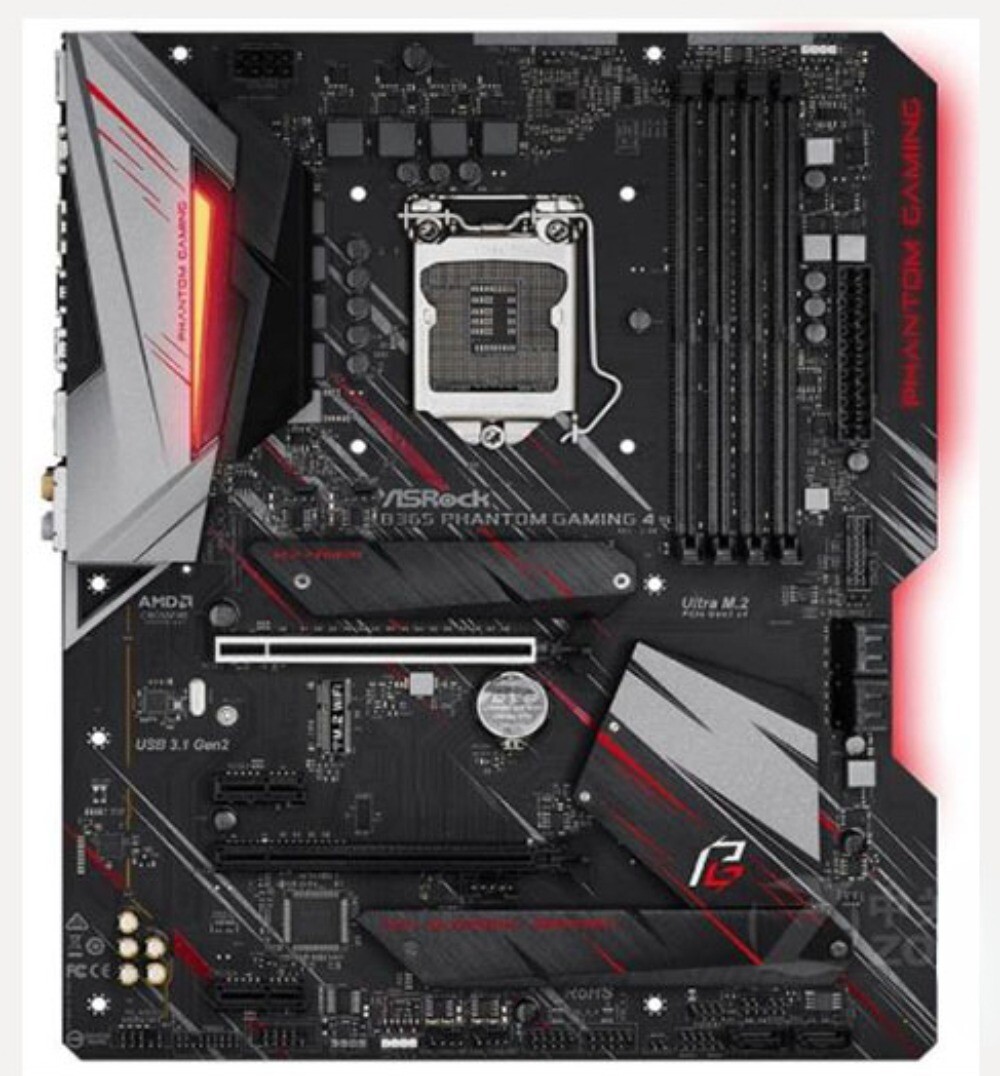

Product Description SRock B365 Phantom Gaming 4 Motherboard Specification (English Version) Overview

Model: B365 Phantom Gaming 4Brand: ASRock Phantom GamingForm Factor: ATX (305mm × 244mm)Chipset: Intel® B365

CPU

• Socket: LGA1151
• Supported CPU: 8th / 9th Gen Intel® Core™, Pentium®, Celeron® (Max 95W TDP)
• Power Design: Digi Power, 8 Power Phase
• Support Intel Turbo Boost 2.0

Memory

• DIMM Slots: 4 × DDR4
• Memory Type: Dual Channel Non-ECC Unbuffered DDR4; ECC UDIMM supported (runs non-ECC mode)
• Max Capacity: Up to 64GB
• Supported Frequency: DDR4 2666 / 2400 / 2133 MHz
• Support Intel XMP 2.0 profile; 15μ gold contact on DIMM slots

Rear I/O Ports

• 1 × HDMI
• 1 × DisplayPort 1.2
• 1 × USB3.1 Gen2 Type-A (10Gb/s)
• 1 × USB3.1 Gen2 Type-C (10Gb/s)
• 4 × USB3.1 Gen1 Type-A
• 2 × USB2.0
• 1 × RJ45 Intel Gigabit LAN
• Gold-plated 7.1CH HD Audio Jacks
• 1 × Optical SPDIF Out

Onboard Pin Headers

• 1 × Front Panel header
• 1 × Front Audio header
• 1 × USB3.1 Gen1 front header
• 2 × USB2.0 headers
• Multiple 4-pin fan headers
• RGB LED header (Polychrome Sync)
• TPM header
• Chassis intrusion header

Expansion Slots

• 2 × PCIe 3.0 x16 slots
  • Single GPU: x16
  • Dual GPU: x8 + x4
• 2 × PCIe 3.0 x1 slots
• 1 × M.2 Key E slot for WiFi/BT CNVi module
• Support AMD Quad CrossFireX™

Storage Interface

• 6 × SATA3 6Gb/s ports (RAID 0/1/5/10, Intel RST)
• 1 × Ultra M.2 (M-Key): PCIe Gen3 x4
• 1 × Ultra M.2 (M-Key): PCIe Gen3 x4 OR SATA3

Note: SATA mode on M.2 will disable SATA3_0 port; support Intel Optane

• RAID: RAID 0/1/5/10

Power Connectors

• 24-pin ATX main power
• 8-pin CPU 12V power

Features

• Audio: Realtek ALC1200 7.1CH HD Audio, DTS Connect
• LAN: Intel Gigabit LAN, Wake-on-LAN, PXE
• Polychrome RGB lighting synchronization
• 128Mb AMI UEFI BIOS, Instant Flash
• Hardware monitor: CPU/MB temperature, fan speed & voltage monitoring
• Full Spike Protection

Supported OS

Windows 10 64-bit, Windows 11 64-bit
