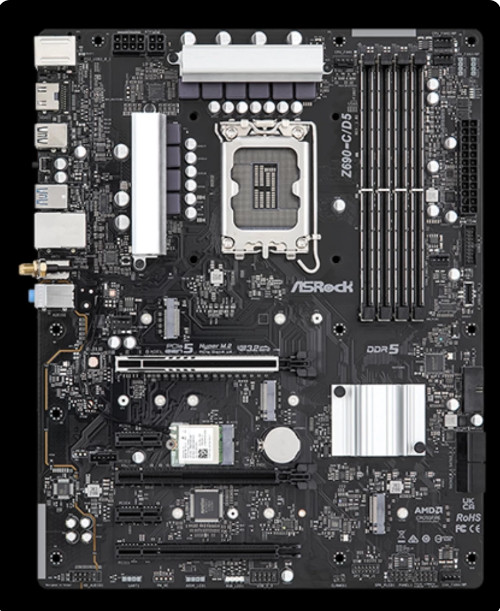

Product Description ASRock Z690-CD5 (Z690-C/D5) Motherboard Specification (English Version) Overview
Model: Z690-CD5 (Z690-C/D5)Brand: ASRockForm Factor: ATX (305mm × 244mm)Chipset: Intel® Z690
CPU
- Socket: LGA1700
- Supported CPU: 12th /13th /14th Gen Intel® Core™, Pentium®, Celeron®
- Power Design: 9 Phase Dr.MOS Power
- Support Intel Hybrid Technology, Turbo Boost Max 3.0, ABT
Memory
- DIMM Slots: 4 × DDR5
- Memory Type: Dual Channel Non-ECC Unbuffered DDR5
- Max Capacity: Up to 128GB
- Supported Frequency: DDR5 4800 MHz (native), up to 6000+ MHz (OC)
- Support Intel XMP 3.0 profile
Rear I/O Ports
- 2 × WiFi antenna connectors
- 1 × HDMI 2.1 TMDS (4K@60Hz, HDCP2.3)
- 1 × USB3.2 Gen2 Type-A (10Gb/s)
- 1 × USB3.2 Gen2 Type-C (10Gb/s)
- 4 × USB3.2 Gen1 Type-A
- 2 × USB2.0
- 1 × RJ45 Intel Gigabit LAN
- 3 × 3.5mm HD Audio Jacks (7.1CH)
Onboard Pin Headers
- 1 × Front Panel header
- 1 × Front Audio header
- 1 × USB3.2 Gen2x2 Type-C front header
- 2 × USB3.2 Gen1 headers
- 2 × USB2.0 headers
- Multiple 4-pin fan headers
- RGB & ARGB LED headers
- TPM header
- Chassis intrusion header
Expansion Slots
- 1 × PCIe 5.0 x16 slot (CPU lane)
- 2 × PCIe 4.0 x16 slots
- 2 × PCIe 3.0 x1 slots
- 1 × M.2 Key E slot for WiFi/BT & CNVi module
- Support AMD CrossFireX™
Storage Interface
- 4 × SATA3 6Gb/s ports
- 2 × Hyper M.2 (M-Key, PCIe Gen4 x4)
- 1 × Ultra M.2 (M-Key, PCIe Gen3 x4 / SATA3)
Note: M.2 may share bandwidth with SATA ports; some SATA ports will be disabled when SATA-type M.2 SSD installed
Power Connectors
- 24-pin ATX main power
- 8-pin CPU 12V power
Features
- Audio: Realtek ALC897 7.1CH HD Audio, Nahimic Audio
- LAN: Intel Gigabit LAN, Wake-on-LAN, PXE
- Wireless: Intel 802.11ac WiFi + Bluetooth
- AMI UEFI BIOS, Instant Flash
- Hardware monitor: CPU/MB temperature, fan speed & voltage monitoring
- Full Spike Protection
Supported OS
Windows 10 64-bit, Windows 11 64-bit
