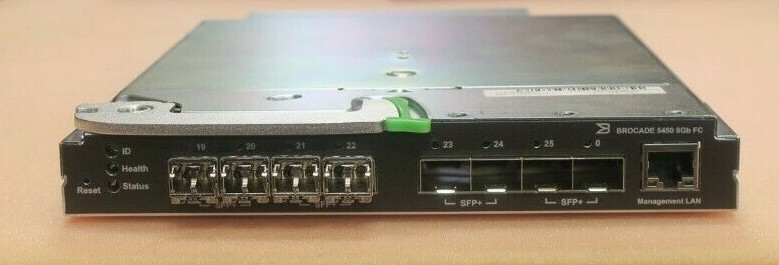

Fujitsu S26361-D2933-A100 A3C40106562 PY CB FC Switch 8Gb 18/8 Brocade 5450

In Good Condition, Full Working Order

Tested

Includes 4x SFP Modules

FREE FAST WORLDWIDE DELIVERY

Includes:

• 1 xFujitsu S26361-D2933-A100 A3C40106562 PY CB FC Switch 8Gb 18/8 Brocade 5450

Specification:
Connection type:

• SAN Connection Blade
• 8 Gb Fibre Channel Switch with 4x 8Gb SWL SFP+ modules included

The following licenses are included in the 14 port and 26 port basic unit:

• Access Gateway
• Brocade Full Fabric
• Brocade Enhanced Group Management

Supported system units

• PRIMERGY BX400 S1
• PRIMERGY BX900 S1
• PRIMERGY BX900 S2

Max. number per BX unit

• 3 in PRIMERGY BX400 S1
• 4 in PRIMERGY BX900 S1/S2

Supported Server Blades

• all PRIMERGY BX9xx and BX25xx Server Blades

Supported Mezzanine Cards

• PRIMERGY BX FC Mezz Card 8 Gbit/s 2 port (MC-FC82E)

Upgrade options

• Port License upgrade from 14 to 26 ports (only for 14 port unit)
• Brocade ISL Trunking
• Brocade Fabric Watch
• Brocade Extended Fabric
• Brocade Enterprise Bundle (includes ISL Trunking, Advanced Perf. Monitoring, Extended Fabric, Fabric Watch)

Interfaces

• Down-link ports: 18 x 8 Gbit/s FC

Up-link ports

• 8 x Universal (SFP, SFP+)
• Port types:
• 8 Gb, 4 Gb, 2 Gb or 1 Gb full duplex, auto-sensing, FL_Port, F_Port, M_Port and E_Port self-discovery based on switch type
• Optional port type control in Brocade Access Gateway mode:F-Port and NPIV-enabled N_Port

Management ports

• External: 1x 10/100 Mb Ethernet (RJ45)
• Internal : 1x serial port (RS-232 via mid plane)2x 10/100 Mb Ethernet (via mid plane)
• Note: Only one 10/100 Mb Ethernet port active as the same timeSupported Interface Modules / Cables

VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED£40 + VAT
VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK
