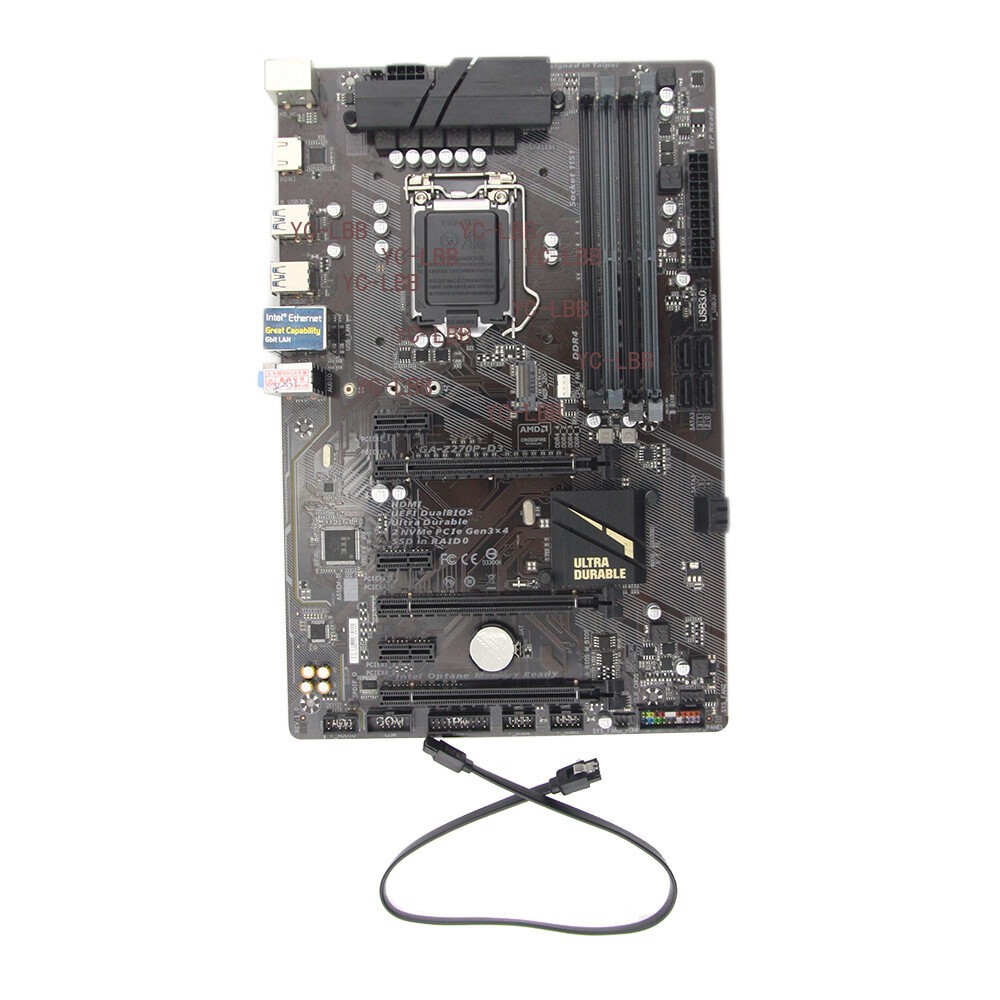

Motherboard chip
Integrated chip sound card/network card
Main chipset Intel Z270
Chipset description Using Intel Z270 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip integrated Realtek ALC887 8-channel audio chip
NIC chip onboard Intel Gigabit NIC
Processor specifications
CPU type 7th/sixth generation Core i7/i5/i3/Pentium/Celeron
CPU socket LGA 1151
CPU description Support Intel 14nm processor
Memory specifications
Memory type 4×DDR4 DIMM
Maximum memory capacity 64GB
Memory description Support dual channel DDR4 3866(OC)/3800(OC)/3733(OC)/3666(OC) /3600(OC) /3466(OC)/3400(OC)/3333(OC)/3300(OC) /3200(OC) memory
Storage expansion
PCI-E standard PCI-E 3.0
PCI-E slot 3×PCI-E X16 graphics card slot, 3×PCI-E X1 slot
Storage interface 1×M.2 interface, 6×SATA III interface
I/O interface
USB interface 6×USB3.1 interface (2 built-in +4 backplane), 6×USB2.0 interface (4 built-in +2 backplane)
Video interface 1 × HDMI interface
Power connector One 8-pin, one 24-pin power connector
Other interfaces 1×RJ45 network interface, 3×audio interface, 1×PS/2 keyboard and mouse universal interface
Board type
Motherboard board type ATX board type
Dimensions 30.5×19.9cm
