SpecificationELECTRICAL SPECIFICATIONS
Frequency Impedance50ΩHorizontal 3dB Beam Width

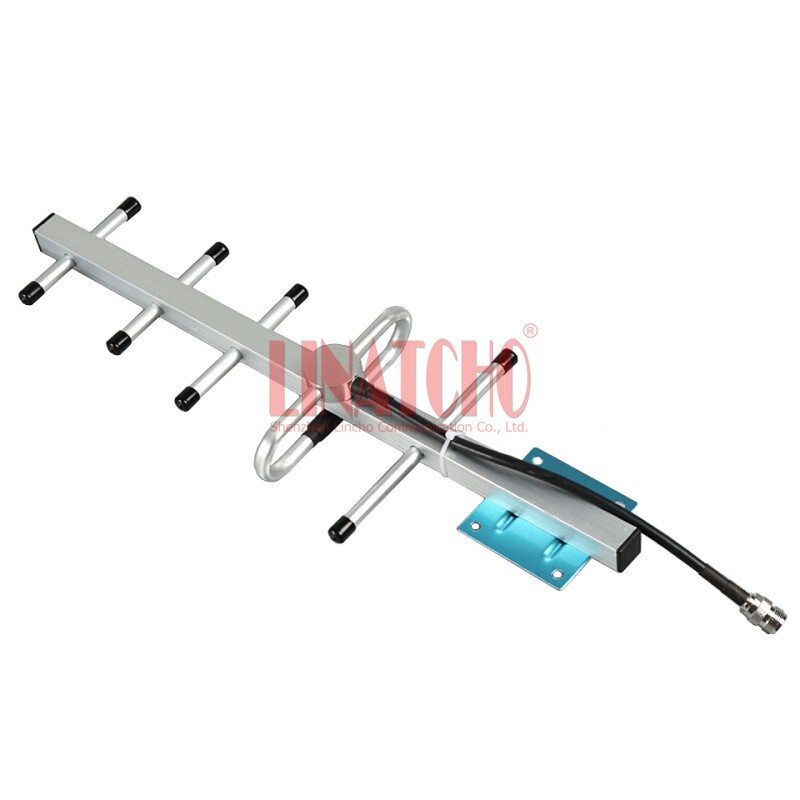

75°Vertical 3dB Beam Width55°Maximum Power ProtectionDC GroundMaximum wind speed200m/sMECHANICAL SPECIFICATIONSConnector TypeN-FemaleNet Weight0.6kgCable TypenoRadiating Element MaterialAluminum AlloyElement5 UnitsSize50*18*6cmHold Pole Diameterφ40-φ60(mm )Products DescriptionThe 900 MHz Yagi Directional Antenna operates in the frequency range of 824-960 MHz, with 9 dBi gain.It is ideally suited for directional applications in the 900MHz ISM and GSM bands,900MHz Wireless LAN,GSM900 .900MHz RFID System, as well as on Line of Sight (NLOS) applications and point to multi-point systems.This antenna is manufactured with high quality aluminum alloy material for good adapatability of environment, It can be installed for either vertical or horizontal polarization.
Yagi directional antennas are only effective when pointed toward a cellular tower. Note: All outdoor coax connections should be weather-proofed to minimize damage caused by moisture in the connectors or cabling. Outdoor antenna installations should include lightning protection for safety; it may be required by your local building, electrical or fire codes or by your property insurance. Use a Lightning Arrester with this antenna.
