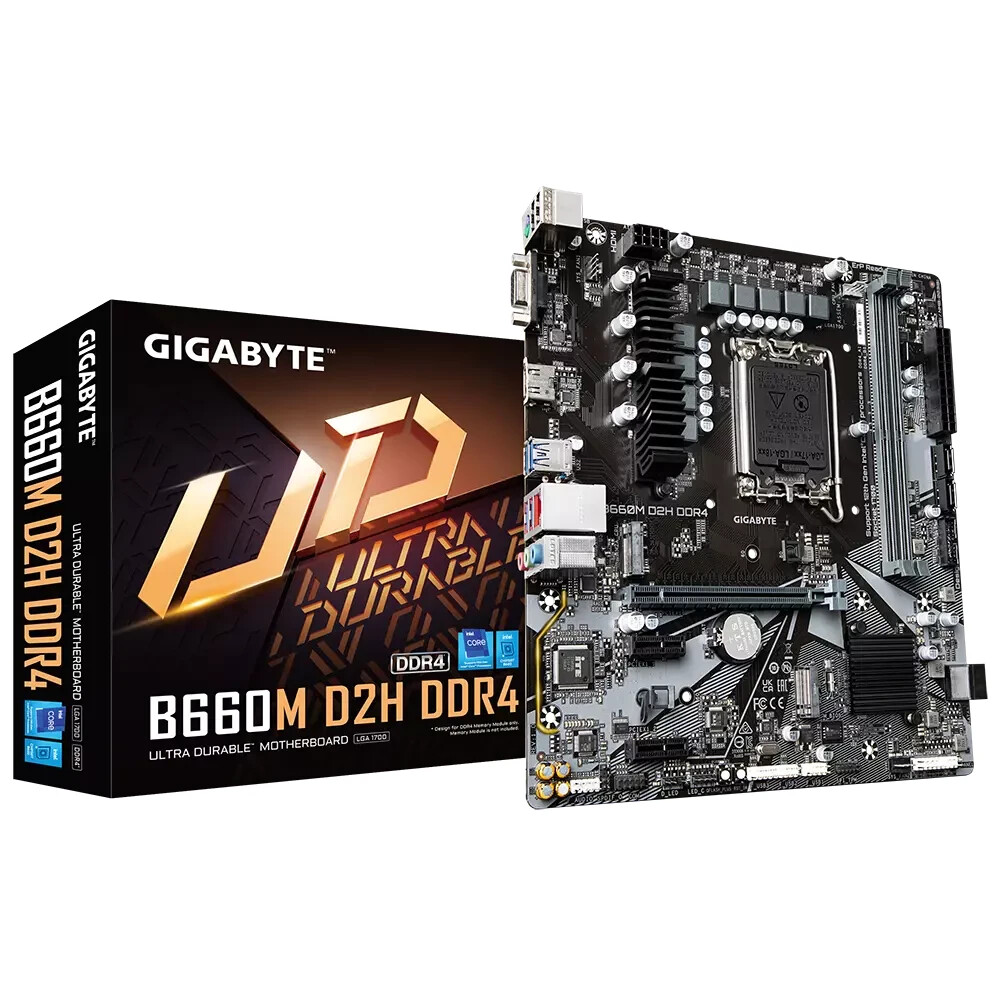

Intel® B660 Motherboard with 6+2+1 Phases Hybrid Digital VRM with MOS Heatsink, 2 x PCIe 4.0 M.2, 2.5GbE Gaming LAN, RGB FUSION 2.0, Q-Flash Plus​​​

Supports 12th Gen Intel® Core™ Series Processors​​

Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs

6+2+1 Phases Hybrid Digital VRM with MOS Heatsink​

Fast 2.5 GbE GAMING LAN with Bandwidth Management​​

Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2​

High Quality Audio Capacitors and Audio Noise Guard​

RGB FUSION 2.0 supports Addressable LED & RGB LED Strips​​

Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP​​

Q-Flash Plus Updat

e BIOS without Installing the CPU, Memory and Graphics Card​​

CPU

LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*

L3 cache varies with CPU

* Please refer to "CPU Support List" for more information.

Memory

Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules

2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)
