Why bought from us?
Dear customers, if you read our this page, please continue to have a glance at me, I think you will be glad to select our items. We test the motherboard, check the BIOS, enter to window OS, run CPU-Z and 3DMark, to ensure all the parts no defect or DOA. You can buy it at ease.


About the package:
We'll seal combo parts in an anti-electrostatic plastic bag with anti-blushing agent, then put it into a safe box.


About the warranty:
Our parts have 90 days warranty, please note the following reason we don't accept returns:
A. Bought a wrong item.
B. Ruin the item on purpose.
C. The parts burned by technical mistake when assemble the PC.
D. The parts didn't buy from us. All our parts have warranty label and hidden marks on them, to distinguish our items from others'.


Technical Tips:A.Please do not use fake memory or if you're not sure whether your memory fake or not, please do not try it on our motherboard.
B. Please check your CPU, and RAM without problem, then install on the motherboard.
C. If the motherboard can't run correctly, please first check your CPUwhethercan be compatible with our motherboard, then check your video card orpower supply.
D. 90% "can't boot" problem was caused by RAM, please don't use "single side" RAM.(Please view the following picture)Packet Included:
1 x motherboard

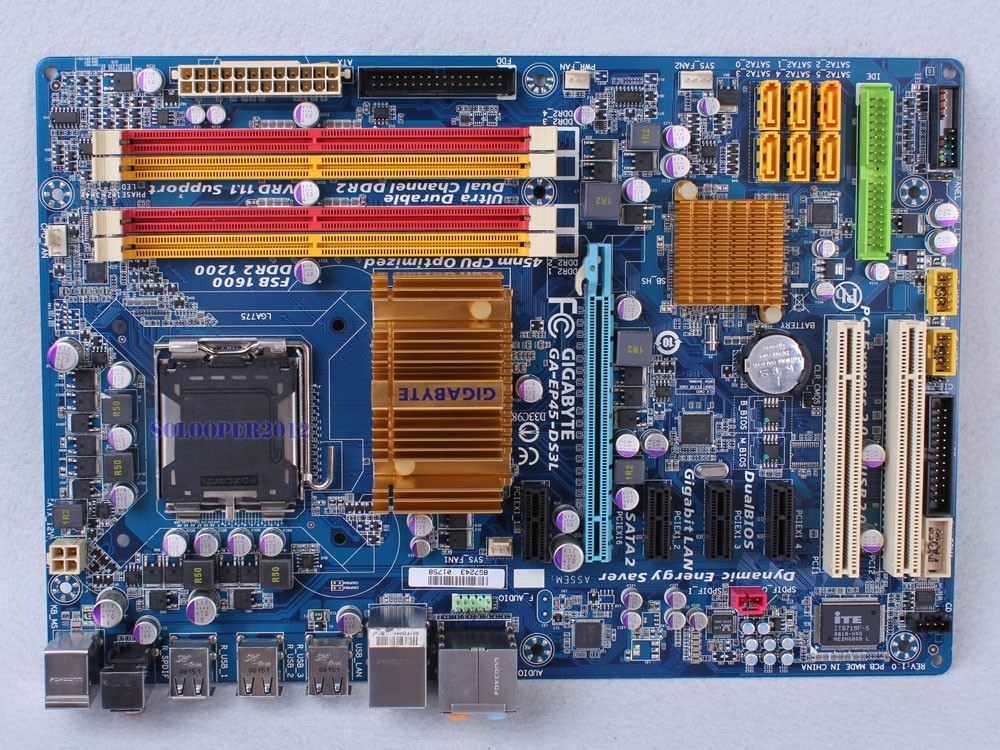

2 x generic SATA II cablesParts Specification:

CPU

1. Support for an Intel® Core™ 2 Extreme processor/ Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/ Intel® Pentium® Dual-Core processor/Intel® Celeron® processor in the LGA 775 package
   (Note) This motherboard is designed with VRD11.1 power phase, and cannot be compatible with VRD10 designed CPU. Please refer to "CPU Support List" for details.
2. L2 cache varies with CPU

Front Side Bus

1. 1600/1333/1066/800 MHz FSB

Chipset

1. North Bridge: Intel® P45 Express Chipset
2. South Bridge: Intel® ICH10

Memory

1. 4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory
2. Dual channel memory architecture
3. Support for DDR2 1333+/1066/800/667 MHz memory modules
   (Refer to Memory support list for more information)

Audio

1. Realtek ALC888 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF In/Out
5. Support for CD In

LAN

1. Realtek 8111C chips (10/100/1000 Mbit)

Expansion Slots

1. 1 x PCI Express x16 slot
   (The PCI Expressx16 slot conform to PCI Express 2.0 standard.)
2. 4 x PCI Express x1 slot
3. 2 x PCI slots

Storage Interface

South Bridge:

1. 6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices

JMicron 368 chip:

1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices

iTE IT8718 chip:

1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB

1. Integrated in the South Bridge
2. Up to 12 USB 2.0/1.1 ports
   (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 1 x floppy disk drive connector
4. 1 x IDE connector
5. 6 x SATA 3Gb/s connectors
6. 1 x CPU fan header
7. 2 x system fan headers
8. 1 x power fan header
9. 1 x front panel header
10. 1 x front panel audio header
11. 1 x CD In connector
12. 1 x S/PDIF In header
13. 1 x S/PDIF Out header
14. 2 x USB 2.0/1.1 headers
15. 1 x parallel port header
16. 1 x serial port header
17. 1 x power LED header
18. 1 x chassis intrusion header

Back Panel Connectors

1. 1 x PS/2 keyboard port
2. 1 x PS/2 keyboard/mouse port
3. 1 x optical S/PDIF Out connector
4. 1 x coaxial S/PDIF Out connector
5. 8 x USB 2.0/1.1 ports
6. 1 x RJ-45 ports
7. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

I/O Controller

1. iTE IT8718 chip

H/W Monitoring

1. System voltage detection
2. CPU/System temperature detection
3. CPU/System/Power fan speed detection
4. CPU overheating warning
5. CPU/System/Power fan fail warning
6. CPU/System fan speed control

BIOS

1. 2 x 8 Mbit flash
2. Use of licensed AWARD BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features

1. Support for @BIOS
2. Support for Q-Flash
3. Support for Download Center
4. Support for Xpress Install
5. Support for Xpress Recovery2
6. Support for EasyTune
7. Support for Dynamic Energy Saver Advanced
8. Support for Time Repair
9. Support for Q-Share

Form Factor

1. ATX Form Factor; 30.5cm x 21.0cm

Shipping:
Economy:




Country Agent Estimate time USA Epacket Shipping 8-15 business days Canada,Australia,New Zealand Economy Shipping 10-20 business days UK,Germany,France Economy Shipping 10-25 business days Other Europe Country Economy Shipping 10-25 business days Other Country Economy Shipping 10-25 business days
Agent Estimate time Expedited : Country USA Expedited Shipping 3-5 business days Canada,Australia,New Zealand Expedited Shipping 3-7 business days UK,Germany,France Expedited Shipping 3-6 business days Other Europe Country Expedited Shipping 3-6 business days Other Country Expedited Shipping 4-8 business days
Custom Tax:
Please note we're unable to take any responsibility for any custom delay or tax. The fees of import duty/tax are not included in the item price or shipping fee, these are the buyer's responsibility.
Please check with your local custom office to determine what these additional costs would be before payment. And these fees are normally collected by the delivery company, when you pick up item.
Customer Service:
Dear buyer, we sincerely do business with you. If you satisfy with our service and products, please leave us positive response. Your recognition is our power to move forward, especially to a beginner like us. Your great comments will lead us to get more potential customers, and make us more confident to develop business and serve you better.
But if you don't satisfy with the item, or you have any concern about our transaction, please do first contact us, we will response you in 24 hours, and do our best to help you solve any problems.
Thank you for watching
