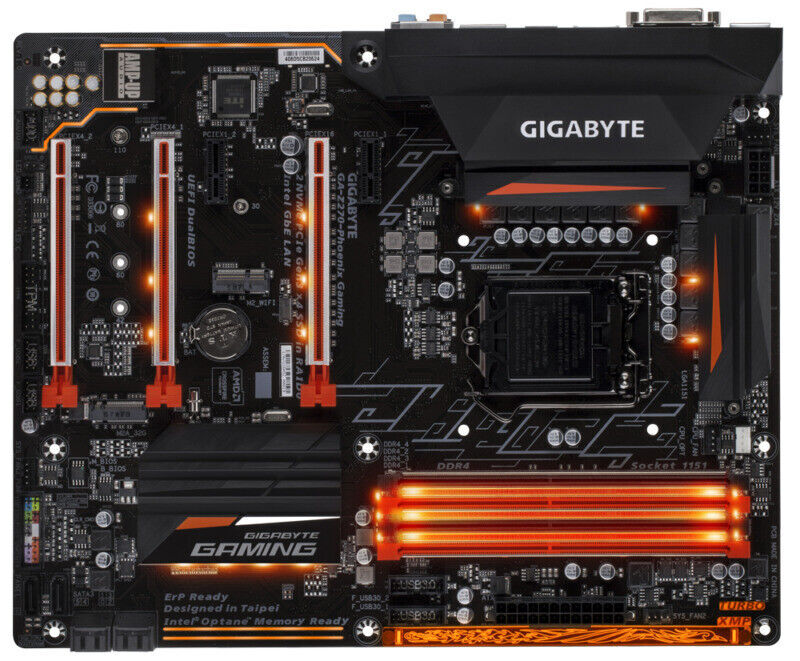

Gigabyte GA-Z270-Phoenix Gaming Motherboard Intel Z270 LGA 1151 DDR4 ATX M.2

CPU

Supports 7th/6th generation processors in LGA1151 socket: Intel® Core™ i7 processor/ Intel® Core™ i5 processor/ Intel® Core™ i3 processor/ Intel® Pentium® processor/ Intel® Celeron® processor device

L3 cache depends on CPU

Chipset

Intel® Z270 Express Chipset

RAM

4 DDR4 DIMM slots, support up to 64 GB

* Due to the limitation of Windows 32-bit operating system, if more than 4 GB of memory is installed, the actual displayed memory capacity will be less than the actual installed memory capacity.

Supports dual-channel memory technology

Support DDR4 3866(OC) / 3800(OC) / 3733(OC) / 3666(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200(OC ) / 3000(OC) / 2800(OC) / 2666(OC) / 2400(OC) / 2133 MHz

Support ECC Un-buffered DIMM 1Rx8/2Rx8 memory (non-ECC mode operation)

Support non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory

Supports Extreme Memory Profile (XMP) memory

Display function

Built-in display capable processor - supports Intel® HD Graphics:

1 HDMI socket, can support resolution up to 4096x2160@24 Hz

* Support HDMI 1.4 version.

1 DVI-D socket, can support resolution up to 1920x1200@60 Hz

* This DVI-D socket does not support the function of converting to D-Sub.

Supports *Maximum Shared Display Memory*1 GB

Sound effect

Built-in Realtek® ALC1220 chip

Support High Definition Audio

Support 2/4/5.1/7.1 channel

Support S/PDIF output

The internet

Built-in Intel® GbE network chip (10/100/1000 Mbit)

Expansion slot

1 PCI Express x16 slot, supporting x16 operation specification (PCIEX16)

* To maximize the performance of the graphics card, be sure to install a *PCIEX16 slot when installing a graphics card.

2 PCI Express x16 slots, supporting x4 operation specification (PCIEX4_1/PCIEX4_2)

* Since the PCIEX1_1/PCIEX1_2 slot shares the bandwidth with the PCIEX4_1 slot, when an expansion card is installed in the PCIEX1_1/PCIEX1_2 slot, the PCIEX4_1 slot* operates in x1 mode.

2 PCI Express x1 slots

(All PCI Express slots support PCI Express 3.0)

1 M.2 Socket 1 socket for wireless communication module (optional accessory) (M2_WIFI)

Multiple Display Technology

Supports AMD Quad-GPU CrossFireX™ and 2-Way AMD CrossFire™ technology

Storage device interface

Built into the chipset:

1x M.2 socket (support Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD)

6 SATA 6Gb/s sockets

Supports RAID 0, RAID 1, RAID 5 and RAID 10 functions

USB

Built-in chipset + ASMedia® ASM2142 USB 3.1 Gen 2 controller:

1x USB Type-C™ port on the rear panel, supports USB 3.1 Gen 2

1x USB 3.1 Gen 2 Type-A port (red) on the rear panel

Built into the chipset:

8 USB 3.1 Gen 1 ports (4 on the rear panel, 4 need to be connected to the USB socket on the motherboard via a flat cable)

4 USB 2.0/1.1 ports, which need to be connected from the USB socket in the motherboard via a flat cable

Internal socket

1 24PIN motherboard power socket

1 8PIN CPU power socket

1 M.2 Socket 3 socket

6 SATA 3.0 ports

1 CPU fan header

1 CPU water cooling fan socket

2 system fan sockets

1 system fan/water cooling pump socket

1 motherboard jumper socket

1 front audio jack

2 USB 3.1 Gen 1 sockets

2 USB 2.0 sockets

1 RGB (RGBW) LED strip extension cable socket

1 S/PDIF output socket

1 secure encryption module (TPM) socket

1 clear CMOS data pin

Rear panel unit connection socket

1 PS/2 keyboard/mouse interface

2 Wi-Fi antenna header holes

1 DVI-D interface

1 HDMI interface

1x USB Type-C™ port, supports USB 3.1 Gen 2

1 USB 3.1 Gen 2 Type-A port (red)

4 USB 3.1 Gen 1 ports

1 RJ-45 network cable interface

1 digital optical output interface

5 Audio Connectors (Center & Subwoofer Out, Rear Speaker Out, Audio In, Audio Out, Microphone)

I/O Controller

Built-in iTE® I/O controller chip

BIOS

2 x 64 Mbit flash

Use an authorized AMI UEFI BIOS

DualBIOS™ support

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

O S

Supports Windows® 10 64-bit (7th Generation Intel® Processor)

Supports Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (6th Generation Intel® Processor)

Form Factor

ATX format; 30.5cm x 24.4cm

• 1 x motherboard.

• 2 x SATA II cables.

• 1 x I/O shield.
