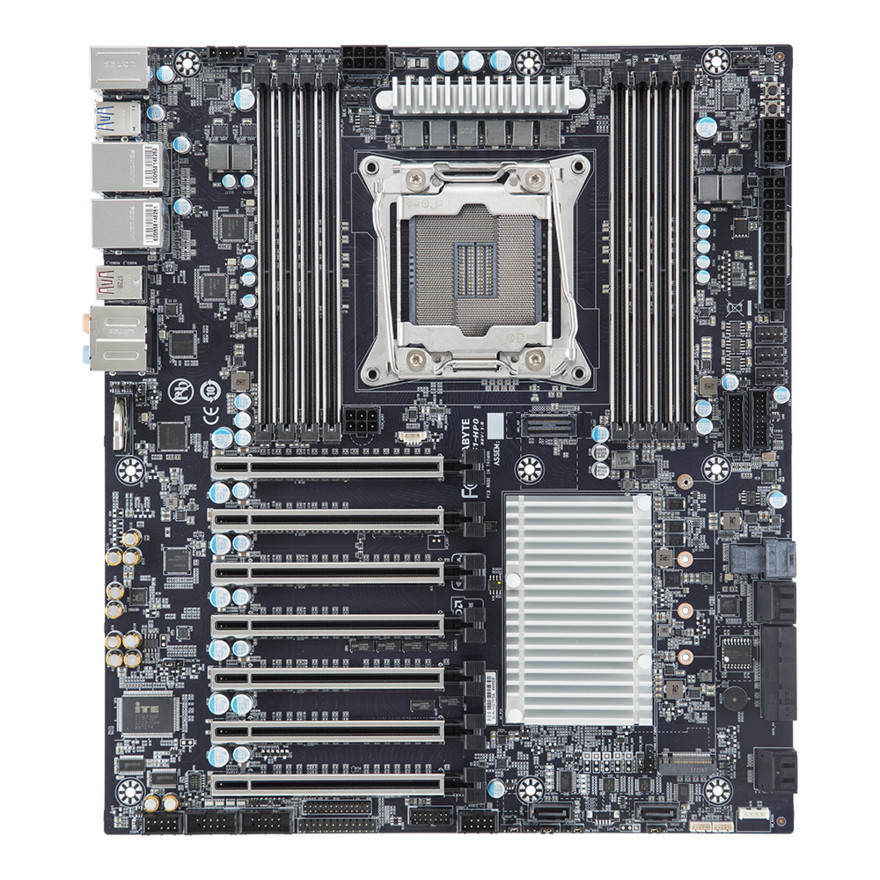

Board Size
CEB
304.8W x 266.7D mm
Processor Supported
Intel®Xeon®W-2200 and W-2100 Processors
Single processor, TDP up to 165W
Socket
1 x LGA 2066
Socket R4
Mounting pitch: square ILM (80x80mm)
Chipset Description
Intel®C422 Chipset
Memory Type
8 x DIMM slots
DDR4 memory module supported only
Quad channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
1.2V modules: 2666/2400 MHz
NOTE: When installing memory modules, make sure to begin with the first socket of each channel, such as DIMM_P0_A0, DIMM_P0_B0, DIMM_P0_C0, DIMM_P0_D0
Integrated Network
2 x 1GbE LAN ports (Intel®I210)
Integrated Video Controller
N/A
Integrated Audio Controller
Realtek®ALC1150 HD audio codec
Supports 7.1 channel configurations
Integrated SAS Controller
N/A
Integrated SATA Controller
8 x SATA III 6Gb/s ports with 2 x SATA DOM supported
2 x SATA III 6Gb/s ports (Marvell 88SE9172®controller)
Support RAID Function
Intel®SATA RAID 0/1/10/5
Expansion Slot
Slot_7: 1 x PCIe x16 (Gen3 x16 bus) slot, from CPU
Slot_6: 1 x PCIe x16 (Gen3 x0 or x8 bus) slot, from CPU
Slot_5: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot, from CPU, shared with slot_6
Slot_4: 1 x PCIe x16 (Gen3 x0 or x8 bus) slot, from PEX8747
Slot_3: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot, from PEX8747, shared with slot_4
Slot_2: 1 x PCIe x16 (Gen3 x0 or x8 bus) slot, from PEX8747
Slot_1: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot, from PEX8747, shared with slot_2
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from C422
- Supports NGFF-2242/2260/2280/22110 cards
1 x U.2 connector:
- Mini-SAS HD type
- PCIe Gen3 x4, from C422
Supports NVIDIA®SLI™ and AMD®CrossFireX™ technologies
NOTE: Graphic card requests UEFI-ready
On-Board Connector
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors for CPU and DDR 12V input
1 x 6-pin power connector for PCIe slots 12V input
1 x CPU fan header
5 x System fan headers
2 x USB 3.0 headers for 4 ports
1 x USB 2.0 header for 2 ports
1 x Front audio header
1 x PMBus connector
1 x Clear CMOS jumper
10 x SATA III 6Gb/s ports
2 x SATA DOM jumpers
2 x SATA DOM SGPIO connectors
1 x ME update jumper
1 x M.2 slot
1 x U.2 connector
1 x Front panel header
1 x Backplane board header
2 x COM headers
1 x TPM header
1 x VROC connector
1 x BIOS recovery jumper
1 x Buzzer
Rear I/O Connectors
1 x PS/2
8 x USB 3.0
2 x USB3.1(red) in Type-A and Type-C (5V/3A)
2 x RJ45
5 x Audio jacks
1 x Optical S/PDIF-Out
TPM
1 x TPM header with LPC interface
Optional TPM2.0 kit:CTM000
OS Driver Supported
Windows 10 (x64)
Based on Microsoft support policy, GIGABYTE recommends users to upgrade Skylake-based systems to Windows 10 before July 17th, 2018 to continue receiving support
Red Hat Enterprise Linux 6.8 (x64)
Red Hat Enterprise Linux 7.3 (x64)
SUSE Linux Enterprise Server 11.4 (x64)
SUSE Linux Enterprise Server 12.2 (x64)
Ubuntu 16.04 LTS (x64)
Ubuntu 16.10 LTS (x64)
Server Management
N/A
PSU Connector
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Operating Properties
Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Bundle
1 x MW51-HP0
1 x Driver CD
1 x I/O shield
1 x Quick start guide
8 x SATA III 6Gb/s cables (500mm)
1 x External thermistor cable (2P/900mm)
Single Box dimensions: 360 x 330 x 80 mm
Carton dimensions: 674 x 424 x 385 mm
Quantity: 10 x single boxes in one carton
Bulk Packaging Content
10 x MW51-HP0
10 x I/O shields
Carton dimensions: 600 x 473 x 495 mm
Ordering Information
Retail: 9MW51HP0MR-00
Bulk: 9MW51HP0NR-00
Part numbers:
I/O shield: 12AIO-MW51H0-00R
Fan-sink: 25ST0-7C9220-T1R(optional)
Driver CD: 12DC1-08MW51-00H(Retail)
SATA III 6Gb/s cable (500mm): 12CF1-2SAT01-31R(Retail)
