We are NOT responsible for custom taxes and VAT style="font-family: 微軟雅黑體, "Microsoft YaHei", "Noto Sans", "Noto Sans TC", "Noto Sans SC", 微軟正黑體, "Microsoft JhengHei", SimHei, メイリオ, Meiryo, "ヒラギノ角ゴ Pro W3", "Hiragino Kaku Gothic Pro", 新細明體, Arial, Verdana, Helvetica, sans-serif; font-size: 10.1944px;">Package include:

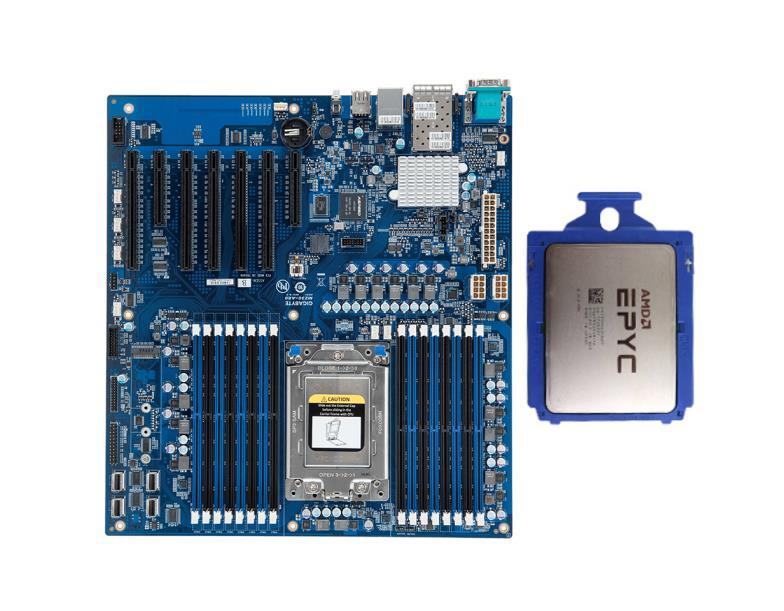

1XGigabyte MZZ31-AR0（used）
1x AMD EPYC 7601
Package include:
1X Gigabyte MZ31-AR0
1x AMD EPYC 7601
Mainboard
Board Size
E-ATX
305W x 330D (mm)
Processor Supported
AMD EPYC™ 7001 series processor family
Single processor, 14nm
Up to 32-core, 64 threads
TDP up to 200W
Socket
Socket SP3
Chipset Description
System on Chip
Memory Type
16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Memory speed: 2666(1DPC)/2400/2133* MHz
- Note:
Memory speed run at 2133MHz when 1R/2R memory modules are fully populated
Integrated Network
2 x SFP+ 10Gb/s LAN ports (Broadcom® BCM 57810S)
1 x 10/100/1000 management LAN
Integrated Video Controller
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Integrated Audio Controller
N/A
Integrated SAS Controller
N/A
Integrated SATA Controller
4 x SlimSAS, total 16 x SATA III 6Gb/s ports
Support RAID Function
N/A
Expansion Slot
Slot_7: 1 x PCIe x8 (Gen3 x8 bus) slot
Slot_6: 1 x PCIe x16 (Gen3 x16 bus) slot
Slot_5: 1 x PCIe x16 (Gen3 x8 bus) slot
Slot_4: 1 x PCIe x16 (Gen3 x16 bus) slot
Slot_3: 1 x PCIe x16 (Gen3 x16 bus) slot
Slot_2: 1 x PCIe x8 (Gen3 x8 bus) slot
Slot_1: 1 x PCIe x16 (Gen3 x16 bus) slot
1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2242/2260/2280 cards
On-Board Connector
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
4 x SlimSAS connectors
1 x M.2 slot
2 x CPU fan headers
5 x System fan headers
1 x USB 3.0 header
1 x USB 2.0 header
1 x COM_2 header
1 x TPM header
1 x Front panel header
2 x LAN activity LED
1 x HDD back plane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Buzzer
Rear I/O Connectors
2 x USB 3.0
2 x USB 2.0
1 x VGA
1 x COM_1
2 x SFP+
1 x MLAN
1 x ID button with LED
TPM
1 x TPM header with LPC interface
Optional TPM2.0 kit: CTM000
OS Driver Supported
Windows Server 2012 R2 with Update
Windows Server 2016
Red Hat Enterprise Linux 7.4 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 11 SP4 (x64) or later
SUSE Linux Enterprise Server 12 SP3 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later
Ubuntu 16.04 LTS (x64) or later
Ubuntu 18.04 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
VMware ESXi 6.5 Update1 or later
VMware ESXi 6.7 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.4.0 or later
Citrix Hypervisor 8.0.0 or later
Server Management
Aspeed® AST2500 management controller
Avocent® MergePoint IPMI 2.0 web interface:
· Network settings
· Network security settings
· Hardware information
· Users control
· Services settings
· IPMI settings
· Sessions control
· LDAP settings
· Power control
· Fan profiles
· Voltages, fans and temperatures monitoring
· System event log
· Events management (platform events, trap settings, email settings)
· Serial Over LAN
· vKVM & vMedia (HTML5)
PSU Connector
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
Operating Properties
Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Bulk Packaging Content
10 x MZ31-AR0
10 x I/O shields
Carton dimensions: 600 x 473 x 495 mm
Ordering Information
Retail: 9MZ31AR0MR-00-1*
Bulk: 9MZ31AR0NR-00-1*
Part Numbers:
- I/O shield: 12AIO-MZ31A0-00R
- SlimSAS to SATAIII 6Gb/s cable: 25CFM-600800-A4R
- Quick start guide: 25ME0-MZ3000-Q0R
- Fan-sink: 12SF2-01A067-00R ( in option)
CPU Detailed parameters
AMD EPYC™ 7601Specifications# of CPU Cores32# of Threads64Base Clock2.2GHzMax Boost ClockUp to 3.2GHzAll Core Boost Speed2.7GHzTotal L3 Cache64MBPackageSP3Socket Count1P/2PPCI Express® VersionPCIe 3.0 x128Default TDP / TDP180WSystem MemorySystem Memory SpecificationUp to 2666MHzSystem Memory TypeDDR4Memory Channels8Per Socket Mem BW170.6 GB/sKey FeaturesWorkload AffinityAnalyticsCAE/CFD/FEAERM/SCM/CRM appsHigh capacity data mgmt (NR/RDBMS)HPC parallelFoundationProduct FamilyAMD EPYC™Product LineAMD EPYC™ 7001 SeriesPlatformServerOPN TrayPS7601BDVIHAFOPN PIBPS7601BDAFWOF
