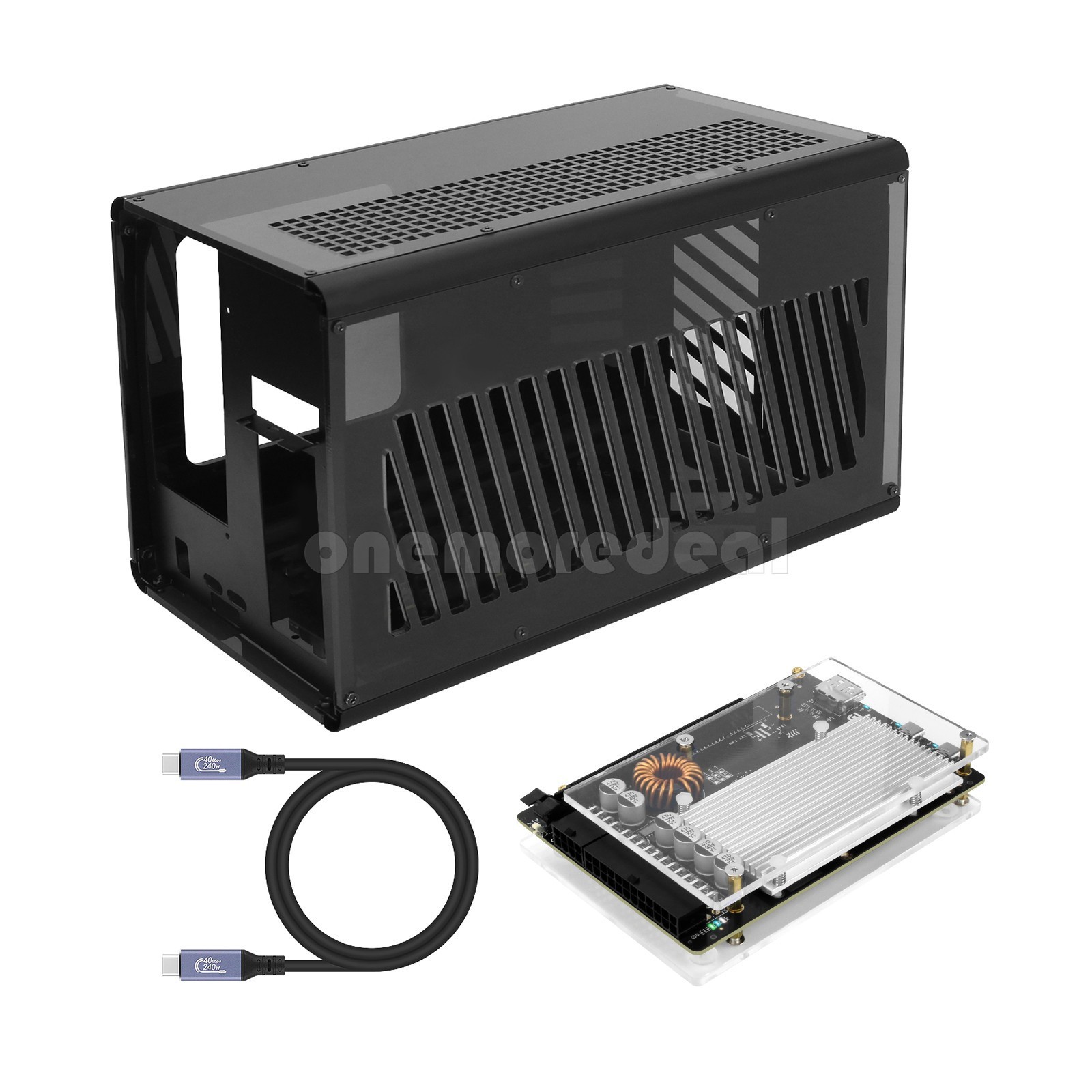

HAMGEEK BX V2.0 Graphics Card Dock + XY Dock DIY External Expansion GPU Docks 100W OutputBX Dock:
Description:
- HAMGEEK BX V2.0 is a graphics card dock with fast transfer speed. It supports 100W reverse charging and it is Thunderbolt-compatible, with strong compatibility.Advantages:
- 100W reverse charging
- Ultra-high stability and compatibility
- HAMGEEK BX V2.0 GPU dock supports cold start, that is, it is turned on in advance and connected to your computer (at this time, the docking station is in standby/sleep mode and consumes very little power). When the computer is turned on, the entire docking station will start with the computer, and Windows will automatically recognize it after entering the system, so there is no need to re-plug and unplug the cable for Thunderbolt.
- The DP on the HAMGEEK docking station supports the output of core graphics card, which is aimed at graphics cards like P40/P106/T1000/A2000 without video output interface.Application:
- AI training, deep learning and artificial intelligence
- AAA games
- Video clipsSpecifications:
- Main control chip: JHL6540
- Dimensions: 13.5 x 10 x 2cm/5.3 x 3.9 x 0.8"
- Weight: 260g/0.6lb
- Supported OS: for Window10/11, Linux (Ubuntu/Centos/redhat) and MacOS (original chips for Intel can be connected to graphics cards; M-series chips can be connected to non-graphics card devices)
- Supports cold start: Yes (When a computer is turned on, the docking station will automatically turn on and recognize the graphics card)
- Hot swap for Thunderbolt: Yes
- Reverse charging: Dual 100W (P1) for Thunderbolt + 15W (P2)
- Supported discrete graphics cards: for NVIDIA: GT210-RTX4090, Tesla Referral series; for AMD: HD7870-RX7900XTX
- Supports daisy chain: Yes
- Power supply: Powered by standard desktop power supplies such as ATX/SFX/FLEX
- Shell (GPU dock body): Acrylic
- Applicable bracket (accessory, purchased separately): ATX/SFX power supply brackets
- Compatible enclosure/case (accessory): XY Dock
- Other interfaces: One 18G-DP1.4 interface (does not occupy 22G PCIE bandwidth). Perfect use of 40G bandwidthXY Dock:
Features:
- Adopting for Intel JHL 6540 thunderbolt control chip. The transmission bandwidth can reach up to 22Gbps through PCIE3.0x4 tunnel.
- Mature data link solutions are stable and reliable. The compatibility of JHL6540 chip is much higher than that of the new generation 7440, and there is only a slight difference in overall performance. JHL7440 main controller is prone to errors in code 12 and code 43, as well as low recognition rate for reverse charging. Most graphics card docks on the market have not undergone compatibility improvements or adaptations. This issue is particularly common in handheld devices and AMD devices.
- Support software start function. It can automatically start and recognize with upstream equipment, without the need to re plug and unplug thunderbolt cables.
- 100W+15W ultra fast reverse charging.
- Ultra stable performance, with a continuous output power of 100W.
- The combination of ultra standard power supply materials breaks through traditional professional innovative design, making it easy to achieve a peak output of 160W+.
- Imported all solid state capacitor filtering, triple protection for MOSFET anti backflow, automatic power outage of PCIE slot and Type-C slot under abnormal overvoltage and undervoltage, providing full protection for your equipment.
- The internal reserved space is large enough to accommodate a 3-slot graphics card.
- A reasonably designed alloy frame that can withstand high pressure without deformation.
- Scientific design of heat dissipation ducts to avoid heat accumulation.
- There are VESA holes on the back, which can make full use of space whether hanging a small host or other devices.Package Included:
- 1 x BX Graphics Card Dock
- 1 x XY Dock
- 1 x 100cm Thunderbolt 4 Cable/60cm Thunderbolt 4 Cable/without Thunderbolt 4 Cable for optionNote:
- You need to assemble them by yourself.
