HP AiO PCs - Tea motherboard specifications

Find the detailed Tea motherboard specifications.

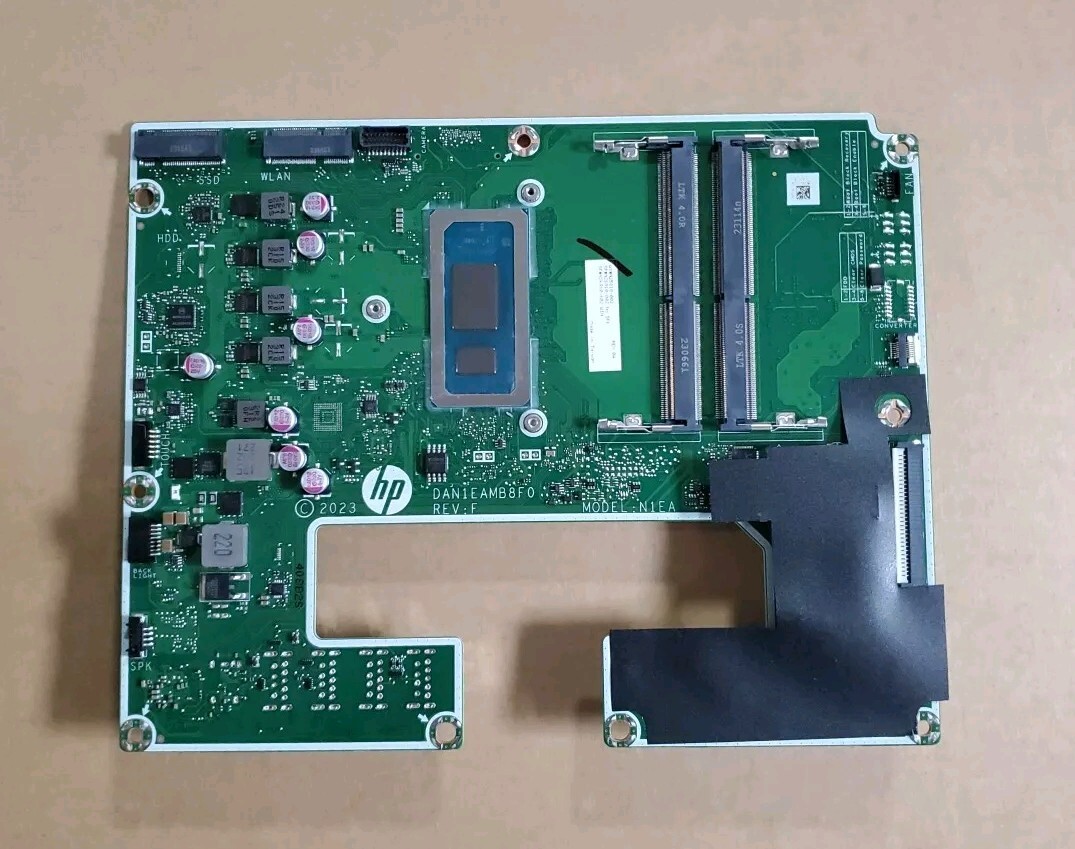

Tea specifications

Review physical dimensions, processor model, memory information, connectivity types, video and audio specifications, expansion slots, and I/O ports of the Tea motherboard.

Motherboard description

• HP name: Tea

• SSID: 8B4D

Form Factor and dimensions

• Customized

• Dimensions:19.8 x 15.6 cm(7.79 x 6.14 in)

Chipset

• N/A

Processor upgrade information

• TDP: Up to 15 W

• Socket type: BGA

• Tea motherboard supports the following processor upgrades:

Intel® Core™i7-1355U (up to 5.0 GHz with Intel® Turbo Boost Technology, 12 MB L3 cache, 10 cores, 12 threads)

15 W

Intel® Core™i5-1335U (up to 4.6 GHz with Intel® Turbo Boost Technology, 12 MB L3 cache, 10 cores, 12 threads)

15 W

Intel® Core™i3-1315U (up to 4.5 GHz with Intel® Turbo Boost Technology, 10 MB L3 cache, 6 cores, 8 threads)

15 W

Memory upgrade information

• Dual Channel Memory architecture

• (2) DDR4 SODIMM slots

• Supports up to PC5-25600 (DDR4-3200)

• Supports up to 64 GB (unbuffered) with two 32 GB DIMMs on 64-bit computers

Integrated graphics

• Intel Xe Graphics

• Intel® UHD Graphics

NOTE:

Intel® Iris® Xe Graphics capabilities require that the system must be configured with Intel® Core i5 or i7 processors and Dual Channel Memory.

Audio

• Audio Codec: Realtek ALC3247

• Audio jack presence detection

Ethernet LAN: 1000BASE-T

• Technology: Realtek RTL8111GSH

• Data transfer speeds: up to 10/100/1000 Mb/s

• Transmission standards: 1000BASE-T Ethernet

Expansion slots

• (1) M.2 socket 1, key A, type 2230 for WLAN

• (1) M.2 socket 3, key M, type 2280 for SSD (PCIe x4 Gen 4 .0)

Rear I/O ports

• (1) HDMI v1.4 output port

• (1) RJ-45 Ethernet port

• (1) Headphone/microphone combo port

• (1) USB 3.2 Gen 1.0 Type-C® port (5 Gbps signaling rate)

• (2) USB 3.2 Gen 1.0 Type-A port (5 Gbps signaling rate)

• (2) USB 2.0 Type-A ports
