HP AiO PCs - Tea motherboard specifications

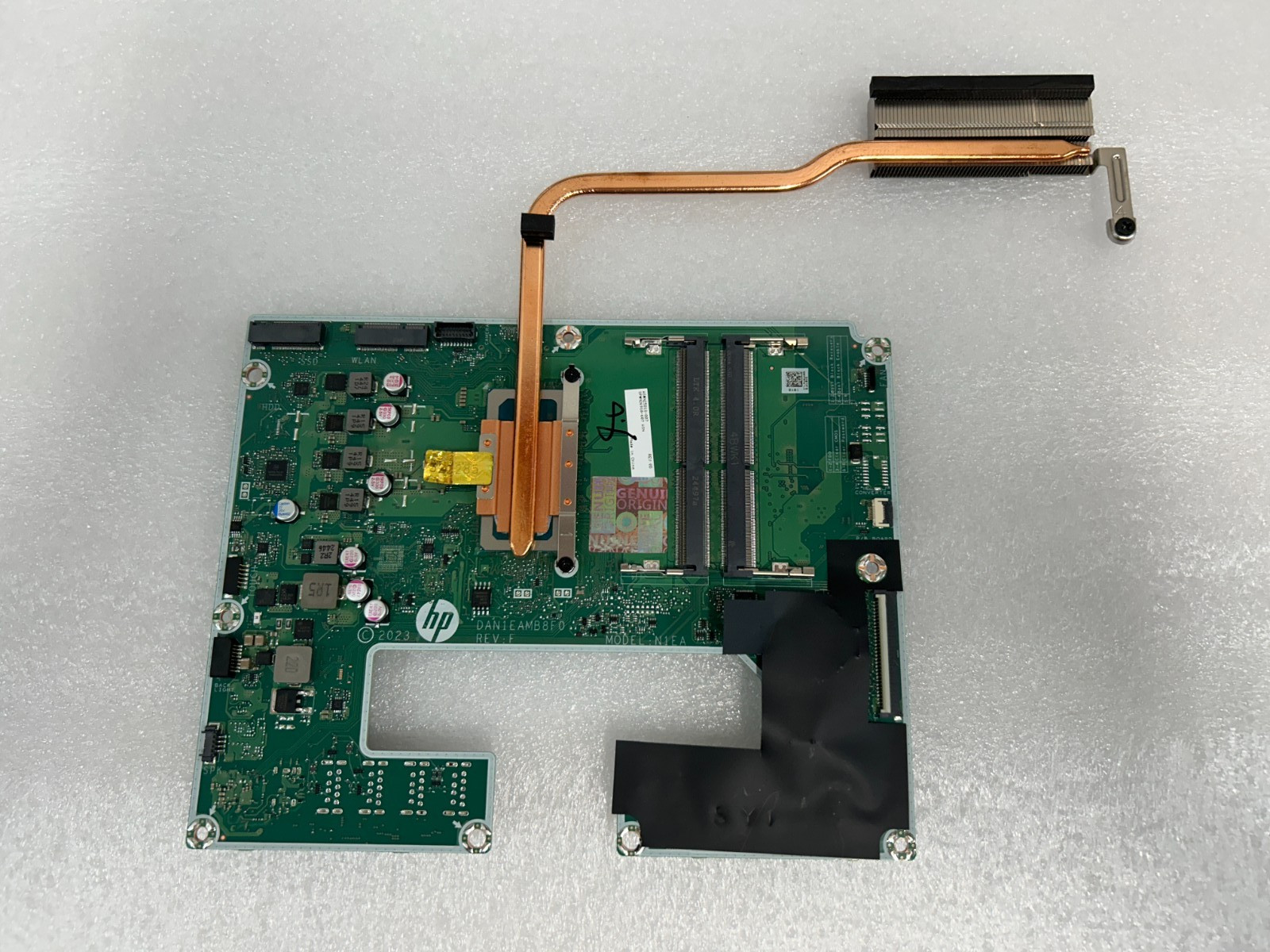

HP 24-CR 27-CR Tea Motherboard Intel i5-1335U DAN1EAMB8F0 N25818-007 N26910-607
Find the detailed Tea motherboard specifications.
Tea specifications
Review physical dimensions, processor model, memory information, connectivity types, video and audio specifications, expansion slots, and I/O ports of the Tea motherboard.
Motherboard description
Form Factor and dimensions
Chipset
Processor upgrade information
Intel® Core™ i7-1355U (up to 5.0 GHz with Intel® Turbo Boost Technology, 12 MB L3 cache, 10 cores, 12 threads)
15 W
Intel® Core™ i5-1335U (up to 4.6 GHz with Intel® Turbo Boost Technology, 12 MB L3 cache, 10 cores, 12 threads)
15 W
Intel® Core™ i3-1315U (up to 4.5 GHz with Intel® Turbo Boost Technology, 10 MB L3 cache, 6 cores, 8 threads)
15 W
Memory upgrade information
Dual Channel Memory architecture
(2) DDR4 SODIMM slots
Supports up to PC5-25600 (DDR4-3200)
Supports up to 64 GB (unbuffered) with two 32 GB DIMMs on 64-bit computers
Integrated graphics
Intel Xe Graphics
Intel® UHD Graphics
NOTE:
Intel® Iris® Xe Graphics capabilities require that the system must be configured with Intel® Core i5 or i7 processors and Dual Channel Memory.
Audio
Ethernet LAN: 1000BASE-T
Technology: Realtek RTL8111GSH
Data transfer speeds: up to 10/100/1000 Mb/s
Transmission standards: 1000BASE-T Ethernet
Expansion slots
(1) M.2 socket 1, key A, type 2230 for WLAN
(1) M.2 socket 3, key M, type 2280 for SSD (PCIe x4 Gen 4 .0)
Rear I/O ports
(1) HDMI v1.4 output port
(1) RJ-45 Ethernet port
(1) Headphone/microphone combo port
(1) USB 3.2 Gen 1.0 Type-C® port (5 Gbps signaling rate)
(2) USB 3.2 Gen 1.0 Type-A port (5 Gbps signaling rate)
(2) USB 2.0 Type-A ports
Come With
- Complete Main Board
- Heat Sink
Local pick up available in New York City
Warranty
Buyer must verify model compatibility prior to offerding or purchasing.
No Warranty for any items marked “Parts or Repair” (No Working).
Most our products are backed by 14 days warranty against Non functional or defective merchandise.
Warranty period starts the day you receive the item.
Most products we sell are fully tested in house by our certified and skilled technicians and are guaranteed to work.
If the product you receive is not as advertised by us, we will send replacement or refund for the full amount.
As we use different carriers for shipping, if you received your product in defective and/or damaged condition, please email us.
Once we have had the chance to determine the cause of damage we will replace the item or issue full refund.
All shipping damaged products require that you contact us before shipping the product back to us.
Failure to contact us before shipping will make the warranty null and void.
Returns and Refunds
NO Return Accepted for all items marked “For Parts or Repair” (No Working).
No returns are accepted once the 14 day warranty period has expired.
A full refund will be issued for any defective, damaged, or misrepresented product within 7 days of receiving them back at our place.
Please don't leave a negative response before giving us a opportunity to resolve the issue.
If you have any problems or concerns with the product you have received please email us and give us an opportunity to respond before returning/shipping the product back to us.
A 25% restocking fee will be taken off from your refund along with shipping charges for any unwanted or wrong purchased items you send back to us.
Shipping and Handling
We will ship your purchase in 1 business day after payment is received this does not include weekend nor holidays.
We use USPS First Class/Priority.
We take combine shipments.
Your tracking number will post automatically.
Local pick up Accept in New York City.
Customer Service
We welcome your questions. Feel free to contact us if you have any questions about your order or if you are not happy with your purchase
please don't leave Negative response. Give us a chance to resolve any issues you may have with your order. We answer emails 24 hours from the
time we receive it sometimes sooner. Emails sent over the weekend will be answer on Monday.
