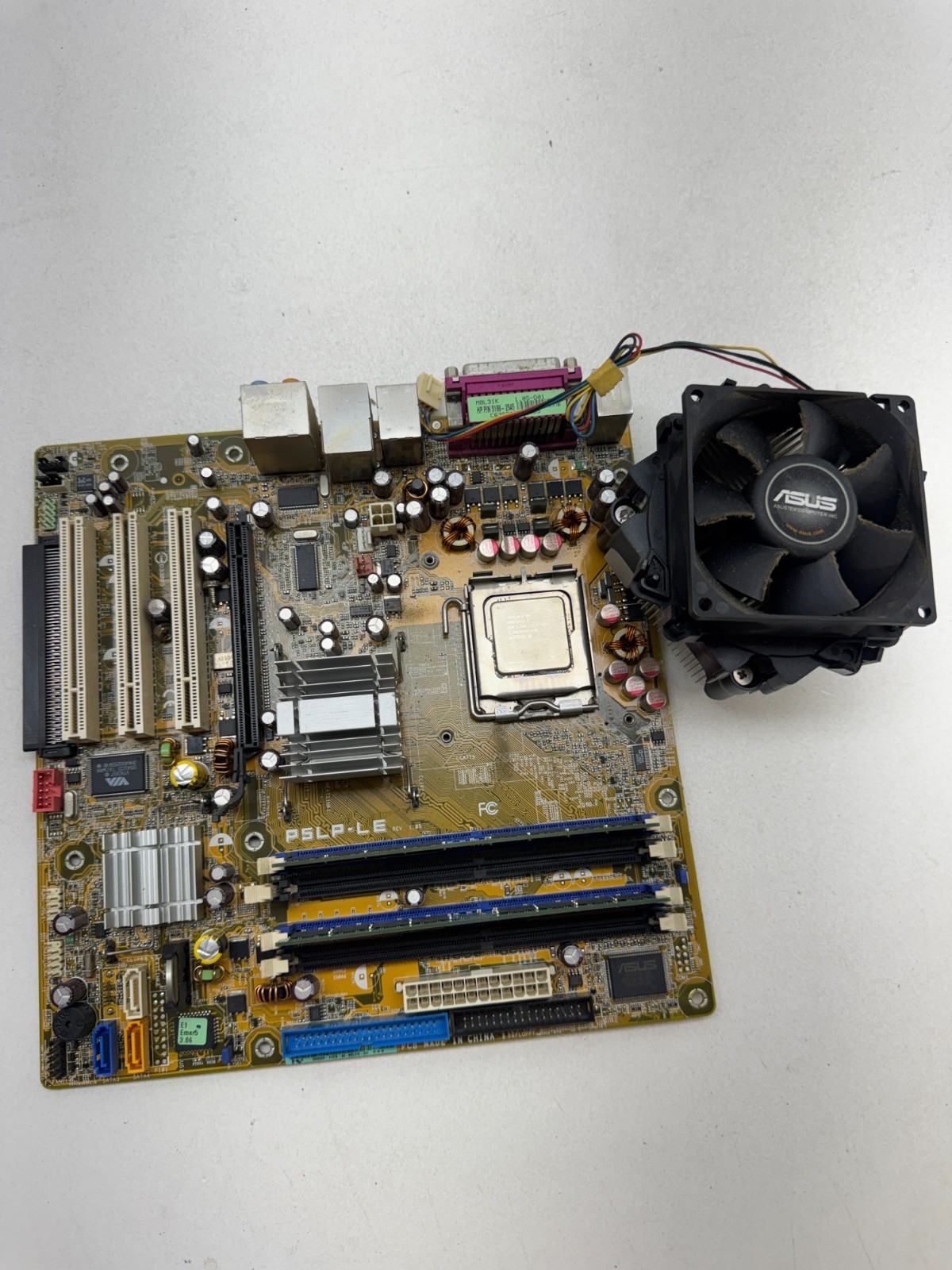

HP 5188-2545 ASUS P5LP-LE LGA 775 MicroATX Motherboard ComboIncludes Intel Pentium D 930 3.00GHz Dual-Core CPU, 2GB DDR2 RAM & ASUS Cooler
Vintage desktop hardware combo pulled from an HP Pavilion Media Center PC. Features the ASUS P5LP-LE (Rev 1.05 / Emery) MicroATX motherboard paired with an Intel dual-core Pentium D processor and matched Micron DDR2 memory. Equipped with standard 24-pin ATX and 4-pin CPU power connections for standard case and power supply compatibility.
Technical Specifications:- Motherboard Brand: ASUS for HP / Compaq- Model: P5LP-LE REV 1.05 (Emery platform)- HP Part Number: 5188-2545- CPU Socket: LGA 775 (Socket T)- Chipset: Intel 945P / ICH7- Form Factor: MicroATX (uATX) with standard 24-pin ATX power connector
Processor Specifications:- Model: Intel Pentium D 930- S-Spec: SL94R- Cores: 2 Cores / 2 Threads- Clock Frequency: 3.00 GHz- L2 Cache: 4 MB (2 x 2 MB)- Front Side Bus (FSB): 800 MHz- TDP: 95W
Memory Configuration:- Installed Memory: 2GB (2 x 1GB Micron PC2-4200U DDR2-533 CL4, MT16HTF12864AY-53EB1)- Total Memory Slots: 4 x 240-pin DDR2 DIMM slots (Dual Channel supported)
Expansion & Storage:- 1 x PCI Express x16 Slot (Dedicated graphics card required; no onboard video port)- 3 x Standard 32-bit PCI Slots- 4 x Internal SATA 3.0 Gbps ports- 1 x 40-pin IDE / PATA connector- 1 x 34-pin Floppy Drive connector
Rear I/O Ports:- 2 x PS/2 Ports (Keyboard and Mouse)- 2 x Digital Coaxial S/PDIF Audio Ports (In / Out)- 1 x DB-25 Parallel (LPT) Printer Port- 4 x USB 2.0 Ports- 1 x RJ-45 Fast Ethernet Network Port- 6 x 3.5mm 8-Channel Audio Jacks
untested. The physical condition is exactly as shown in the provided photographs
