Item Overview

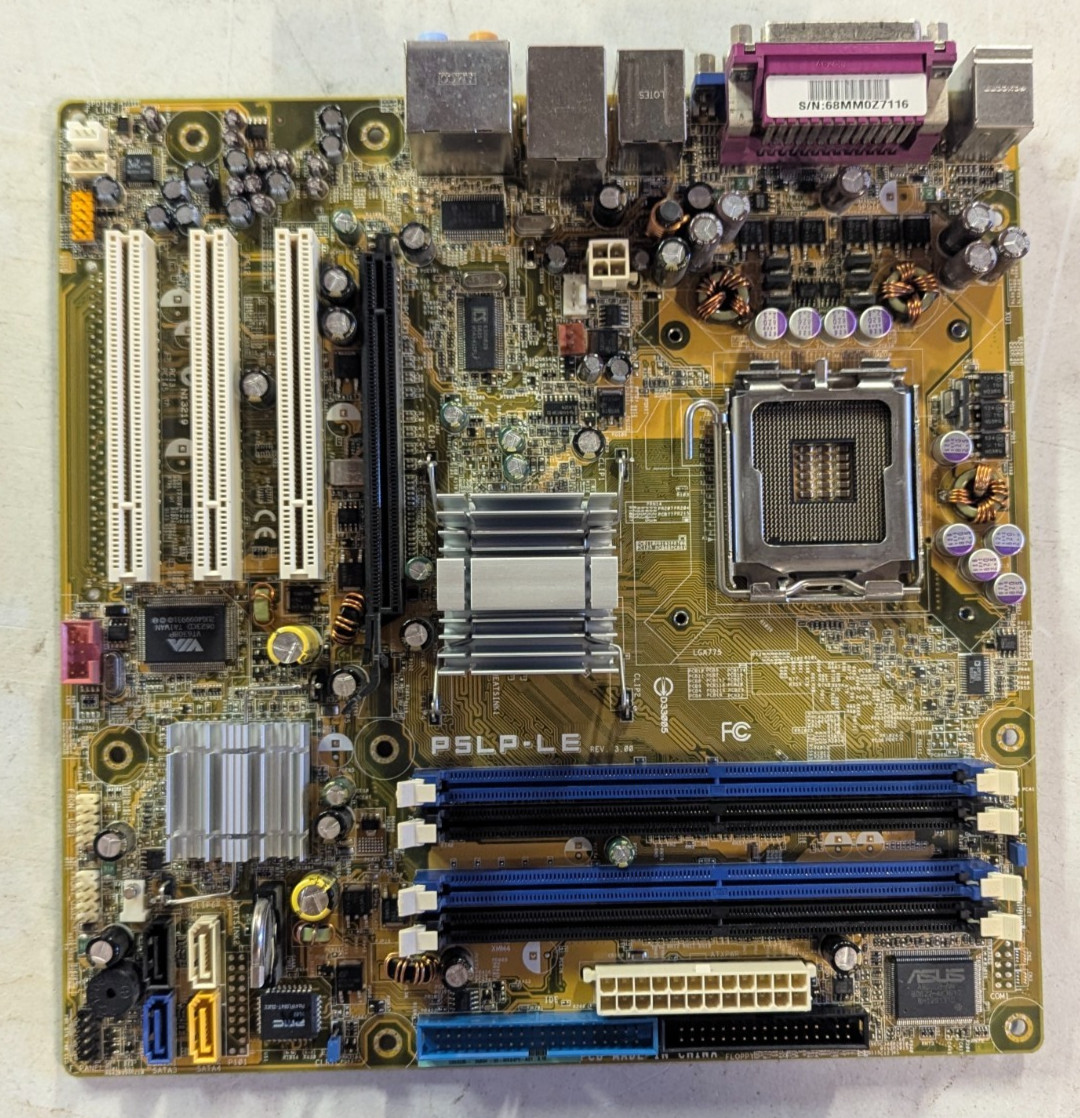

HP OEM desktop motherboard manufactured by ASUS and identified by the current-board markings P5LP-LE, Rev. 3.00, and HP P/N 5188-5406. This listing includes only the pictured bare motherboard and its attached onboard Brand: HP
Motherboard Manufacturer: ASUS
Board Model: P5LP-LE
HP Part Number: 5188-5406
PCB Revision: Rev. 3.00
Board Code: MBB4P0
Processor Socket: LGA 775/Socket T
Compatible CPU Brand: Intel
Form Factor: MicroATX
Memory Type: DDR2 SDRAM
Memory Sockets: Four desktop DIMM sockets
Expansion Slots: One PCI Express x16 slot and three PCI slots
Storage Connectors: Four Serial ATA connectors and one 40-pin IDE/PATA connector
Power Connectors: One 24-pin ATX connector and one 4-pin processor-power connector
Item Dimensions: 9.5 x 9.5 x 1.5 in
Country of Origin: Not Specified
Visible Markings
Board Marking: P5LP-LE
PCB Revision Marking: REV. 3.00
Board Code: MBB4P0
Board Code Revision: 3.00-A01
HP Label: HP P/N: 5188-5406
Back Label Code: C68S035-00402
Front Barcode Code: C68S035-00634-60-MBB4P0-A01
Front Label Revision: 3.15
Serial: S/N:68MM0Z7116
Socket Marking: LGA775
PCB Country Marking: PCB MADE IN CHINA
ASUS Controller Marking: A8000B-MW
ASUS Controller Codes: B0622-AK3610 / 8H41261310
Flash IC Marking: PMC Pm49FL004T-33JCE
IEEE 1394 Controller Marking: VIA VT6308P
VIA Controller Codes: 0623CD TAIWAN / 2UG4009931C
Network Controller Marking: EP82562GT
Connector Maker Marking: FOXCONN A6288
Connector Details
Rear Legacy Input: Two PS/2 ports
Rear Parallel: One DB-25 connector
Rear Digital Audio: Two coaxial RCA-style connectors
Rear Video: One VGA connector
Rear IEEE 1394: One FireWire connector
Rear USB: Four USB Type-A connectors
Rear Network: One RJ-45 Ethernet connector
Rear Analog Audio: Six 3.5 mm audio jacks
Memory: Four desktop DIMM sockets
Expansion: One PCI Express x16 slot and three PCI slots
Storage: Four Serial ATA connectors and one 40-pin IDE/PATA connector
Main Power: One 24-pin ATX connector
Processor Power: One 4-pin connector
Included
Included Item: One HP 5188-5406 ASUS P5LP-LE Rev. 3.00 bare motherboard
Attached Components: Pictured heatsinks, LGA775 socket retention hardware, rear ports, CMOS battery, connectors and onboard components
Backside Hardware: Pictured CPU support plate
Not Included
Processor: Not included
Memory: Not included
CPU Cooler or Fan: Not included
I/O Shield: Not included
CPU Socket Protective Cap: Not shown
Cables: Not included
Chassis: Not included
Additional Accessories: Anything not specifically pictured or stated as included
Visual Inspection / Condition
Cleaned and visually inspected. The photographed surfaces show light dust residue, handling marks, minor surface scuffs, mounting-hole wear, and age-related tarnish and spotting on portions of the rear I/O metalwork. The socket, memory sockets, expansion slots, heatsinks, power connectors, storage connectors, rear ports and backside support plate are physically present. No obvious major PCB fracture or extensive burned area is visible in the supplied photographs. CPU-socket contact alignment has not been mechanically verified.
Important Information
No powered testing has been performed. Processor recognition, memory operation, video output, audio, Ethernet, USB, IEEE 1394, Serial ATA, IDE/PATA, expansion-slot operation, firmware access, fan control, CMOS battery condition and other electronic functions have not been verified. Sold as-is, and the item may be non-functional. Please review every photograph and verify HP P/N 5188-5406, P5LP-LE Rev. 3.00, connector arrangement, dimensions, required components, firmware support, chassis fit and overall compatibility before purchase.
