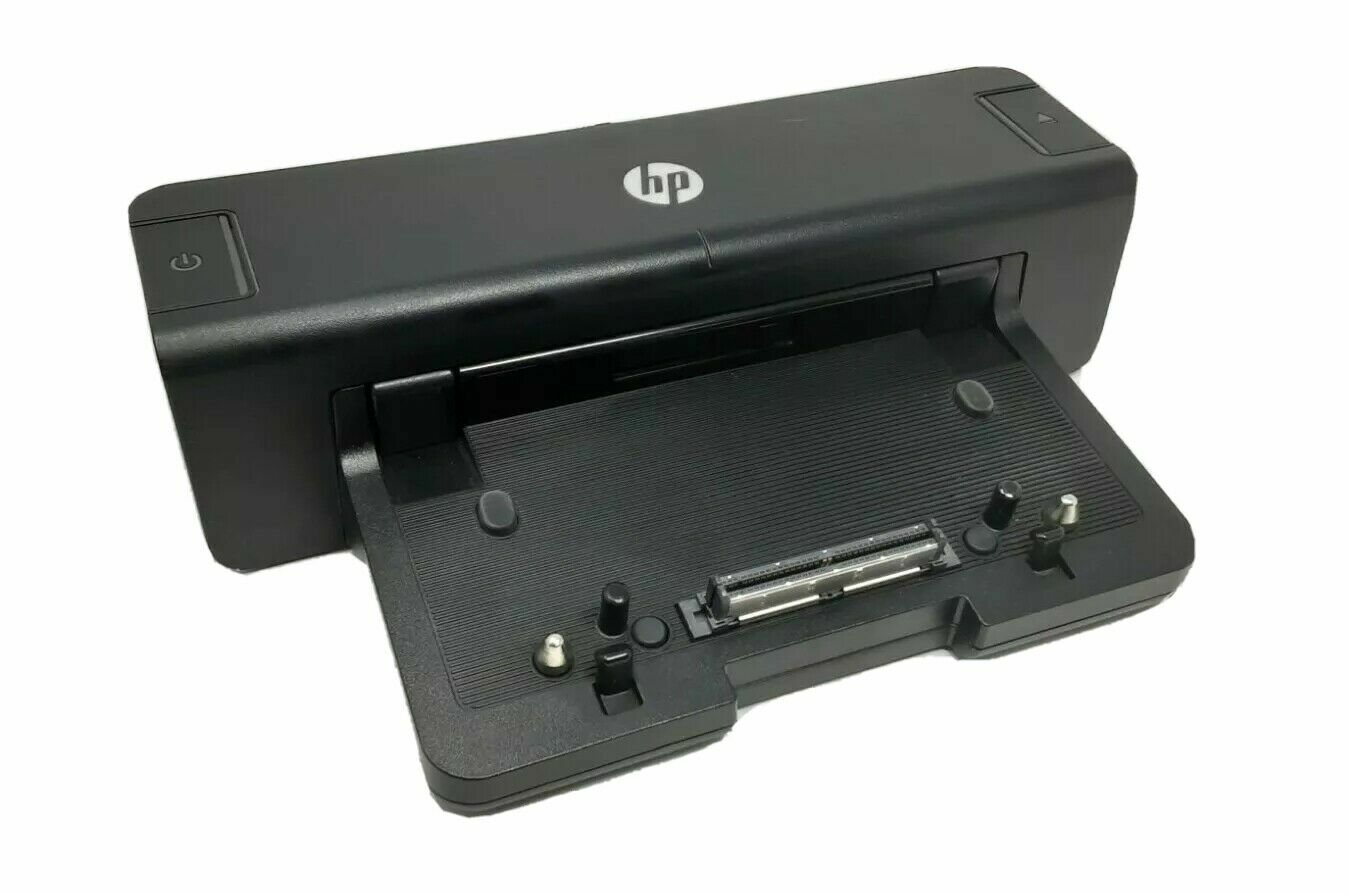

Docking Station HP Compaq 575324-002 VB042AV VB044AV Elitebook Probook DockCompatible With:
HP Mt40 Mobile Thin Client, 6360t Mobile Thin Client
HP Mini 5102
HP Compaq EliteBook 2170p, 8440p, 8440w, 8460p, 8460w, 8470p, 8470w, 8540p, 8560p, 8540w, 8570p, 8740w
HP Compaq ProBook 640 G1, 645 G1, 650 G1, 6360b, 6440b, 6445b, 6450b, 6455b, 6460b, 6465b, 6470b, 6475b, 6540b, 6545b, 6550b, 6555b, 6560b, 6565b, 6570bThe laptop models listed below are compatible with this docking station but will require a 230W (19.5V 11.8A) AC Adapter to function.HP ZBook 15, 15 G2, 17, 17 G2
HP Compaq Elitebook 8760w, 8770W, 8560w, 8570wHP Compaq P/Ns: 575324-001 [90w], VB041AA [90w], VB042AV [90w], VB041ET [90w], VB043AA [230w], VB044AV [230w]
Assy No: 575324-001, 575324-002
SPS No: 581597-001Onboard Ports: 1x 3.5mm Audio-in (Microphone / Line-in), 1x 3.5mm Audio-out (Headphones / Speakers), 2x PS/2 (Mouse & Keyboard), 1x Serial Port, 1x Parallel Port, 1x VGA, 1x DVI, 1x DisplayPort 3x USB 2.0, 1x USB 2.0+, 1x Ethernet / LAN, 1x Integrated (Kensington) cable lock slot, 1x HP Docking Station Cable Lock slotDisplayPort 1.1: 3840 x 2160 / 30 Hz and 2560 x 1600 / 60 Hz
Can support dual monitors.No AC adapter included. Requires either 90w (19v 4.74a, HP P/N: 608428-001, HP SPS: 609940-001) or 230w (19.5v 11.8a) SMART tipped AC adapter.
