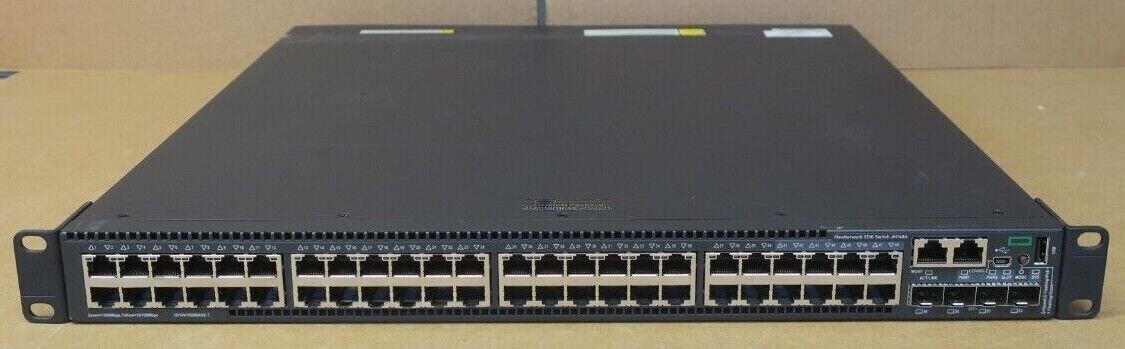

HP FlexNetwork 5510 48x 1GbE PoE+ + 4x 10GbE SFP+ Port HI 1-Slot Switch JH148A
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
HP FlexNetwork 5510 48x 1GbE PoE+ + 4x 10GbE SFP+ Port HI 1-Slot Switch JH148A
Price: GB $690.00
HP FlexNetwork 5510 48x 1GbE PoE+ + 4x 10GbE SFP+ Port HI 1-Slot Switch JH148AModel:5510P/N:JH148A
In Good Condition, Full Working OrderTestedIncludes Rack Mount Ears
Included
  • 1 xHP FlexNetwork 5510 48x 1GbE PoE+ + 4x 10GbE SFP+ Port HI 1-Slot Switch JH148A
  • 1 x HP 720W Power Supply JG544APSR720-56A
  • 2 x HP Fan Modules X722
Description:
The HPE FlexNetwork 5510 HI Switch Series delivers outstanding resiliency, security, and multiservice support for medium and large enterprise networks. JH148A supports 48 10/100/1000Base-T autosensing Ethernet PoE ports and 4 SFP+ FlexNetwork 5510 48G PoE+ 4SFP+ HI 1-slot Switch
  • I/O ports and slots:
    • 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)
    • Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; Ports 1 - 8 support MACSec
    • 4 SFP+ 10GbE ports
    • 1 port expansion module slot
    • Supports a maximum of 6 SFP+ ports or 2 1/10GBASE-T ports or 2 40GbE ports, with optional module
  • Additional ports and slots:
    • 1 dual-personality (RJ-45 or USB micro-B) serial console port
    • 1 RJ-45 out-of-band management port
    • 1 USB Mb Latency:< 5 μs
    • 10 Gbps Latency:< 3 μs
    • Throughput:up to 250 Mp/s
    • Routing/Switching capacity:336 Gb/s
    • Routing table size:
      • IPv4 : 32768 entries
      • IPv6 : 16384 entries
    • MAC address table size:32768 entries
    Physical specifications
    • Dimensions (W x D x H):43.99 x 46 x 4.37 cm (17.32 x 18.11 x 1.72 in)
    • Weight:12.5 kg (27.56 lb)
    Electrical specifications
    • Frequency:50/60 Hz
    • Maximum heat dissipation:2286 BTU/hr (2411.73 kJ/hr), Heat dissipation ranges from 256 BTU/hr to 6142 BTU/hr, depending on power supply configuration
    • Voltage:100 - 240 V ac, rated (90 - 264 Vac, max) (depending on power supply chosen)
    • Maximum power rating:670 W
    • Idle power:75 W
    • PoE power:1440 W PoE+
    Environmental specifications
    • Operating temperature:0°C to 45°C (32°F to 113°F)
    • Operating relative humidity:10% to 90%, temperature:-40°C to 70°C (-40°F to 158°F)
    • Nonoperating/Storage relative humidity:5% to 95%, fan: 57.6 dB, High-speed fan: 66.9 dB
    • ISO 7779
    Safety and emissions
    Safety:
    • UL 60950-1
    • EN 60825-1 Safety of Laser Products-Part 1
    • EN 60825-2 Safety of Laser Products-Part 2
    • IEC 60950-1
    • EN 60950-1
    • CAN/CSA-C22.2 No. 60950-1
    • FDA 21 CFR Subchapter J
    • ROHS Compliance
    • AS/NZS 60950-1
    • GB 4943 EAC (EurAsian Conformity Directive 2004/108/EC
    • FCC (CFR 47, Part 15) Class A
    • EN 61000-4-11:2004
    • ANSI C63.4-2009
    • EN 61000-3-3:2008
    • VCCI V-3/2012.04
    • EN 61000-4-3:2006
    • EN 61000-4-4:2012; EN 61000-4-5:2006
    • EN 61000-4-6:2009
    • CISPR 22:2008 Class A
    • EN 55022:2010 Class A
    • EN 61000-4-29: 2000
    • CISPR 24:2010
    • EN 300 386 V1.6.1
    • VCCI V-3/2013.04 Class A
    Immunity:
    • Generic: EN 55024
    • ESD: EN300 386
    Management:
    • IMC - Intelligent Management Center
    • Command-line interface
    • Web browser
    • SNMP manager
    Boot Log:

    <HPE>show version
    HPE Comware Software, Version 7.1.070, Release 3506P06-US
    Copyright (c) 2010-2020 Hewlett Packard Enterprise Development LP
    HPE 5510 48G PoE+ 4SFP+ HI 1-slot Switch JH148A uptime is 0 weeks, 0 days, 0 hours, 3 minutes
    Last reboot reason : Cold rebootBoot image: image version: 7.1.070-US, Release 3506P06-US
    Compiled Jun 05 2020 11:00:00
    System image: image version: 7.1.070, Release 3506P06-US
    Compiled Jun 05 2020 11:00:00
    Feature image(s) version: 7.1.070
    Compiled Jun 05 2020 11:00:00
    Slot 2:
    Uptime is 0 weeks,0 days,0 hours,3 minutes
    5510 48G PoE+ 4SFP+ HI 1-slot Switch with 2 Processor
    BOARD TYPE:5510 48G PoE+ 4SFP+ HI 1-slot Switch
    DRAM:1984M bytes
    FLASH:512M bytes
    PCB 1 Version:VER.B
    Bootrom Version:127
    CPLD 1 Version:003
    Release Version:HPE 5510 48G PoE+ 4SFP+ HI 1-slot Switch JH148A-3506P06-U
    Patch Version:None
    Reboot Cause:ColdReboot
    [SubSlot 0] 48GE+4SFP Plus
    <HPE>show device manuinfo
    Slot 2 CPU 0:
    DEVICE_NAME: 5510 48G PoE+ 4SFP+ HI JH148A
    DEVICE_SERIAL_NUMBER : CN81H111B6
    MAC_ADDRESS: 943F-C2E3-8C4E
    MANUFACTURING_DATE: 2018-02-13
    VENDOR_NAME: HPE
    Fan 1:
    Failed to display the manufacture information of the specified fan.
    Fan 2:
    Failed to display the manufacture information of the specified fan.
    Power 1:
    DEVICE_NAME: HP X362 720W AC PoE Power Supply JG544A
    DEVICE_SERIAL_NUMBER : CN82G1R17G
    MANUFACTURING_DATE: 2018-02-22
    VENDOR_NAME: HPE<HPE>show license
    Slot 2:
    No license information to display.
